| PRODUCT DETAILS | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | |
| | | | | | | | | | | | |
| PRODUCT SPECIFICATIONS | | | | | | | | | | | |
 | | | | | | | | | | | |

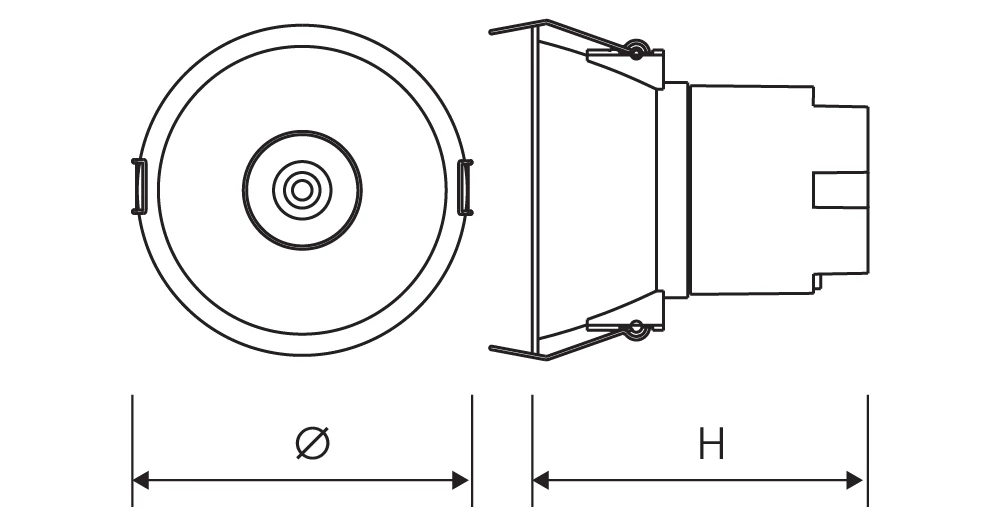

| Model | Dimension
ØxH (mm) | Power
(W) | Voltage (V) | Power factor | Luminous flux
(lm) | Luminous efficacy
(lm/W) | CCT (K) | CRI (Ra) | Beam angle (°) | Cut out Øc
(mm) | Lifespan
(hrs) |
| AT45 55/12W | 62x67 | 12 | 120/220÷240/100÷277 | 0.5/0.9 | 1080 | 90 | 3000/4000/5000/5700/6500 | 90 | 24 | 55 | 30,000 |
| AT45 65/12W | 72x70 | 12 | 120/220÷240/100÷277 | 0.5/0.9 | 1080 | 90 | 3000/4000/5000/5700/6500 | 90 | 24 | 65 | 30,000 |
| AT45 75/15W | 80x72 | 15 | 120/220÷240/100÷277 | 0.5/0.9 | 1290 | 86 | 3000/4000/5000/5700/6500 | 90 | 24 | 75 | 30,000 |
Capacity: 11.2 million pieces per year | | | | | | | | | | | |
| Customizable: Power, Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/5000/5700/6500K), CRI (90/Sunlike), Driver (non isolation/isolation/Dim-Triac), lifespan, etc. | | | | | | | | | | | |

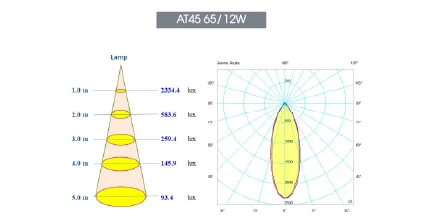

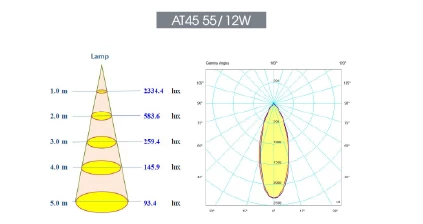

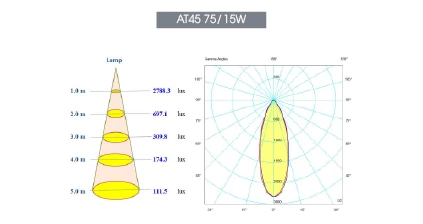

| LUMINOUS INTENSITY DISTRIBUTION | | | | | | | | | | | |
| | | | | | | | | | | |
| | | | | | | | | | | | |

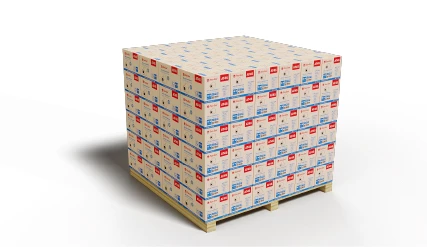

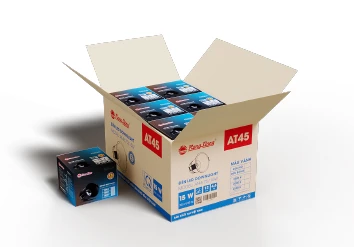

| PACKING AND TRANSPORTATION | | | | | | | | | | | |
| | | | | | | | | | | |
| Type of lamps | Quantity in master box (pcs) | Estimated quantity/20'DC (pcs) | Estimated quantity/40'HC (pcs) | | | | | | | | |
| AT45 55/12W | 12 | 32 856 | 75 444 | | | | | | | | |
| AT45 65/12W | 12 | 30 552 | 70 152 | | | | | | | | |
| AT45 75/15W | 12 | 27 756 | 63 756 | | | | | | | | |
| Customizable according to customer’s request | | | | | | | | |
 | | | | | | | | | | | |
| Exported markets: South Korea, EU, etc. | | | | | | | | | | | |
