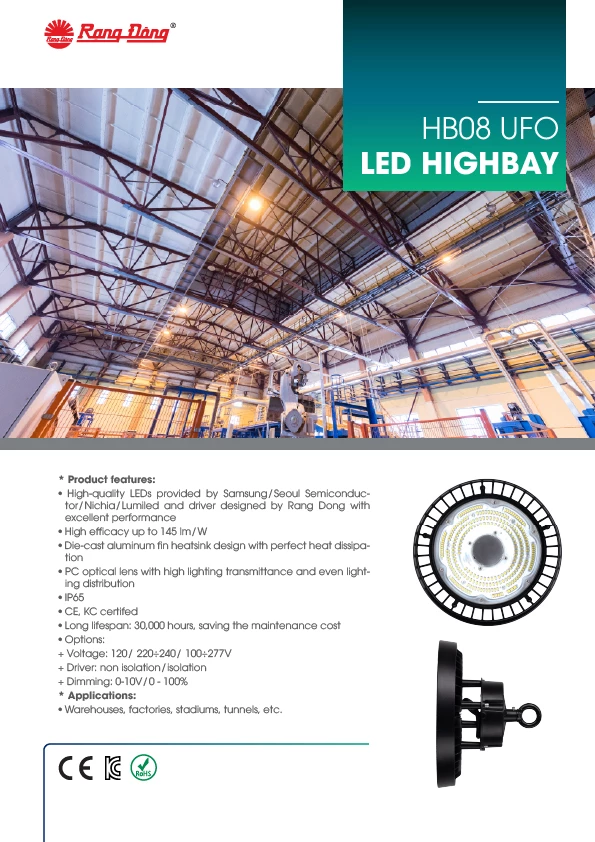

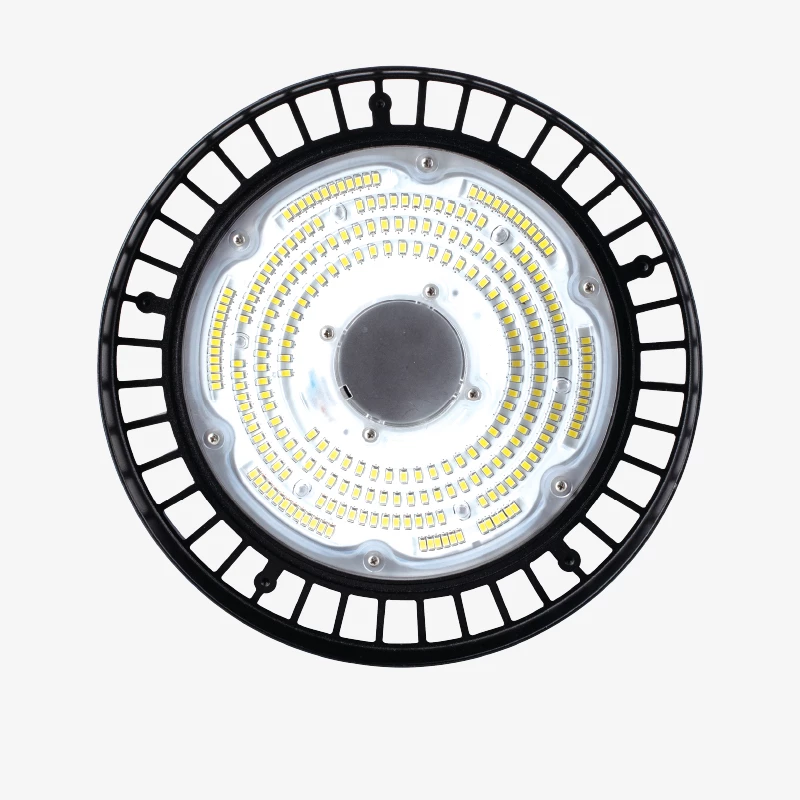

High-quality LEDs provided by Samsung/Seoul Semiconductor/Nichia/Lumiled and driver designed by Rang Dong with excellent
High efficacy up to 145 lm/W

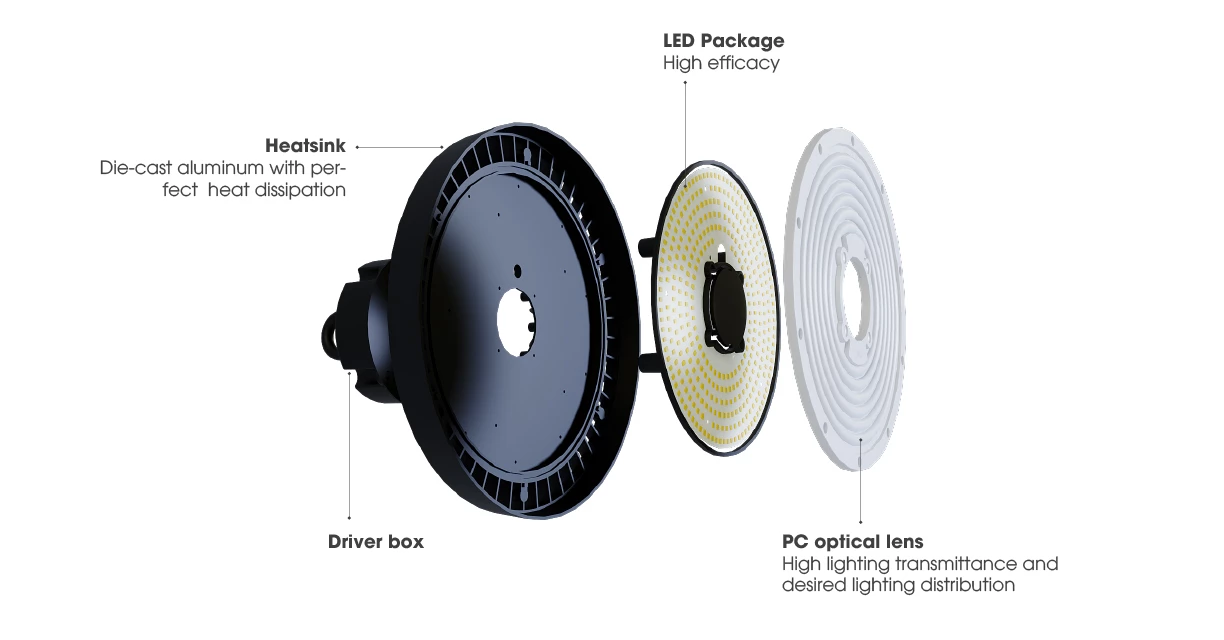

Die-cast aluminum fin heatsink design with perfect heat dissipation
PC optical lens with high lighting transmittance and even lighting distribution
IP65
CE, KC certifed
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
Voltage: 120/ 220÷240/ 100÷277V
Driver: non isolation/isolation
Dimming: 0-10V/0 - 100%
APPLICATIONS

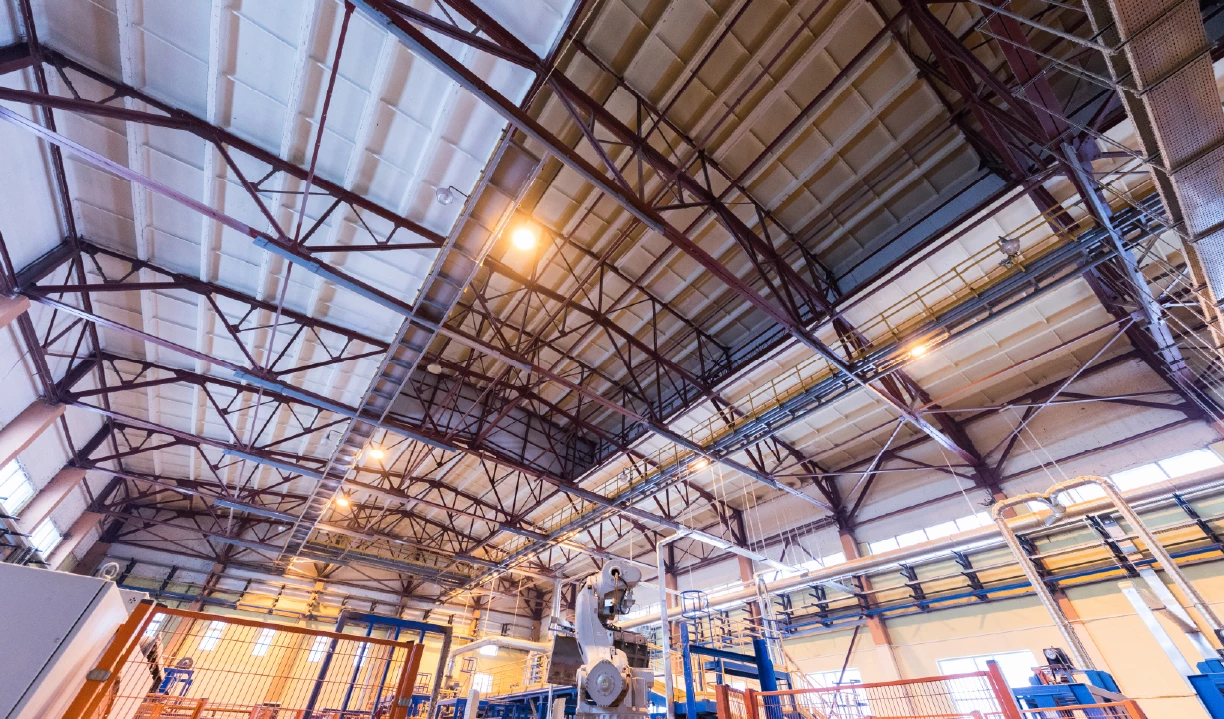

Warehouses, factories, stadiums, tunnels, etc.
PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

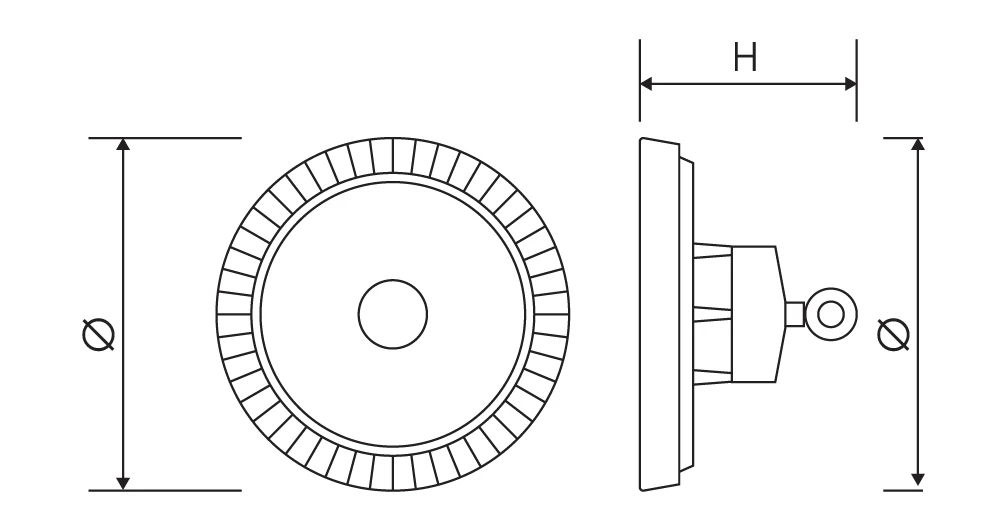

Dimension ØxH (mm)
Power (W)
Voltage (V)
Power factor
Luminous flux (lm)
Luminous efficacy (lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Lifespan (hrs)
HB08 255/100W
255x180
100
120/220÷240/100÷277
0.95
14000/14500
140/145
3000/4000/6500
80
90
30,000
HB08 300/150W
300x180
150
120/220÷240/100÷277
0.95
21000/21750
140/145
3000/4000/6500
80
90
30,000
HB08 300/200W
300x180
200
120/220÷240/100÷277
0.95
28000/29000
140/145
3000/4000/6500
80
90
30,000
Capacity: 2.0 million pieces per year
Customizable: Power (100/150/200/250W), Voltage (120/220÷240/100÷277), lm/W (up to 145), CCT (3000/4000/6500K), Driver (non isolation/ isolation), lifespan (30,000/ 50,000 hrs), etc.
