Rang Dong’s Magnetic Linear Track Light Offers Great Flexibility

Modern interior lighting increasingly demands both flexibility and visual quality, or  the ability to redirect, reposition, and restyle a lighting setup without structural changes to the space. The magnetic linear track light, model RLT02, from Rang Dong, Vietnam’s leading manufacturer of LED products and smart lighting solution provider, is designed to meet such a demand, combining the clean aesthetics of a linear LED bar with the practicality of a magnetic rail mounting system. This article introduces the light's specifications, key features and recommended applications.

Model RLT02 is a linear LED bar light with a compact body measuring 375 mm in length, 34 mm in width, and 31.2 mm in height. It operates on a 48 V DC supply drawn from a compatible magnetic rail system, consuming 10 watts of power. A 20-watt variant is also available for larger spaces requiring greater luminous output.

Accessories to Rang Dong’s magnetic linear track light allow users to design custom rail configurations to fit any ceiling layout.

The fixture produces a luminous flux of 650 lm at 3,000 K, 730 lm at 4,000 K and 750 lm at 6,500 K, with all three color temperature options available for selection based on the atmosphere of the target space.

Its color rendering index (CRI) reaches 90, placing the model in the category of high-fidelity light sources where accurate surface and material color representation is a practical priority.

The rated service life stands at 25,000 hours. The fixture operates across an ambient temperature range of -10°C to 40°C (50-104°F) and at humidity levels up to 90 percent, confirming its suitability for most standard indoor environments.

Exceptional features

The most practical advantage of model RLT02 lies in its magnetic mounting mechanism.

Rather than requiring clips, screws, or wiring work at the fixture level, the light attaches directly to the magnetic rail through a snap-lock connection. It means that the fixture can be removed, repositioned along the rail, or replaced with a different light type without any tools and without interrupting the rest of the system.

For interior designers, retailers or homeowners who expect to rearrange their lighting layouts over time, this mechanism represents a meaningful reduction in both effort and cost.

Rang Dong's RLT02 magnetic linear track light renders surface colors and textures with high accuracy.

The 48 V DC operating voltage is a deliberate safety feature of the system architecture. The power supply unit provides galvanic isolation between the mains AC input and the 48 V DC rail, which means the rail and mounted fixtures carry low-voltage direct current rather than mains power.

Users can handle the rail and fixtures during installation or repositioning without risk of electric shock. This characteristic also reduces the likelihood of arcing or short-circuit damage during normal use.

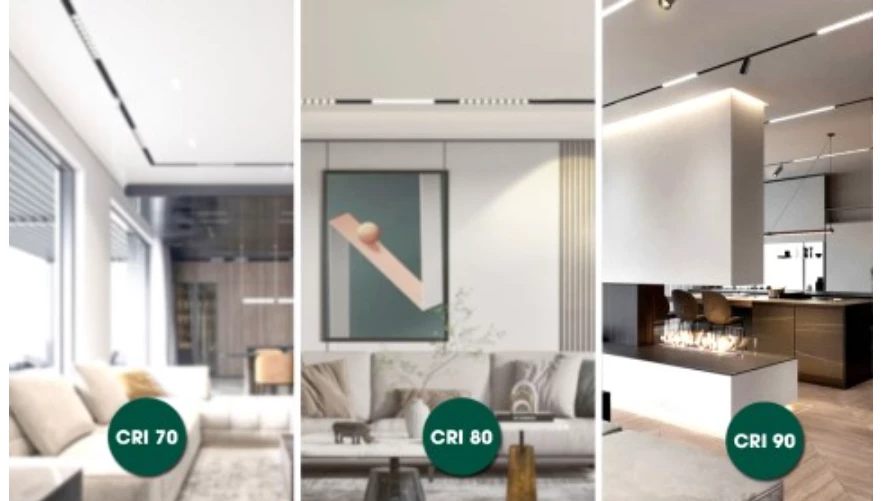

The CRI 90 rating is the defining performance attribute that separates model RLT02 from standard-grade track lighting. At CRI 90, colors appear close to how they would under natural daylight, making the fixture appropriate for environments where the visual accuracy of displayed objects, surfaces and materials is important.

The three color temperature options add further versatility: 3,000 K produces a warm, relaxed ambiance; 4,000 K offers a neutral, balanced tone; and 6,500 K delivers a cool, daylight-mimicking output suited to task-focused settings.

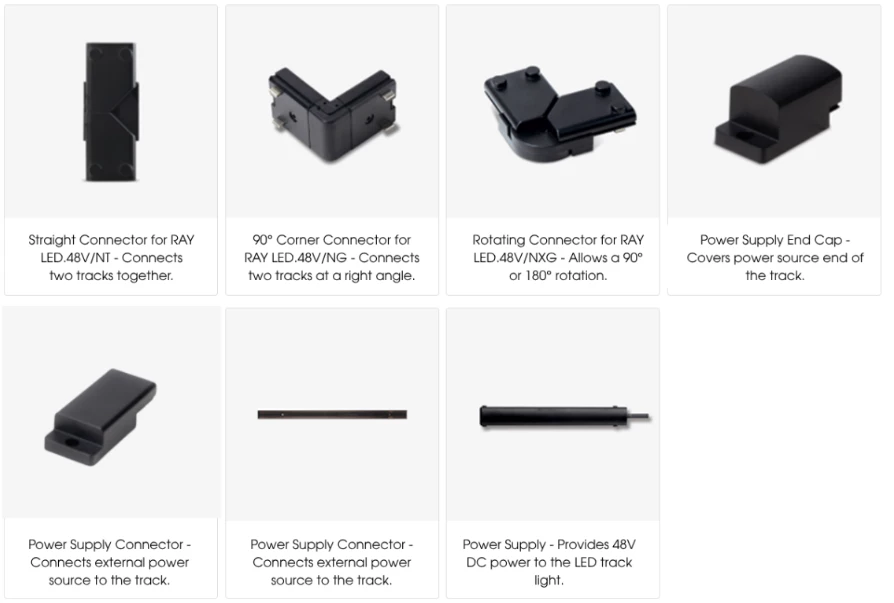

This RLT02 magnetic linear track light is part of Rang Dong's broader magnetic rail lighting ecosystem, which includes straight connectors, right-angle connectors, swivel connectors, power supply units and end caps.

Applications

Rang Dong’s magnetic linear track light is a versatile fixture suited to both residential and light commercial settings where the quality and adaptability of the lighting scheme carry genuine importance.

Model RLT02 installed in a retail showroom provides focused and adjustable illumination across product displays with a clean, low-profile aesthetic.

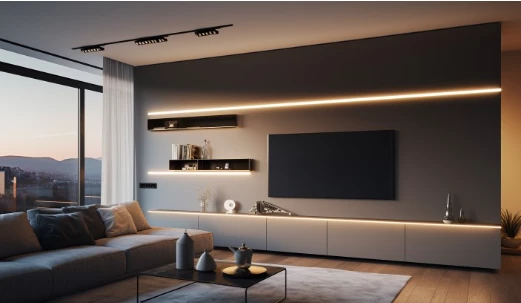

In residential interiors, the RLT02 performs well in living rooms, dining areas and bedrooms where general ambient lighting is required alongside the option for directional or accent illumination.

The clean cylindrical silhouette of the bar sits comfortably within contemporary and minimalist design styles. Homeowners who rearrange artwork, furniture or decorative features frequently will find the magnetic repositioning capability useful.

In retail environments, the combination of CRI 90 color accuracy and magnetic repositionability makes model RLT02 a practical tool for product display lighting. Merchandise, particularly clothing, furniture and decorative goods, benefits from high color rendering to maintain accurate visual appeal under artificial light.

The ability to shift fixtures along the rail without structural intervention supports stores that update their product arrangements regularly.

Model RLT02 can also be used for cafés, restaurants, hotel rooms and other hospitality spaces where lighting design contributes to the guest experience and interior character.

Office spaces seeking a more refined alternative to standard recessed fixtures can use Rang Dong's RLT02 as part of a broader rail-based lighting plan that allows zones and intensities to be adjusted over time without major ceiling work.
