P06 URG19 BACK-LIT PANEL LIGHT
Share via
Copied!

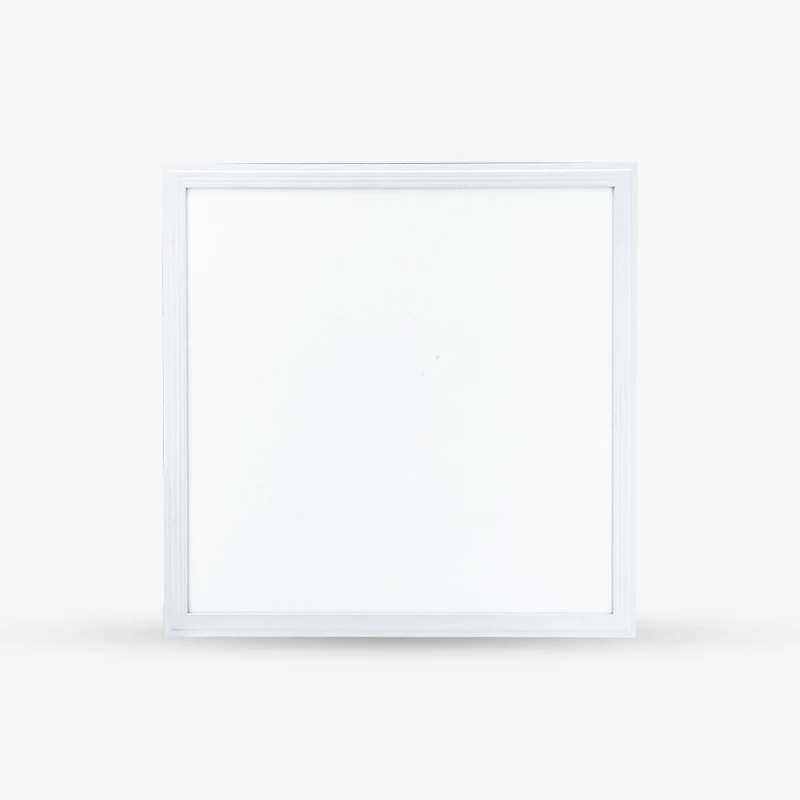

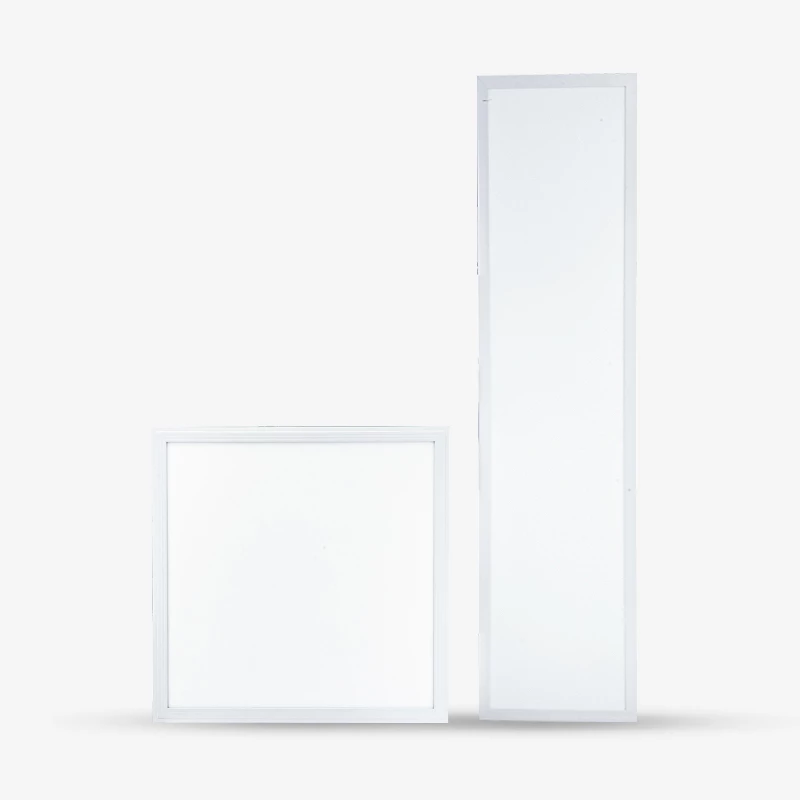

P06 URG19 BACK-LIT PANEL LIGHT
Model: P06.URG19 600x600/50W; P06.URG19 300x1200/50W
Power (W)
12/15
Voltage (V)
100÷277/120/220÷240
Power factor
0.5/0.9
Luminous efficacy (lm/W)
110/118
CRI (Ra)
90/Sunlike
Life span (hrs)
30,000
CCT (K)
3000/4000/5000/5700/6500
Driver
Isolated/Non-isolated/Dim - Triac
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/Nichia/Lumiled with excellent performance
High luminous efficacy 118 lm/W
LEDs with optical lens to ensure an desiredly distributed beam of light
Optical grade and anti-yellowing PMMA light guide plate with high lighting transmittance and desired lighting distribution
UGR <19 anti-glare diffuser sheet for soft, uniform light and eye comfort
Aluminum housing with perfect heat dissipation
Flicker-free; CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
APPLICATIONS

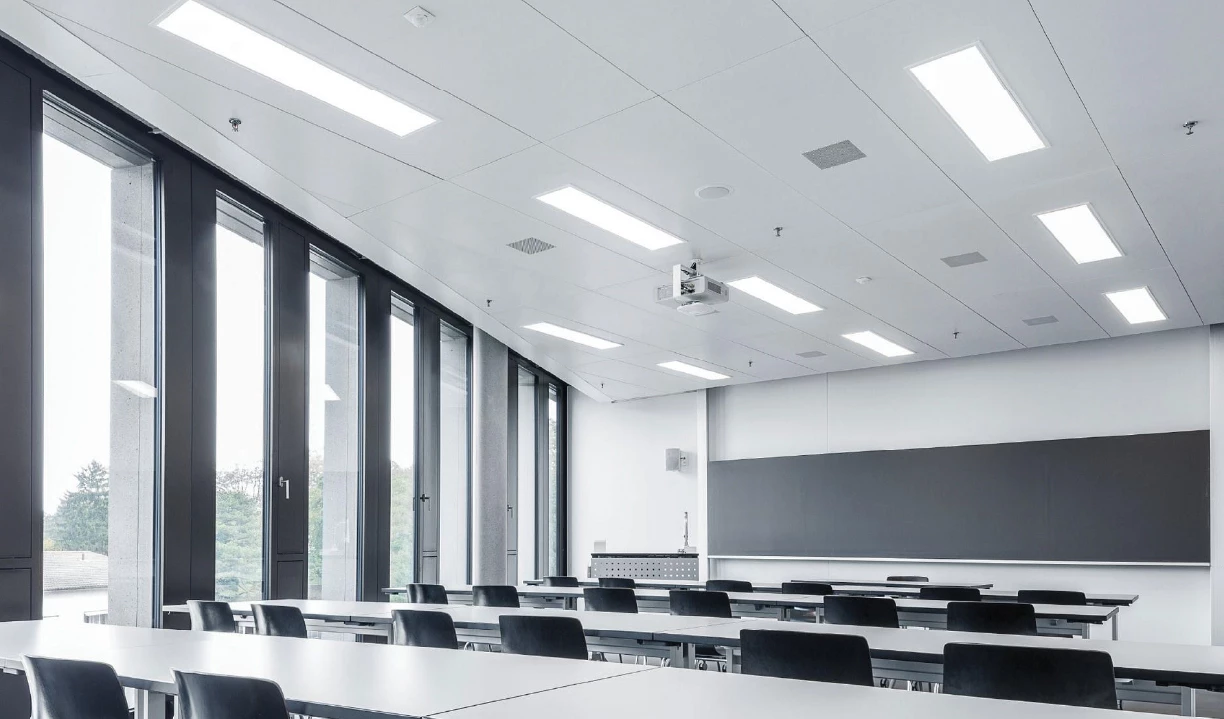

Home, office, corridor, aisle, supermarket, shopping mall, exhibition hall, etc.

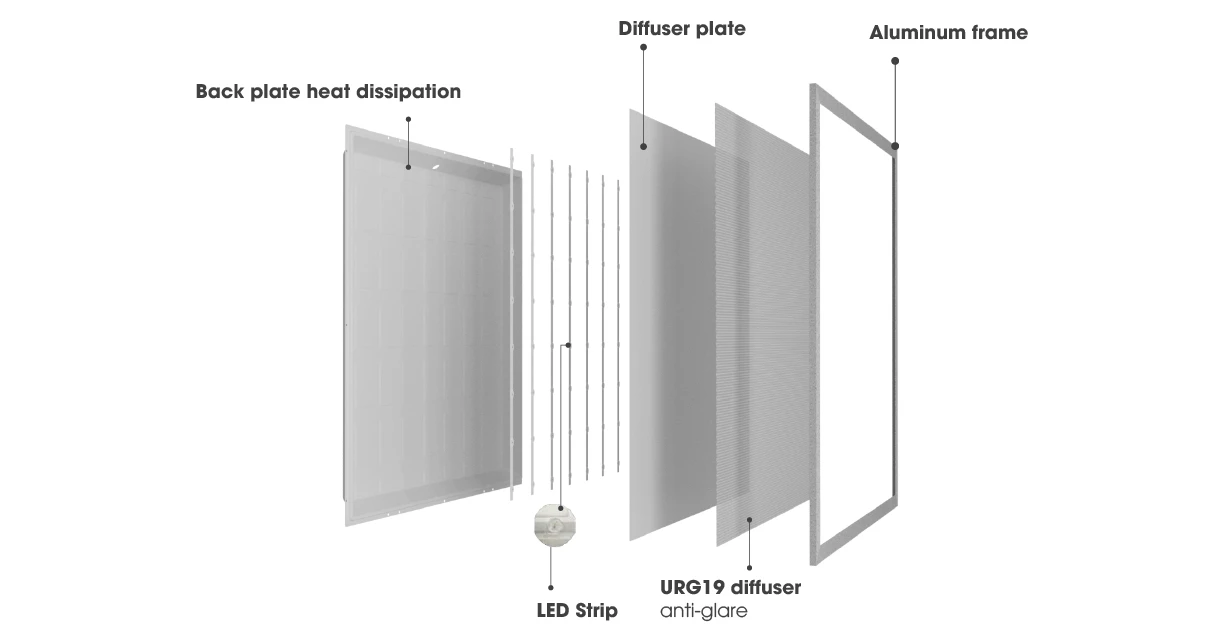

PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

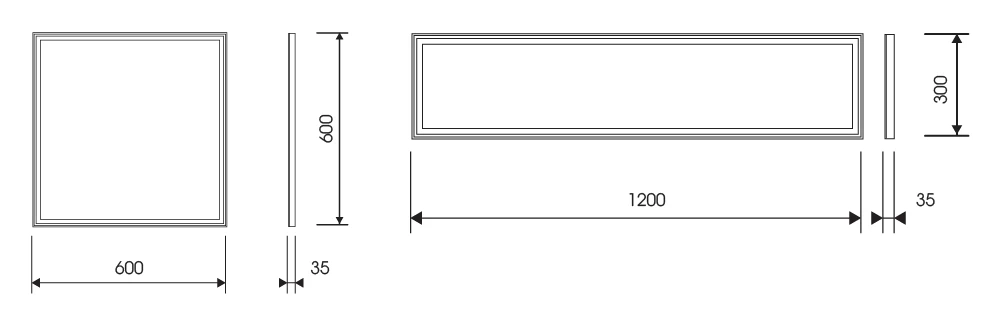

Dimension
ØxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
URG
Beam angle (°)
Lifespan
(hrs)
P06.URG19 600x600/50W
600x600x35
50
120/220÷240/100÷277
0.5/0.9
5500/590
110/118
3000/4000/6500
≤ 19
100
30,000

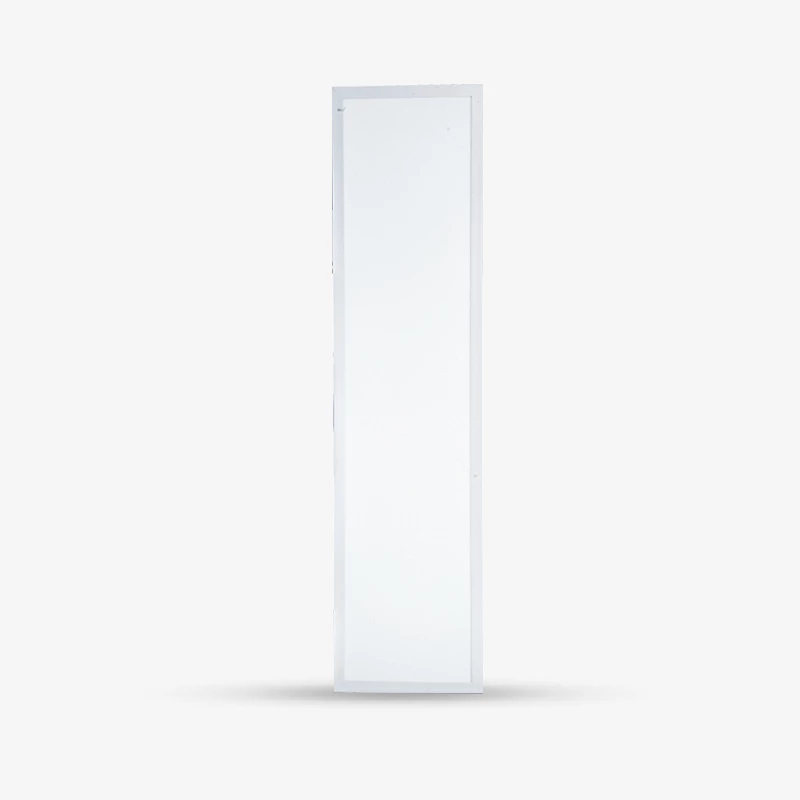

P06.URG19 300x1200/50W
300x1200x35
50
120/220÷240/100÷277
0.5/0.9
5500/590
110/118
3000/4000/6500
≤ 19
100
30,000
Capacity:
3.2 million pieces per year
Customizable:
Power, Voltage (120/220÷240/100÷277), PF, lm/W, CCT (3000/4000/5000/6500K), lifespan, etc.

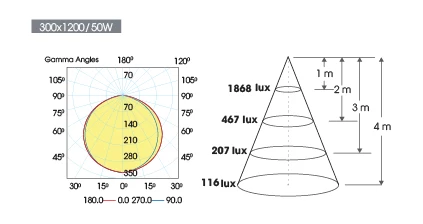

LUMINOUS INTENSITY DISTRIBUTION

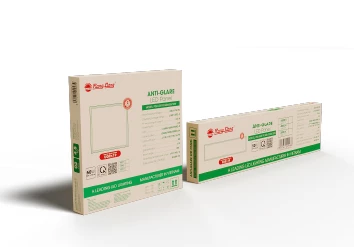

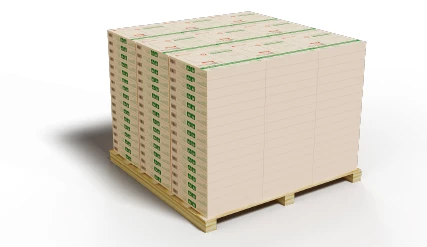

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
P06.URG19 600x600/50W
2
1 754
4 028
P06.URG19 300x1200/50W
2
1 682
3 862
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD

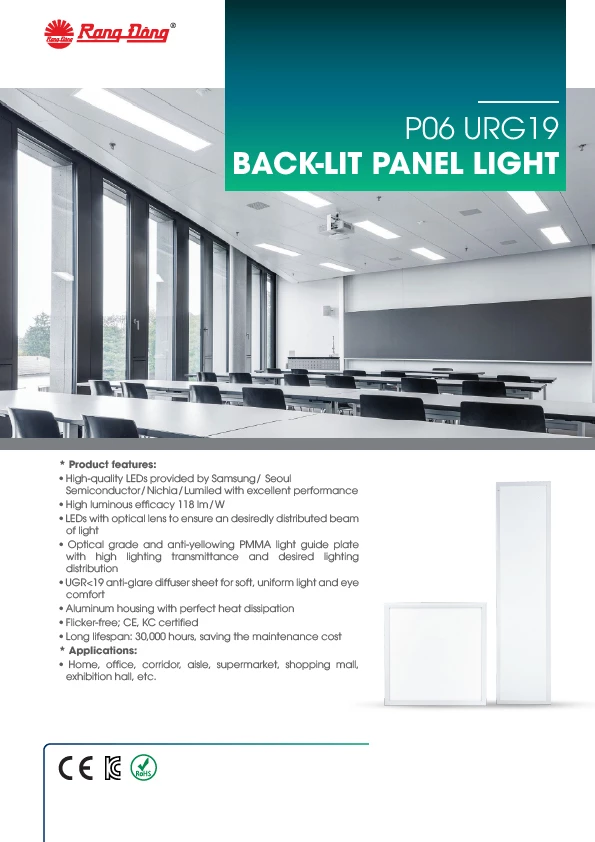

P06 URG19 BACK-LIT PANEL LIGHT
DOWNLOAD
