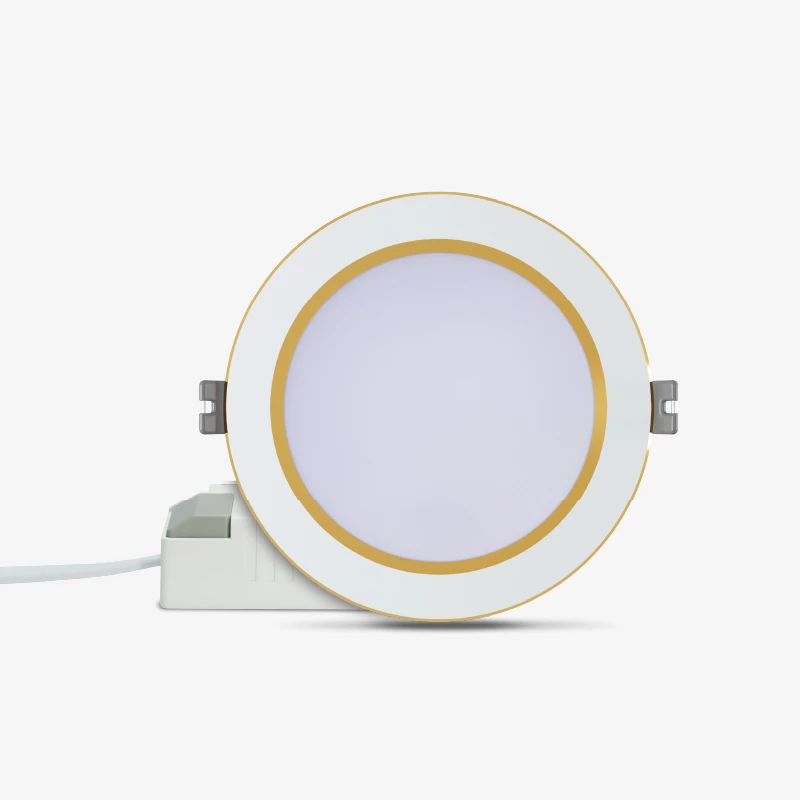

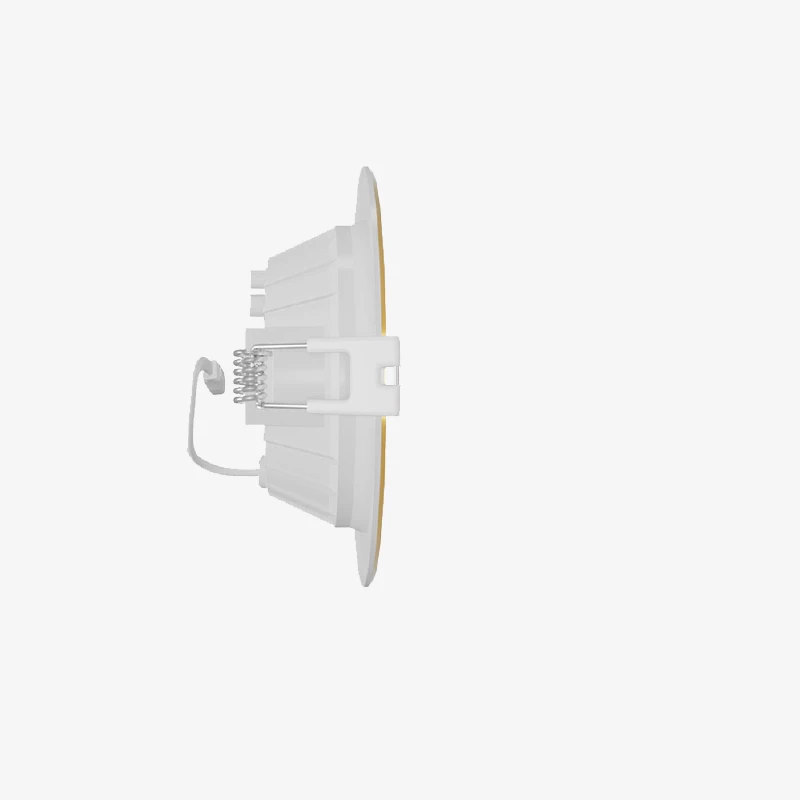

AT56 LED DOWNLIGHT
Model: AT56 90/8W; AT56 90/10W; AT56 110/10W; AT56 110/12W; AT56 DM 90/8W; AT56 DM 90/10W; AT56 DM 110/10W; AT56 DM 110/12W
Power (W)
8/10/12
Voltage (V)
100÷277/120/220÷240
Power factor
0.5/0.9
Luminous efficacy (lm/W)
100
CRI (Ra)
80/Sunlike
Life span (hrs)
30,000
Cut out (mm/Ф)
90/110
Beam angle
105
CCT (K)
3000/4000/5000/6500
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
High luminous efficacy up to 100 lm/W
High CRI of 80/Sunlike for high color accuracy

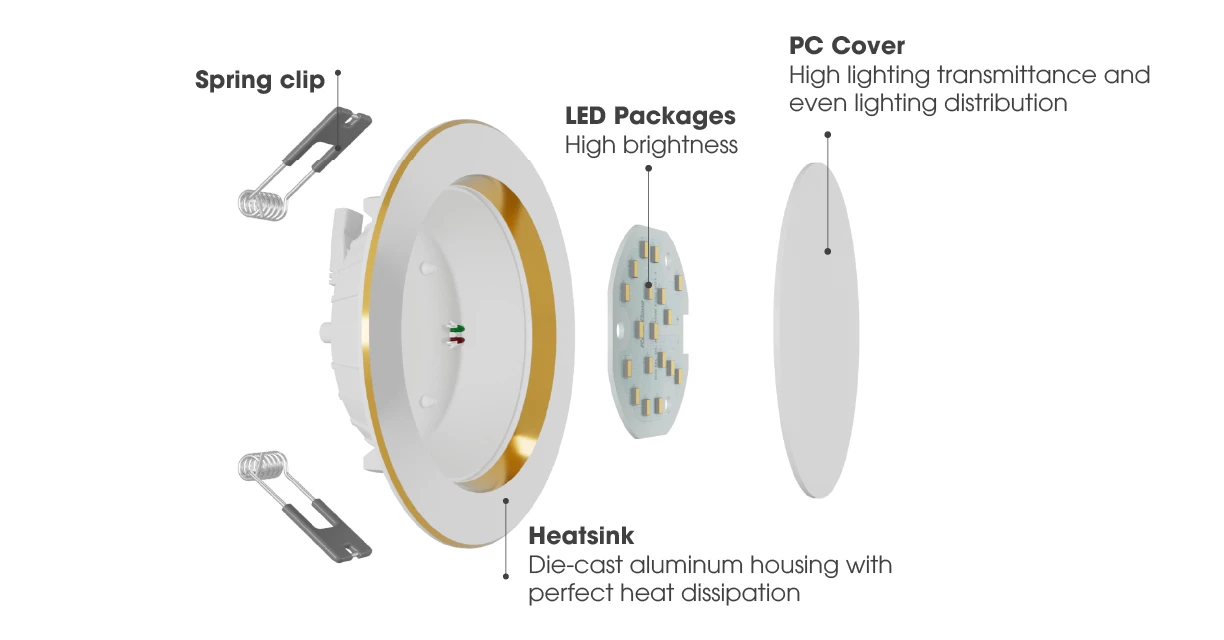

Die-cast aluminum housing with perfect heat dissipation
PC cover with high lighting transmittance and desired lighting distribution
CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
1-CCT
3-CCT changeable (adjust by wall switch or switch on driver)
APPLICATIONS

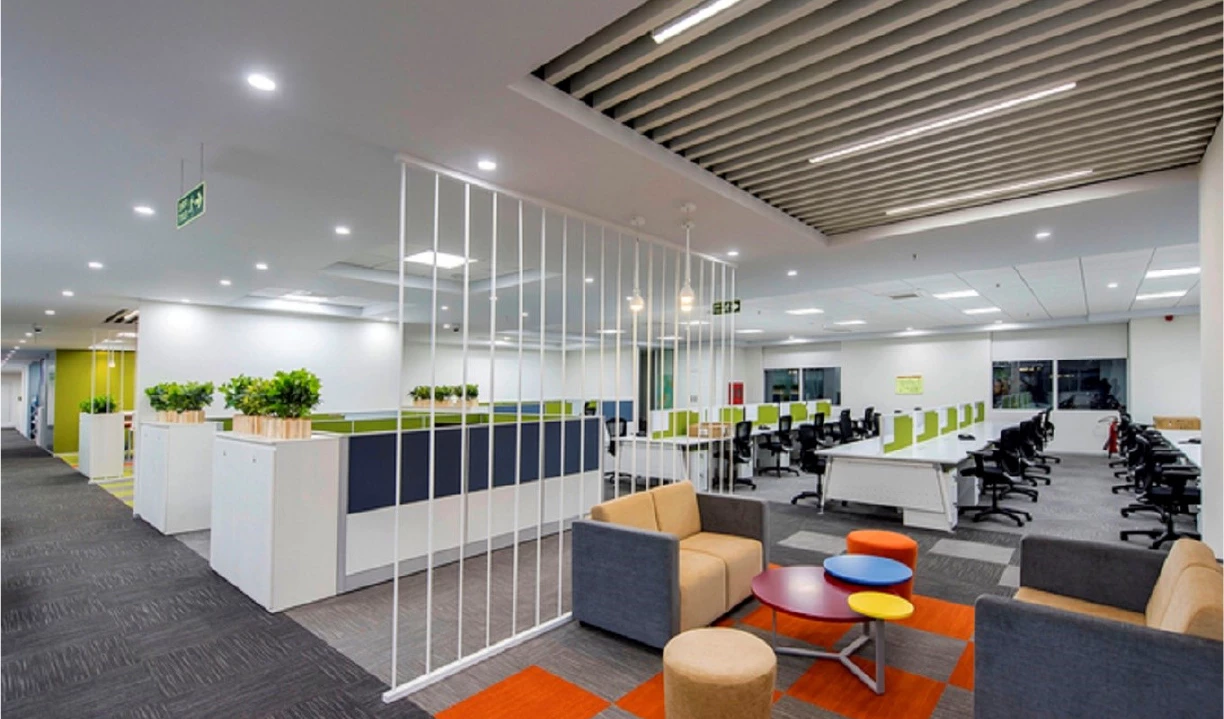

Suitable for various interior spaces, including residential homes, offices, hospitals, schools, and shopping centers., etc.
PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

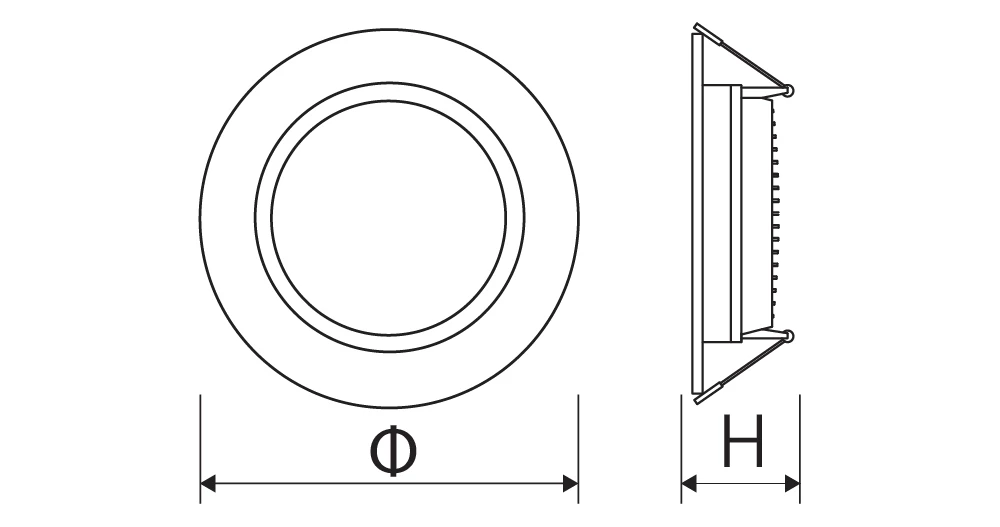

Dimension
ØxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Cut out Øc
(mm)
Lifespan
(hrs)
AT56 90/8W
118x33
8
120/220÷240/100÷277
0.5/0.9
800
100
3000/4000/6500
80
105
90
30,000
AT56 90/10W
118x33
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000/4000/6500
80
105
90
30,000
AT56 110/10W
138x36
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000/4000/6500
80
105
110
30,000
AT56 110/12W
138x36
12
120/220÷240/100÷277
0.5/0.9
1200
100
3000/4000/6500
80
105
110
30,000
AT56 DM 90/8W
118x33
8
120/220÷240/100÷277
0.5/0.9
800
100
3000-4000-6500
80
105
90
30,000
AT56 DM 90/10W
118x33
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000-4000-6500
80
105
90
30,000
AT56 DM 110/10W
138x36
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000-4000-6500
80
105
110
30,000
AT56 DM 110/12W
138x36
12
120/220÷240/100÷277
0.5/0.9
1200
100
3000-4000-6500
80
105
110
30,000
Capacity:
11.2 million pieces per year
Customizable:
Power, Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/5000/6500K), CRI (80/Sunlike), Driver (non isolation/isolation/Dim-Triac), lifespan, etc.

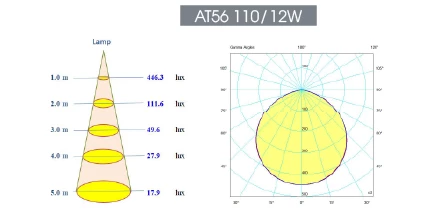

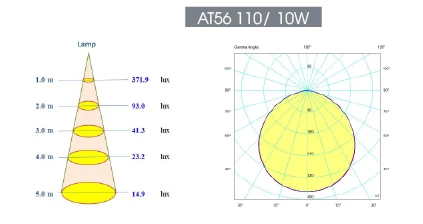

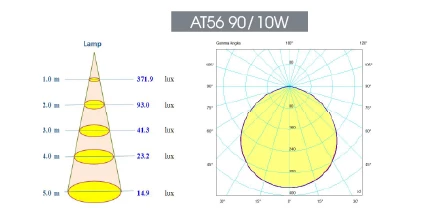

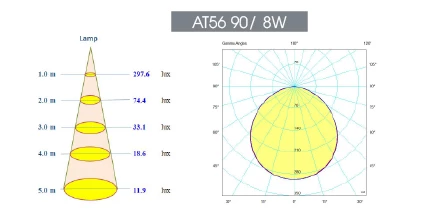

LUMINOUS INTENSITY DISTRIBUTION

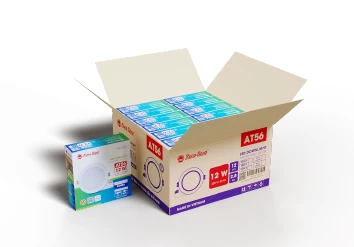

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
AT56 90/10W & 12W
24
35 880
82 416
AT56 110/10W & 12W
12
25 236
57 960
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
