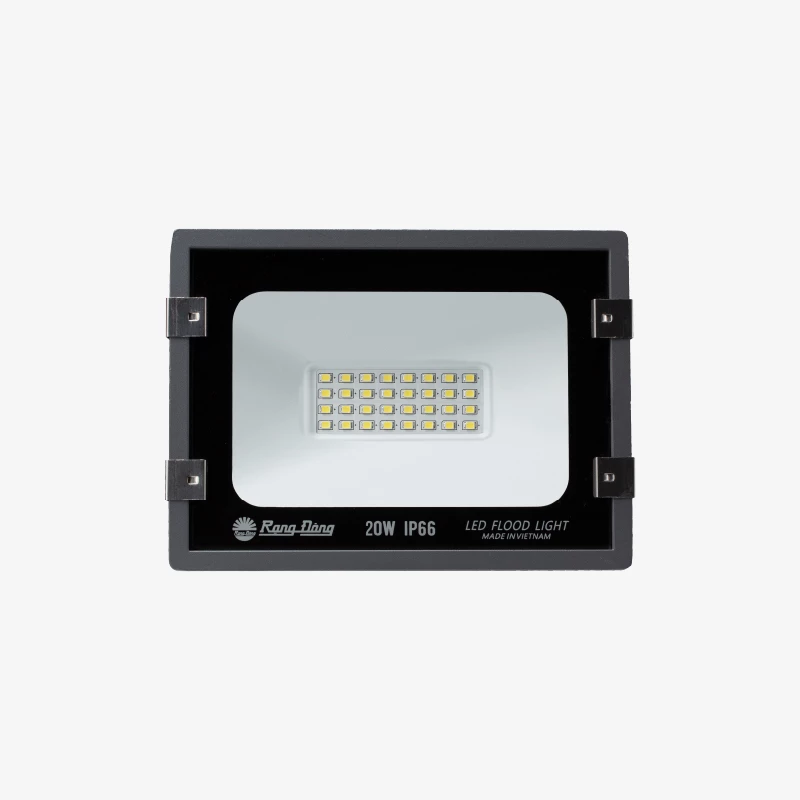

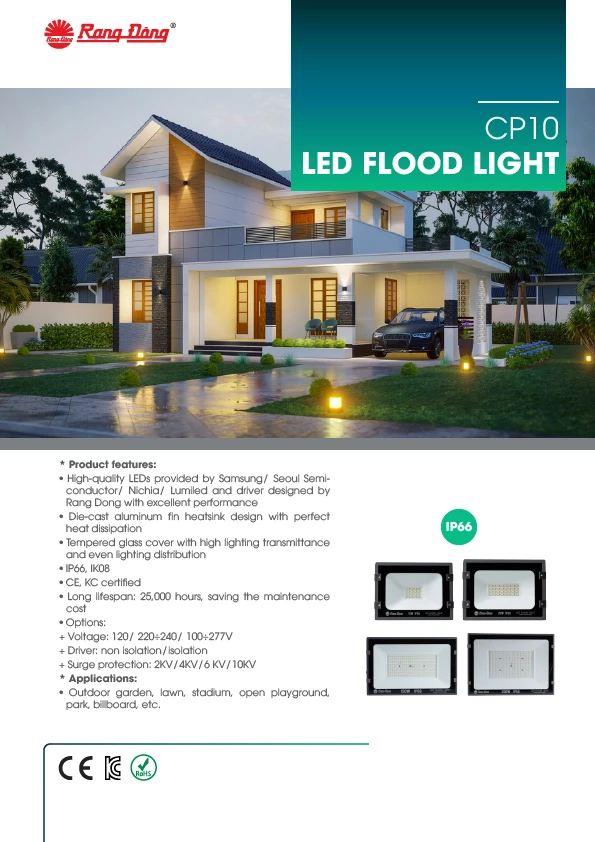

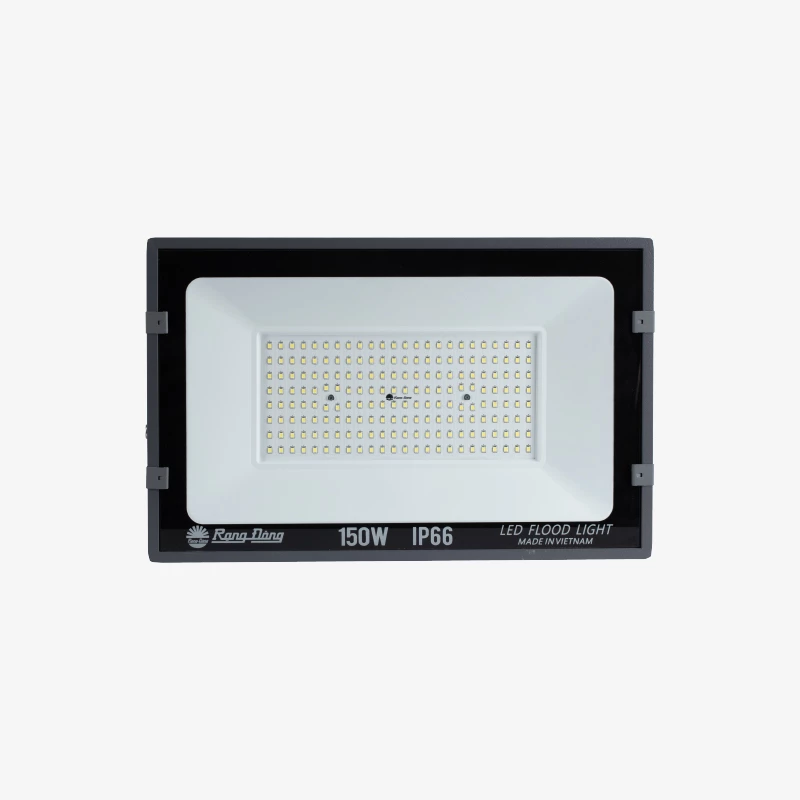

CP10 LED FLOOD LIGHT
Model: CP10 10W; CP10 20W; CP10 30W; CP10 50W; CP10 70W; CP10 100W; CP10 150W; CP10 200W
Power (W)
10/20/30/50/70/100/150/200
Voltage (V)
100-277/120/220÷240
Power factor
0.5/0.9
Luminous efficacy (lm/W)
90/95
CRI (Ra)
80
Life span (hrs)
25,000
CCT (K)
3000/4000/6500
Surge protection (kV)
6/10/20
Driver
Isolated/Non-isolated
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled and driver designed by Rang Dong with excellent performance
Die-cast aluminum fin heatsink design with perfect heat dissipation
Tempered glass cover with high lighting transmittance and even lighting distribution
IP66, IK08
CE, KC certified
Long lifespan: 25,000 hours, saving the maintenance cost
Options:
Voltage: 120/ 220÷240/ 100÷277V
Driver: non isolation/isolation
Surge protection: 2KV/4KV/6 KV/10KV
APPLICATIONS
Outdoor garden, lawn, stadium, open playground, park, billboard, etc.

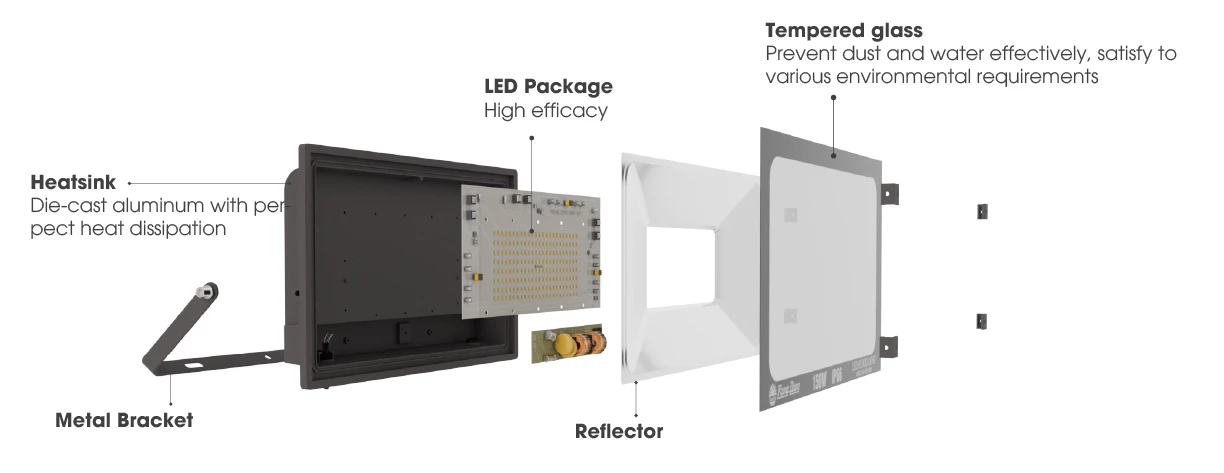

PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

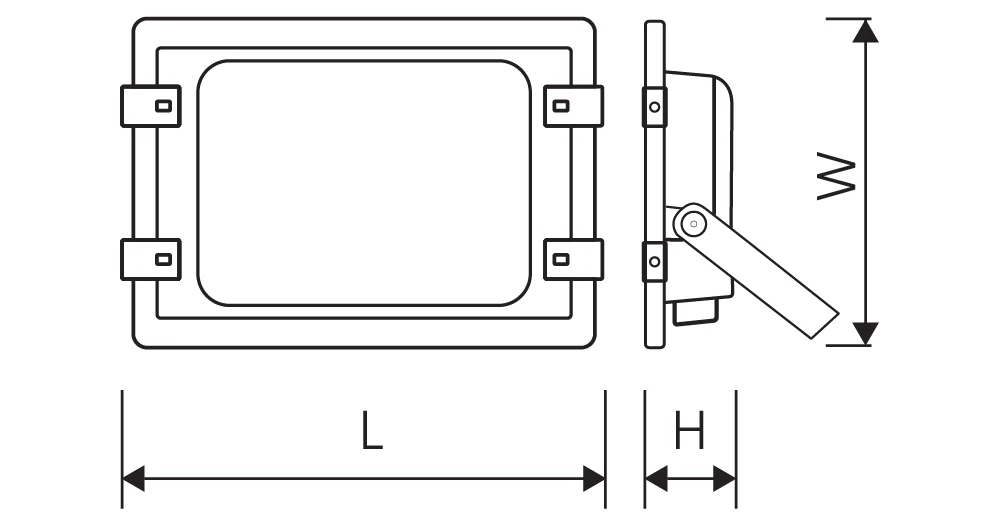

Dimension
LxWxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Lifespan
(hrs)

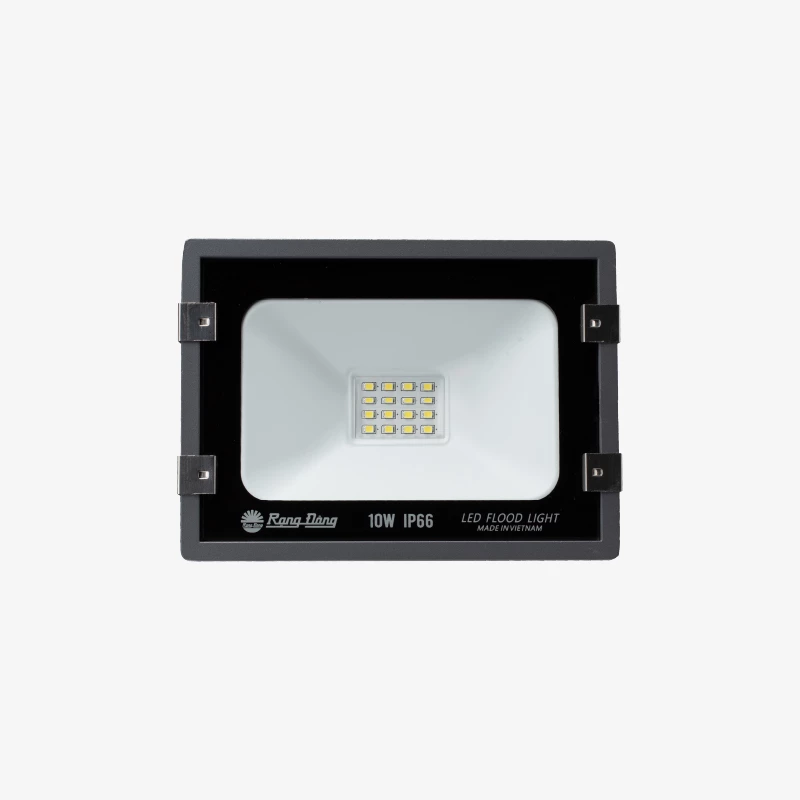

CP10 10W
110x94x30
10
120/220÷240/100÷277
0.5/0.9
950
95
3000/4000/6500
80
25,000
CP10 20W
130x110x32
20
120/220÷240/100÷277
0.5/0.9
1900
95
3000/4000/6500
80
25,000
CP10 30W
175x129x36
30
120/220÷240/100÷277
0.5/0.9
2850
95
3000/4000/6500
80
25,000
CP10 50W
213x144x38
50
120/220÷240/100÷277
0.5/0.9
4500
95
3000/4000/6500
80
25,000
CP10 50W
213x144x38
50
120/220÷240/100÷277
0.5/0.9
4500
95
3000/4000/6500
80
25,000
CP10 70W
240x190x40
70
120/220÷240/100÷277
0.5/0.9
6650
95
3000/4000/6500
80
25,000
CP10 100W
275x208x40
100
120/220÷240/100÷277
0.5/0.9
9500
95
3000/4000/6500
80
25,000
CP10 150W
360x230x50
150
120/220÷240/100÷277
0.5/0.9
14250
95
3000/4000/6500
80
25,000

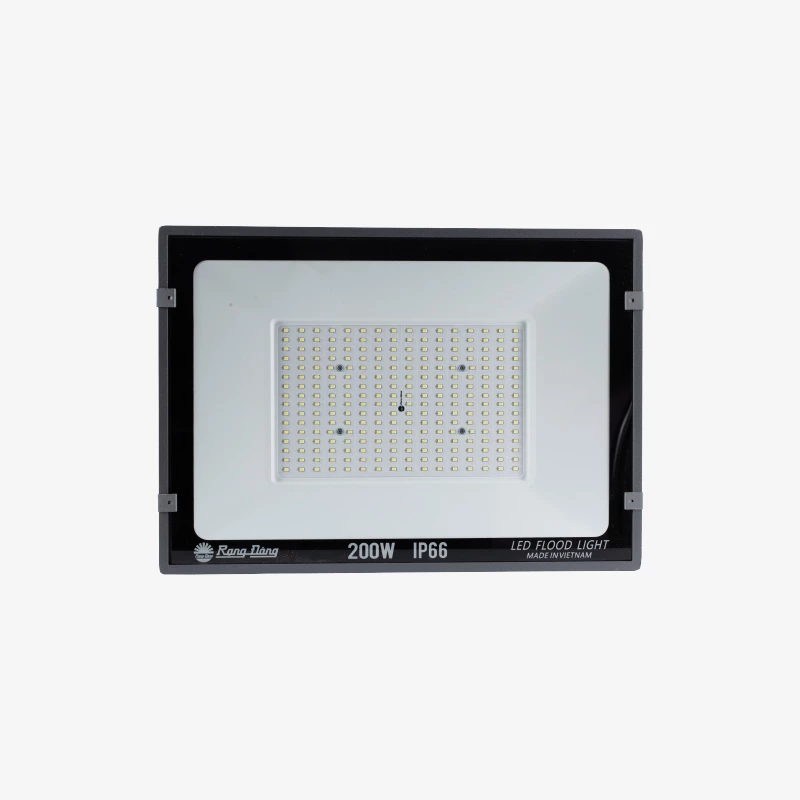

CP10 200W
405x288x50
200
120/220÷240/100÷277
0.5/0.9
19000
95
3000/4000/6500
80
25,000
Capacity:
6.2 million pieces per year
Customizable:
Power (10W/20W/30W/50W/100W/150W/200W), Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/6500K), Surge protection (6/10/20KV), Driver (non isolation/isolation) lifespan, etc.

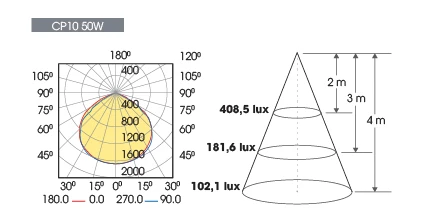

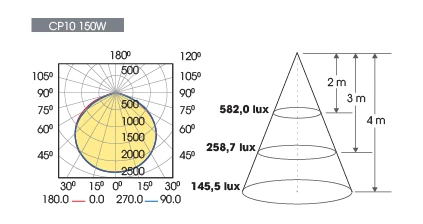

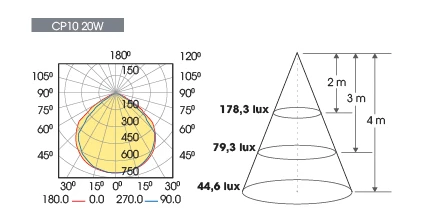

LUMINOUS INTENSITY DISTRIBUTION

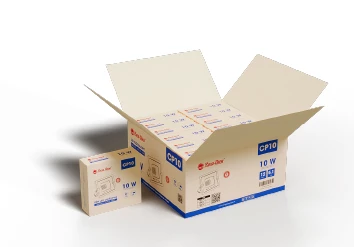

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
CP10 10W
12
48 120
110 496
CP10 20W
12
35 076
80 556
CP10 30W
8
22 408
51 456
CP10 50W
6
16 674
38 292
CP10 70W
6
10 584
24 306
CP10 100W
6
8 592
19 734
CP10 120W
2
3 558
8 170
CP10 200W
2
2 630
6 040
Customizable according to customer’s request
Exported markets: EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD
CP10 LED FLOOD LIGHT
DOWNLOAD
