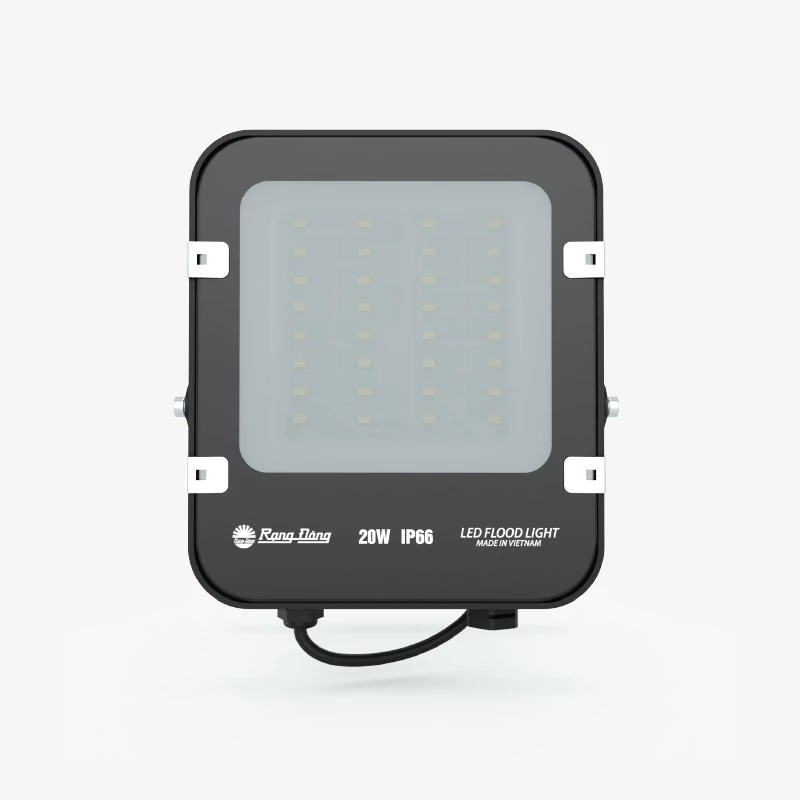

CP12 LED FLOOD LIGHT
Model: CP12 10W; CP12 20W; CP12 30W; CP12 50W; CP12 100W; CP12 150W; CP12 200W
Power (W)
10/20/30/50/100/150/200
Voltage (V)
100÷277/120/220÷240
Power factor
0.5/0.9
Luminous efficacy (lm/W)
105/110/115
CRI (Ra)
80
Life span (hrs)
25,000
Beam angle
105/115
CCT (K)
3000/4000/6500
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled and driver designed by Rang Dong with excellent performance
High efficacy up to 115 lm/W
Die-cast aluminum fin heatsink design with perfect heat dissipation
Tempered glass cover with high lighting transmittance and even lighting distribution
IP66, IK08
CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
Voltage: 120/ 220÷240/100÷277V

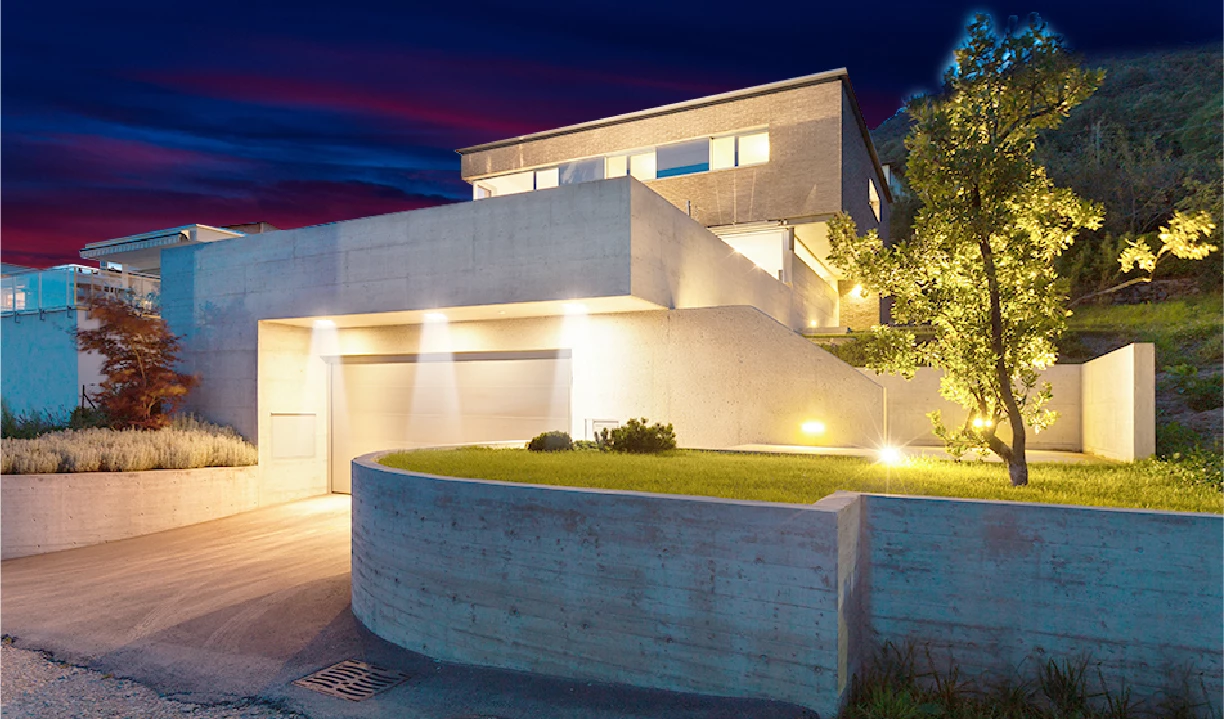

APPLICATIONS

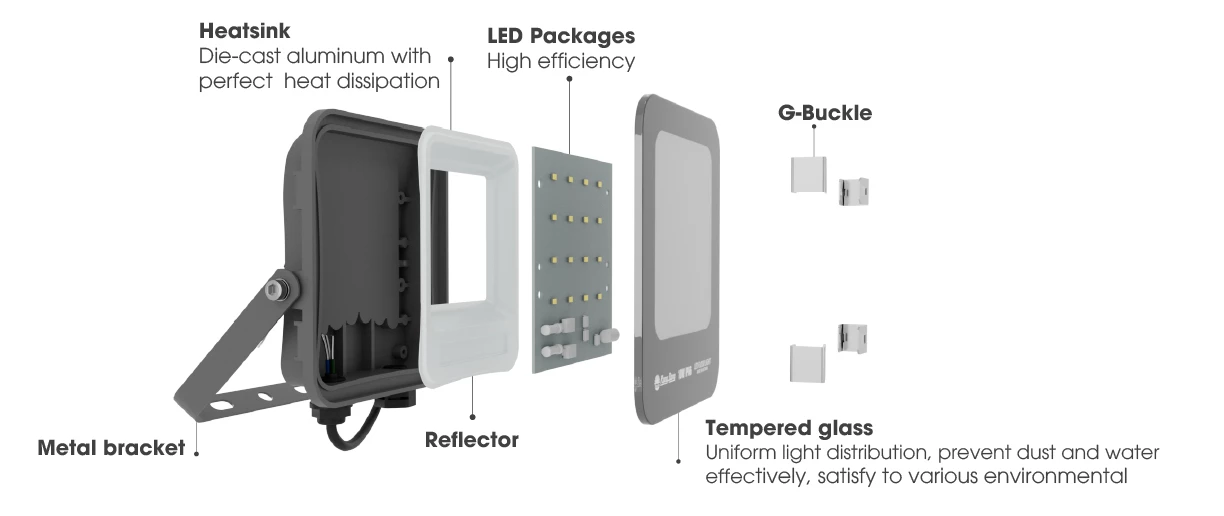

PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

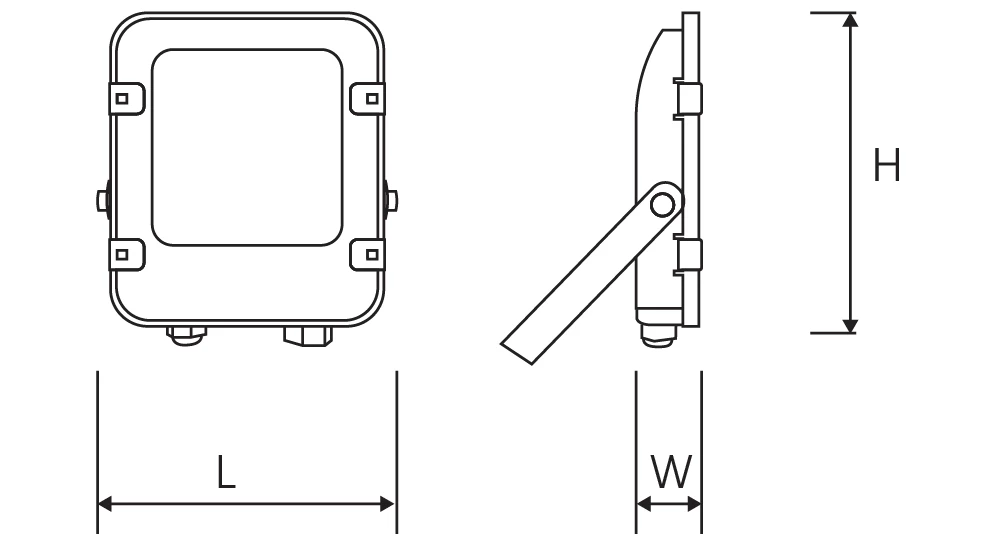

Dimension
LxWxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Lifespan
(hrs)
CP12 10W
158x120x30
10
120/220÷240/100÷277
0.5/0.9
1050/1100
105/110
3000/4000/6500
80
105
25,000
CP12 20W
220x156x30
20
120/220÷240/100÷277
0.5/0.9
2100/2200
105/110
3000/4000/6500
80
105
25,000
CP12 30W
235x182x30
30
120/220÷240/100÷277
0.5/0.9
3150/3300
105/110
3000/4000/6500
80
115
25,000
CP12 50W
275x217x42
50
120/220÷240/100÷277
0.5/0.9
5250/5500
105/110
3000/4000/6500
80
115
25,000
CP12 100W
276x236x30
100
120/220÷240/100÷277
0.5/0.9
11500
115
3000/4000/6500
80
105
25,000
CP12 150W
315x277x31
150
120/220÷240/100÷277
0.5/0.9
17250
115
3000/4000/6500
80
105
25,000
CP12 200W
352x310x30
200
120/220÷240/100÷277
0.5/0.9
23000
115
3000/4000/6500
80
105
25,000
Capacity:
6.2 million pieces per year
Customizable:
Power (10W/20W/30W/50W/100W/150W/200W), Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/6500K), Surge protection (6/10/20KV), Driver (non isolation/ isolation) lifespan, etc.

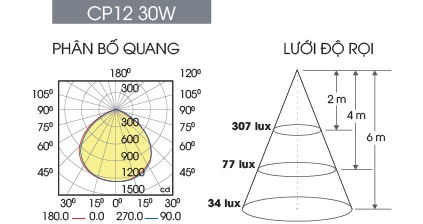

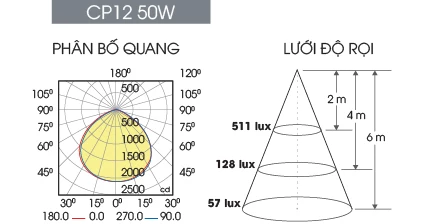

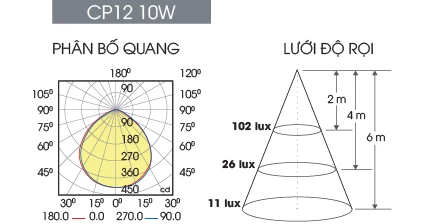

LUMINOUS INTENSITY DISTRIBUTION

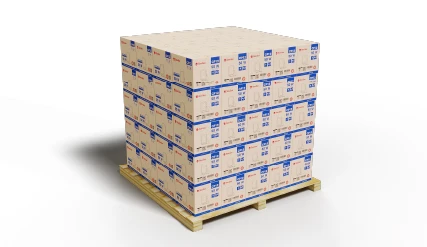

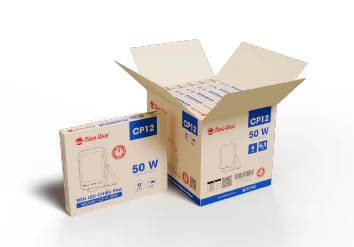

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
CP12 10W
12
31 812
73 056
CP12 20W
12
20 784
47 736
CP12 30W
8
13 704
31 480
CP12 50W
6
10 800
24 798
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD

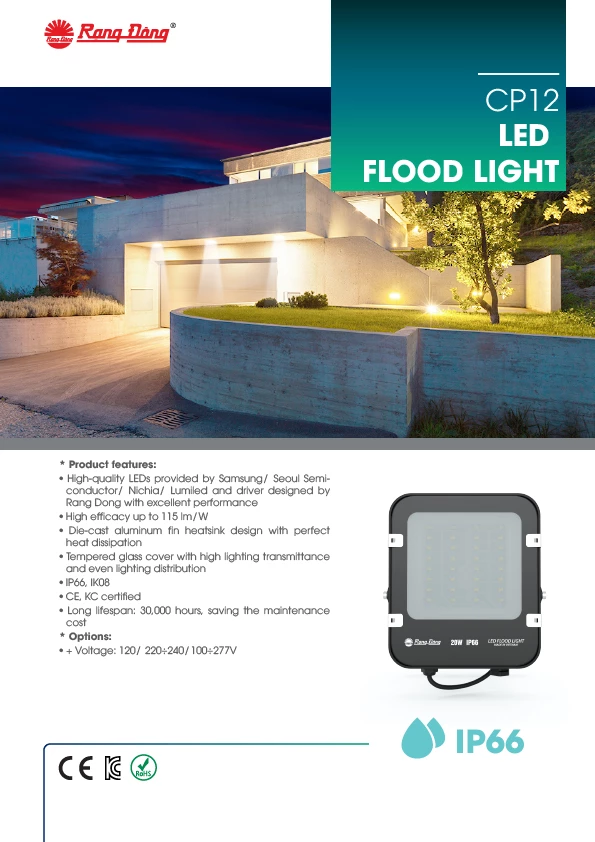

CP12 LED FLOOD LIGHT
DOWNLOAD
