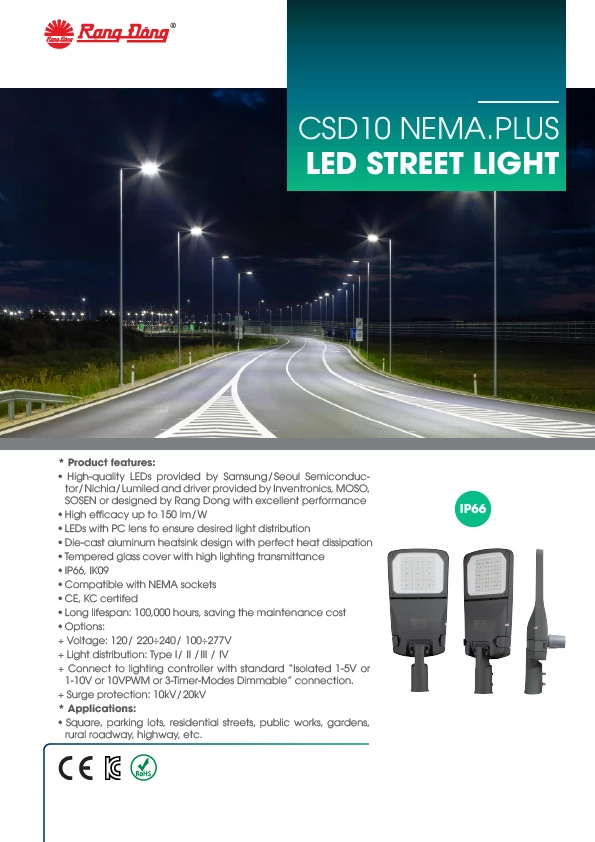

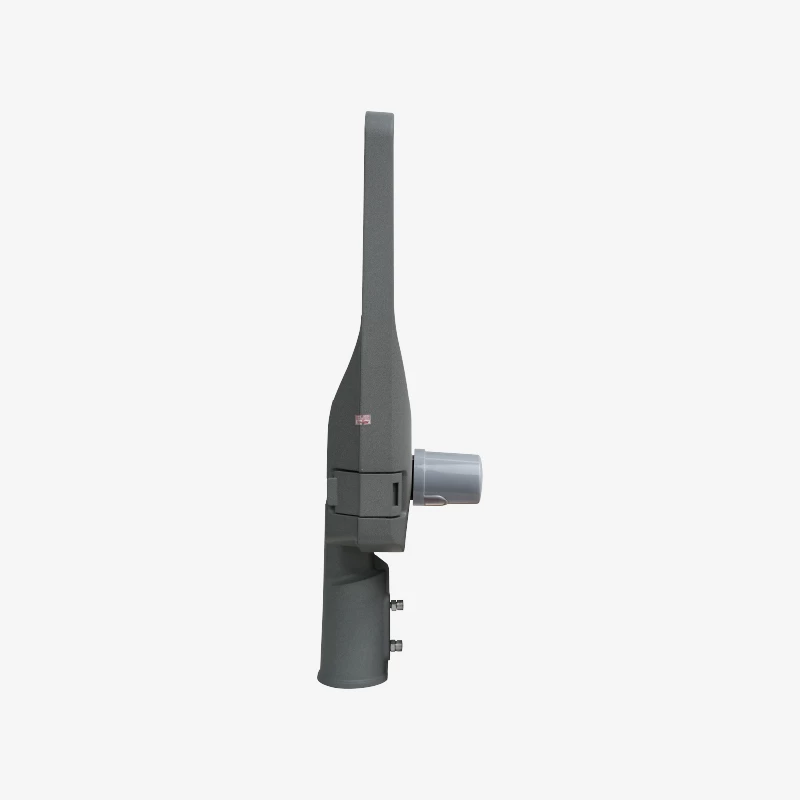

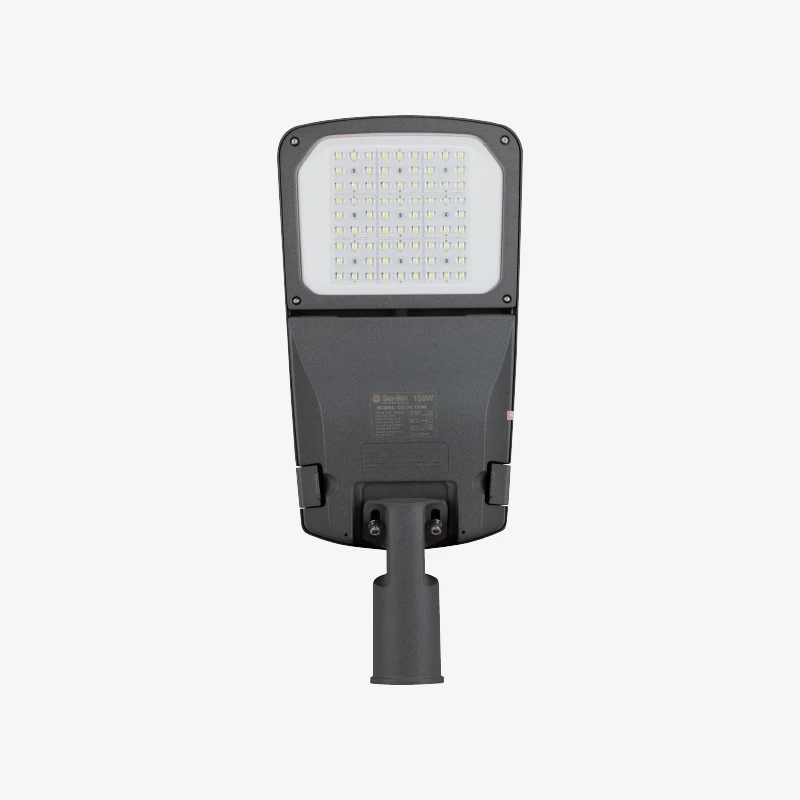

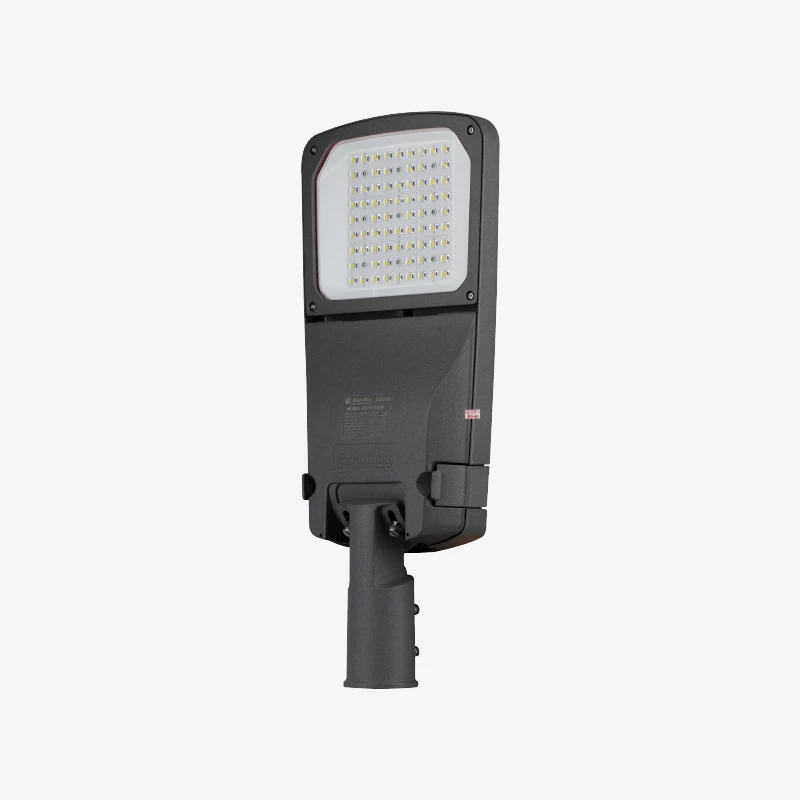

CSD10 LED STREET LIGHT

Model: CSD10 60W; CSD10 80W; CSD10 100W; CSD10 110W; CSD10 120W; CSD10 140W; CSD10 150W; CSD10 160W; CSD10 180W; CSD10 200W; CSD10 220W; CSD10 250W

SHOW ALL

Certifications

FEATURES

SPECIFICATIONS

DOWNLOAD

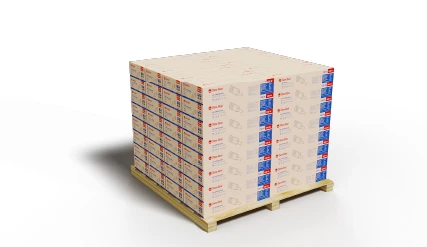

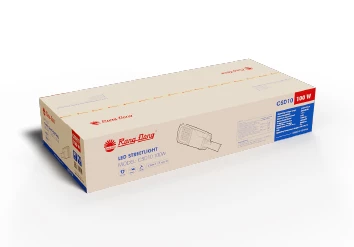

Type of lamps	Quantity in master box (pcs)	Estimated quantity/20'DC (pcs)	Estimated quantity/40'HC (pcs)
CSD10 60W/ 80W	1	1 562	3 588
CSD10 100W	1	1 327	3 162
CSD10 110W/120W/140W/150W	1	1 106	2 539
CSD10 160W/180W/200W/220W/250	1	852	1 957
Customizable according to customer’s request

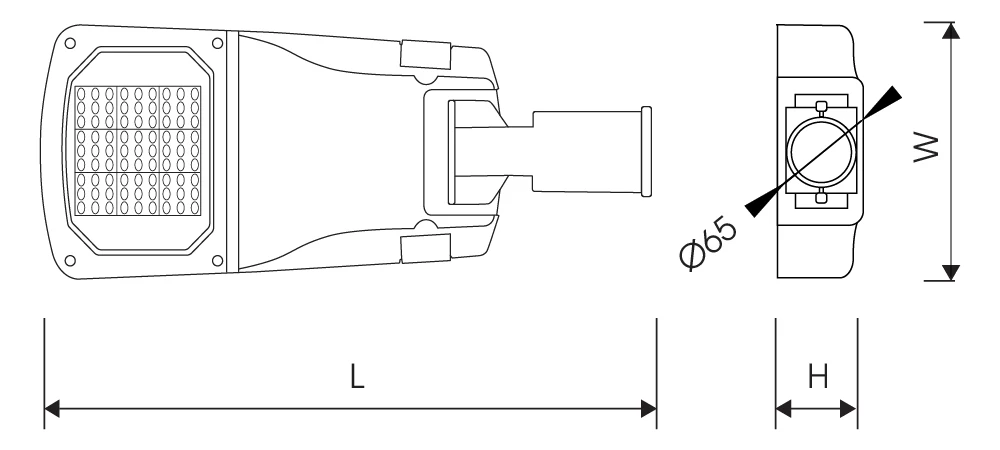

Model	Dimension LxWxH (mm)	Power (W)	Voltage (V)	Power factor	Luminous flux (lm)	Luminous efficacy (lm/W)	CCT (K)	CRI (Ra)	Beam angle (°)	Lifespan (hrs)
CSD10 60W	515x200x75	60	120/220÷240/100÷277	0.95	9000	150	4000/5000	75	Type 2	100,000
CSD10 80W	515x200x75	80	120/220÷240/100÷277	0.95	12000	150	4000/5000	75	Type 2	100,000

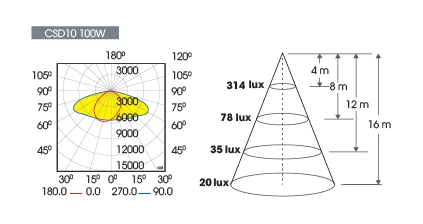

CSD10 100W	577x232x103	100	120/220÷240/100÷277	0.95	15000	150	4000/5000	75	Type 2	100,000
CSD10 110W	627x272x103	110	120/220÷240/100÷277	0.95	16500	150	4000/5000	75	Type 2	100,000
CSD10 120W	627x272x103	120	120/220÷240/100÷277	0.95	18000	150	4000/5000	75	Type 2	100,000
CSD10 140W	627x272x103	140	120/220÷240/100÷277	0.95	21000	150	4000/5000	75	Type 2	100,000
CSD10 150W	627x272x103	150	120/220÷240/100÷277	0.95	22500	150	4000/5000	75	Type 2	100,000
CSD10 160W	768x301x103	160	120/220÷240/100÷277	0.95	25600	150	4000/5000	75	Type 2	100,000
CSD10 180W	768x301x103	180	120/220÷240/100÷277	0.95	27000	150	4000/5000	75	Type 2	100,000

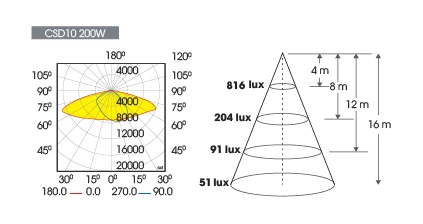

CSD10 200W	768x301x103	200	120/220÷240/100÷277	0.95	30000	150	4000/5000	75	Type 2	100,000
CSD10 220W	768x301x103	220	120/220÷240/100÷277	0.95	33000	150	4000/5000	75	Type 2	100,000

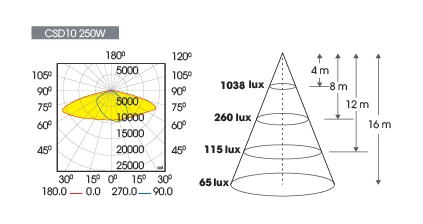

CSD10 250W	768x301x103	250	120/220÷240/100÷277	0.95	37500	150	4000/5000	75	Type 2	100,000
