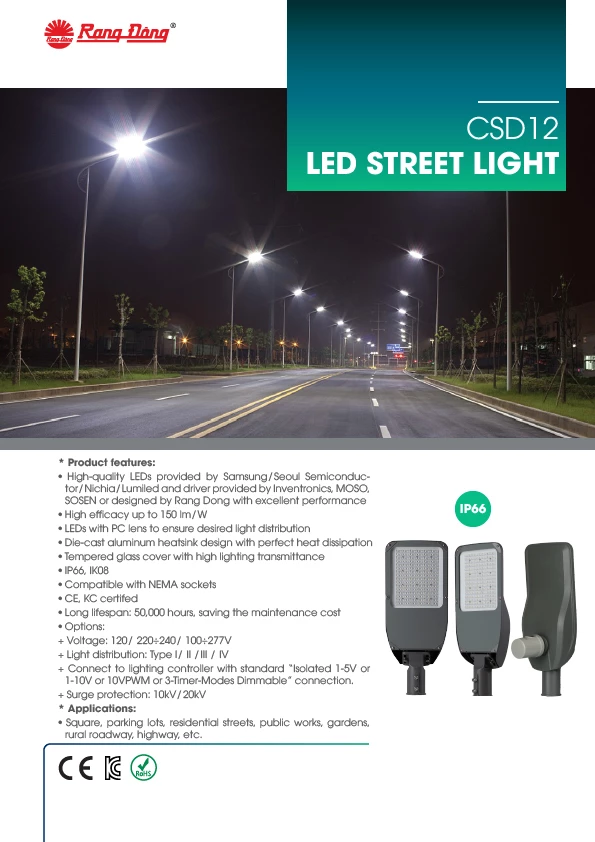

High-quality LEDs provided by Samsung/Seoul Semiconductor/Nichia/Lumiled and driver provided by Inventronics, MOSO, SOSEN or designed by Rang Dong with excellent performance
High efficacy up to 150 lm/W

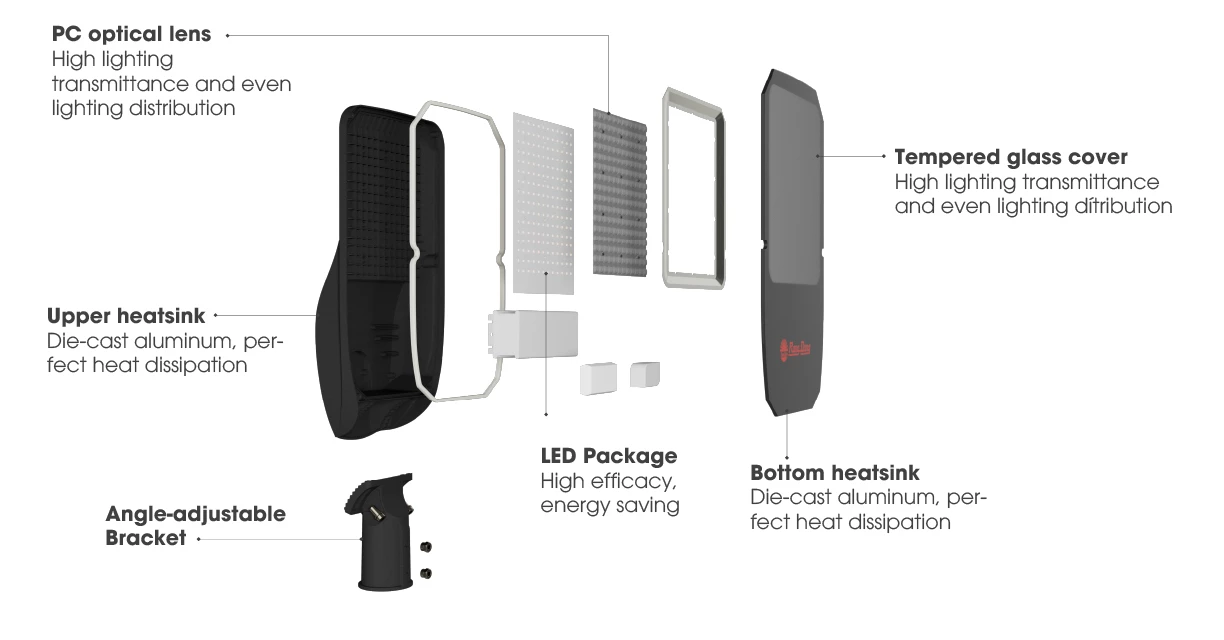

LEDs with PC lens to ensure desired light distribution
Die-cast aluminum heatsink design with perfect heat dissipation
Tempered glass cover with high lighting transmittance
IP66, IK08
Compatible with NEMA sockets
CE, KC certifed
Long lifespan: 50,000 hours, saving the maintenance cost
Options:
Voltage: 120/ 220÷240/ 100÷277V
Light distribution: Type I/ II /III / IV
Connect to lighting controller with standard “Isolated 1-5V or 1-10V or 10VPWM or 3-Timer-Modes Dimmable” connection.
Surge protection: 10kV/20kV
APPLICATIONS

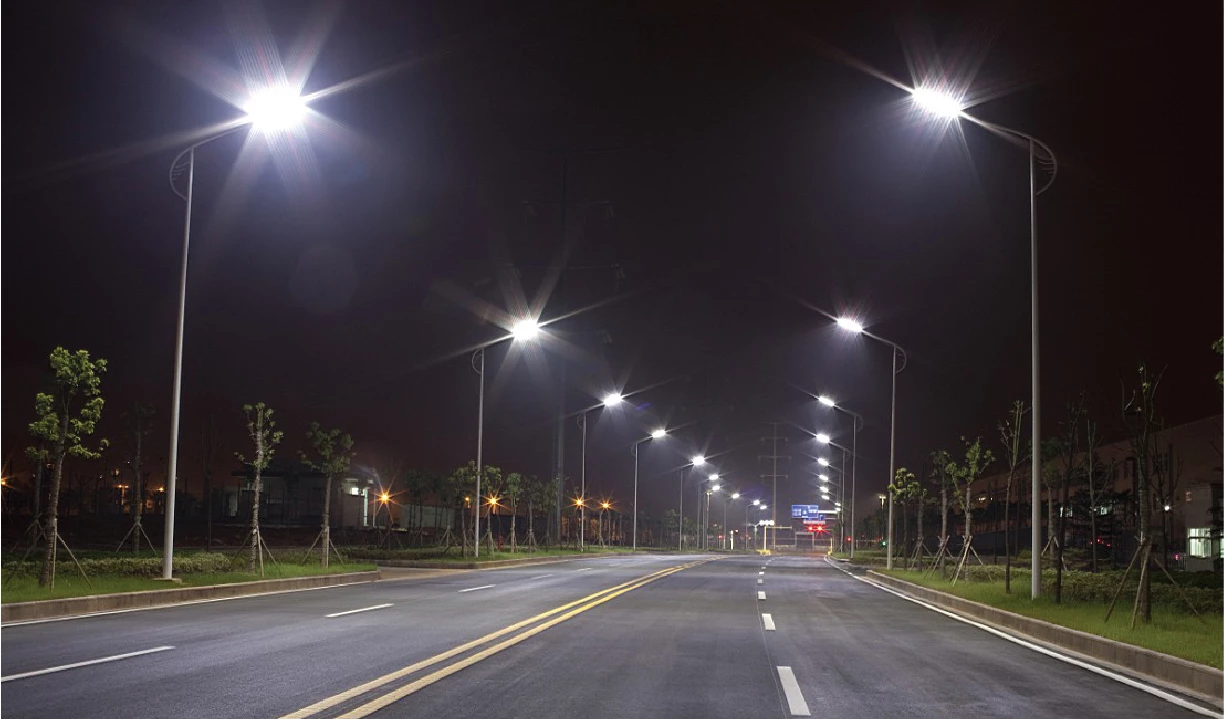

Square, parking lots, residential streets, public works, gardens, rural roadway, highway, etc.
PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

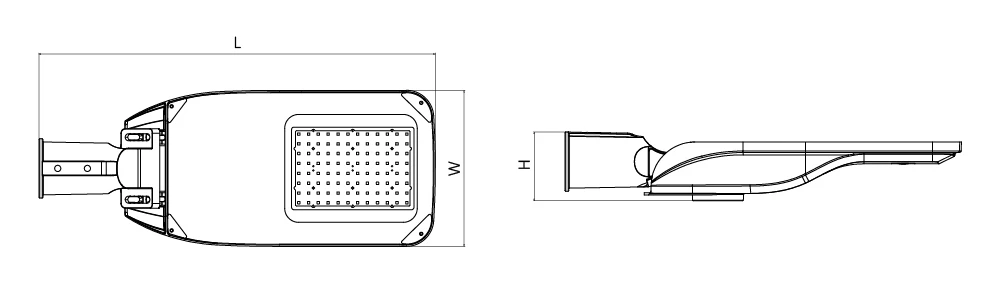

Dimension LxWxH (mm)
Power (W)
Voltage (V)
Power factor
Luminous flux (lm)
Luminous efficacy (lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Lifespan (hrs)
CSD12 60W
515x200x75
60
120/220÷240/100÷277
0.9
9000
150
4000/5000
70
Type 2
50,000
CSD12 70W
515x200x75
70
120/220÷240/100÷277
0.9
9800
140
4000/5000
70
Type 2
50,000
CSD12 80W
515x200x75
80
120/220÷240/100÷277
0.9
11200
140
4000/5000
70
Type 2
50,000

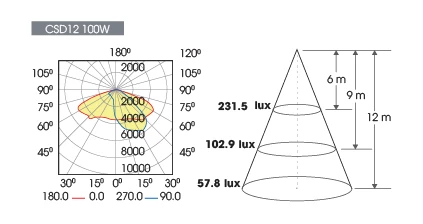

CSD12 100W
560x228x85
100
120/220÷240/100÷277
0.9
15000
150
4000/5000
70
Type 2
50,000

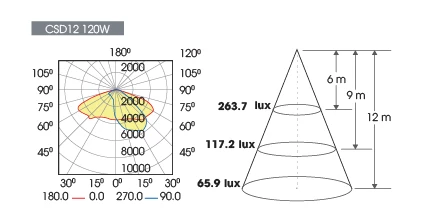

CSD12 120W
560x228x85
120
120/220÷240/100÷277
0.9
17400
150
4000/5000
75
Type 2
50,000
Customizable: Power (60W/70W/80W/100W/120W), Voltage (120/220÷240/100÷277/90-305V), lm/W (up to 150), CCT (4000/5000K/6500K), Light distribution (type I/ II /III / IV), Surge protection (10/20KV), lifespan, etc.
