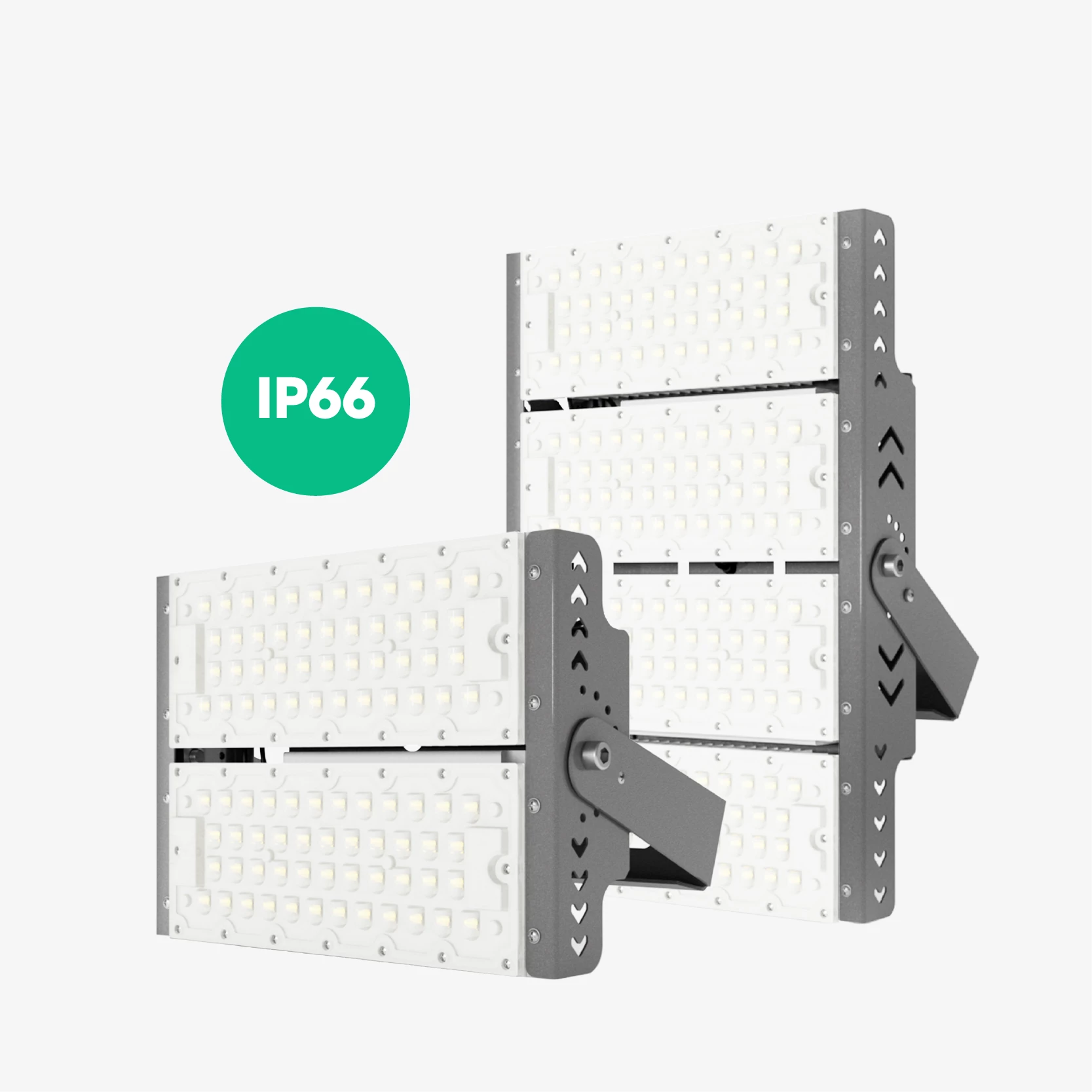

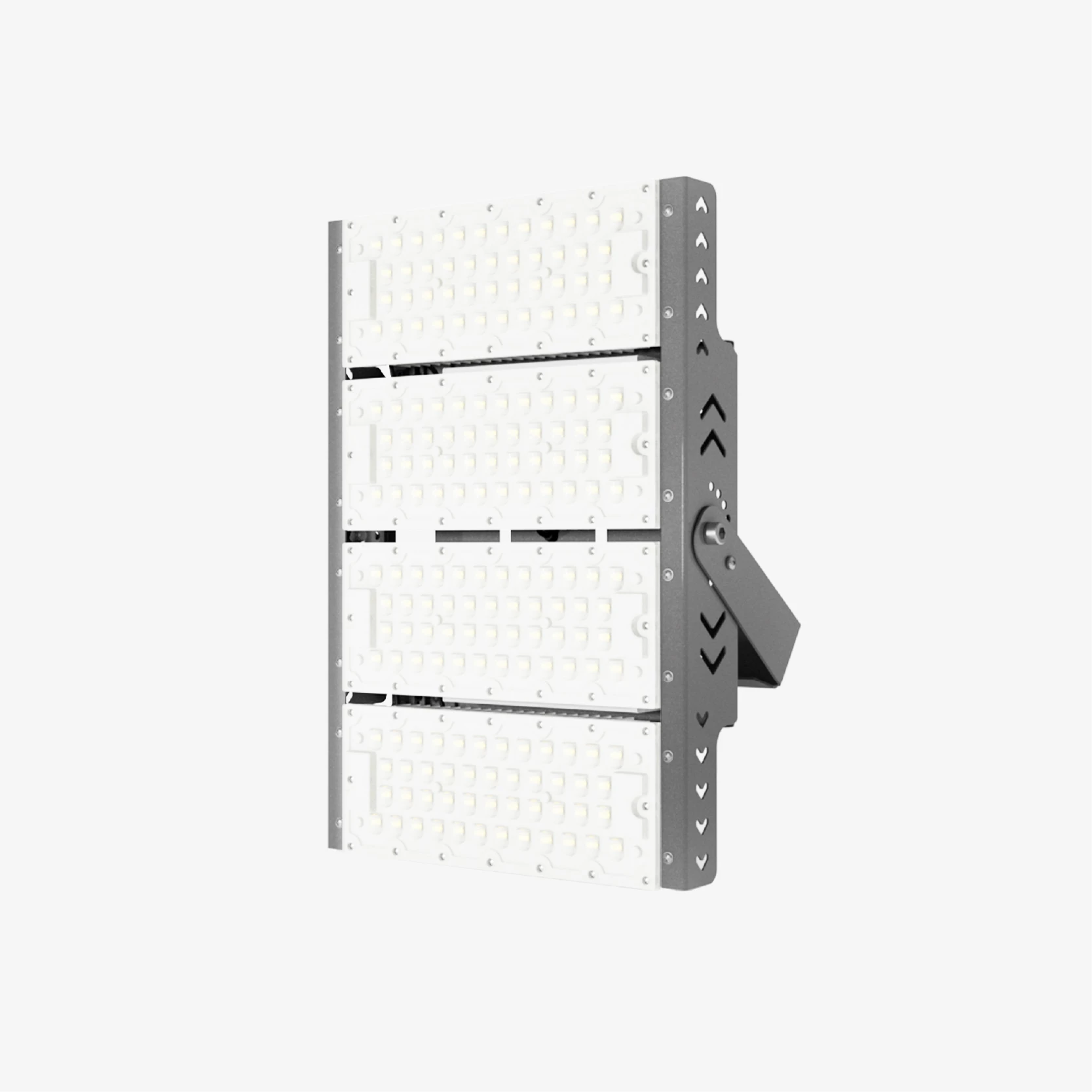

HBM03 LED HIGHBAY
Model: HBM03 200W; HBM03 400W
Power (W)
200/400
Voltage (V)
100÷277/120/220÷240
Power factor
0.95
Luminous flux (lm)
30000/60000
Luminous efficacy (lm/W)
135/150
CRI (Ra)
70
Life span (hrs)
50,000
Beam angle
90
CCT (K)
4000/5000
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled and driver designed by Rang Dong with excellent
High efficacy at 150 lm/W
Die-cast aluminum fin heatsink design with perfect heat dissipation
PC optical lens with high lighting transmittance and desired lighting distribution
IP66
CE, KC certified
Long lifespan: 50,000 hours, saving the maintenance cost
Options:
Voltage: 120/ 220÷240/ 100÷277V
Driver: non isolation /isolation
Surrge protection: 10kV/20kV

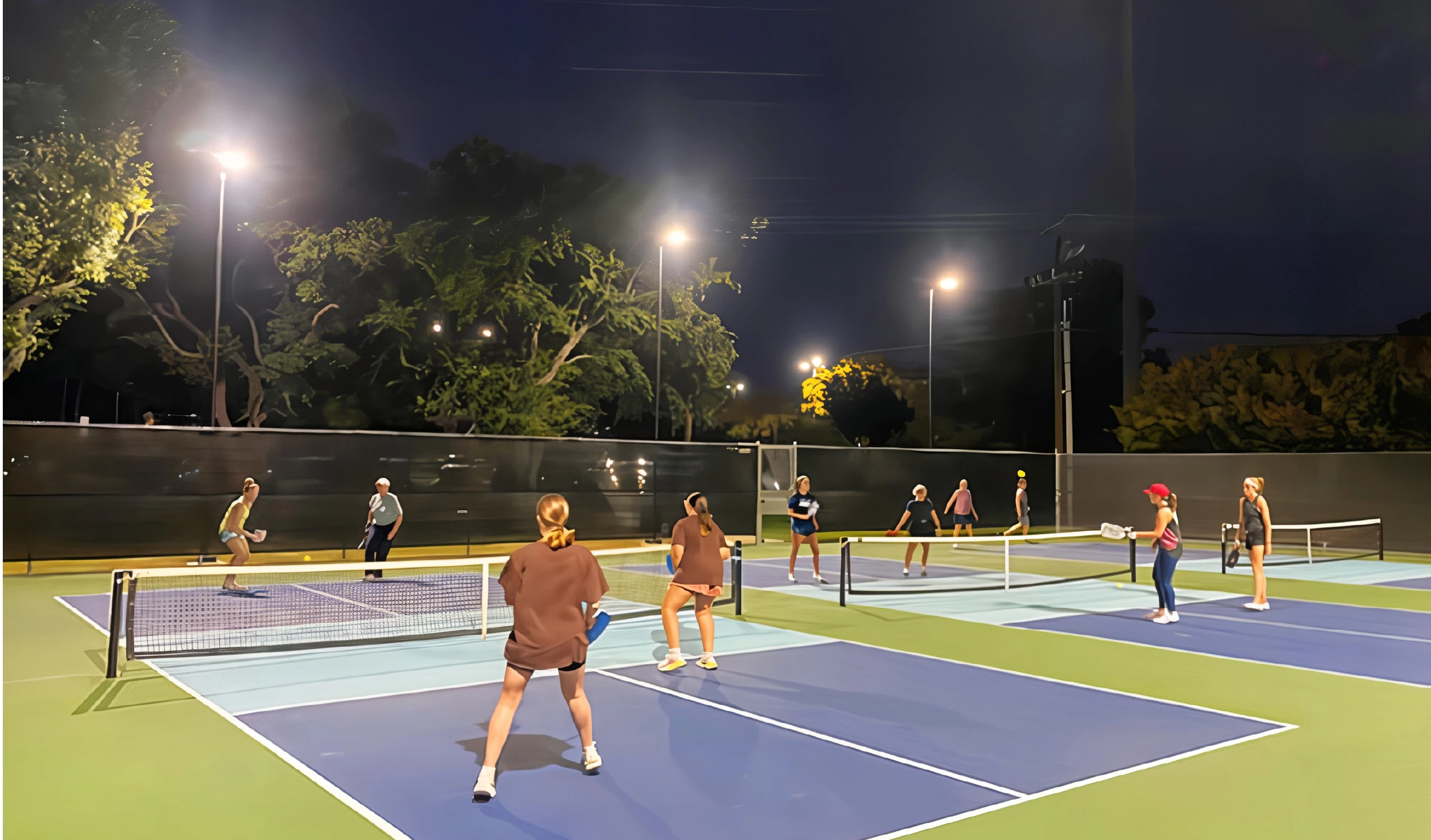

APPLICATIONS
Warehouses, factories, stadiums, tunnels, etc.

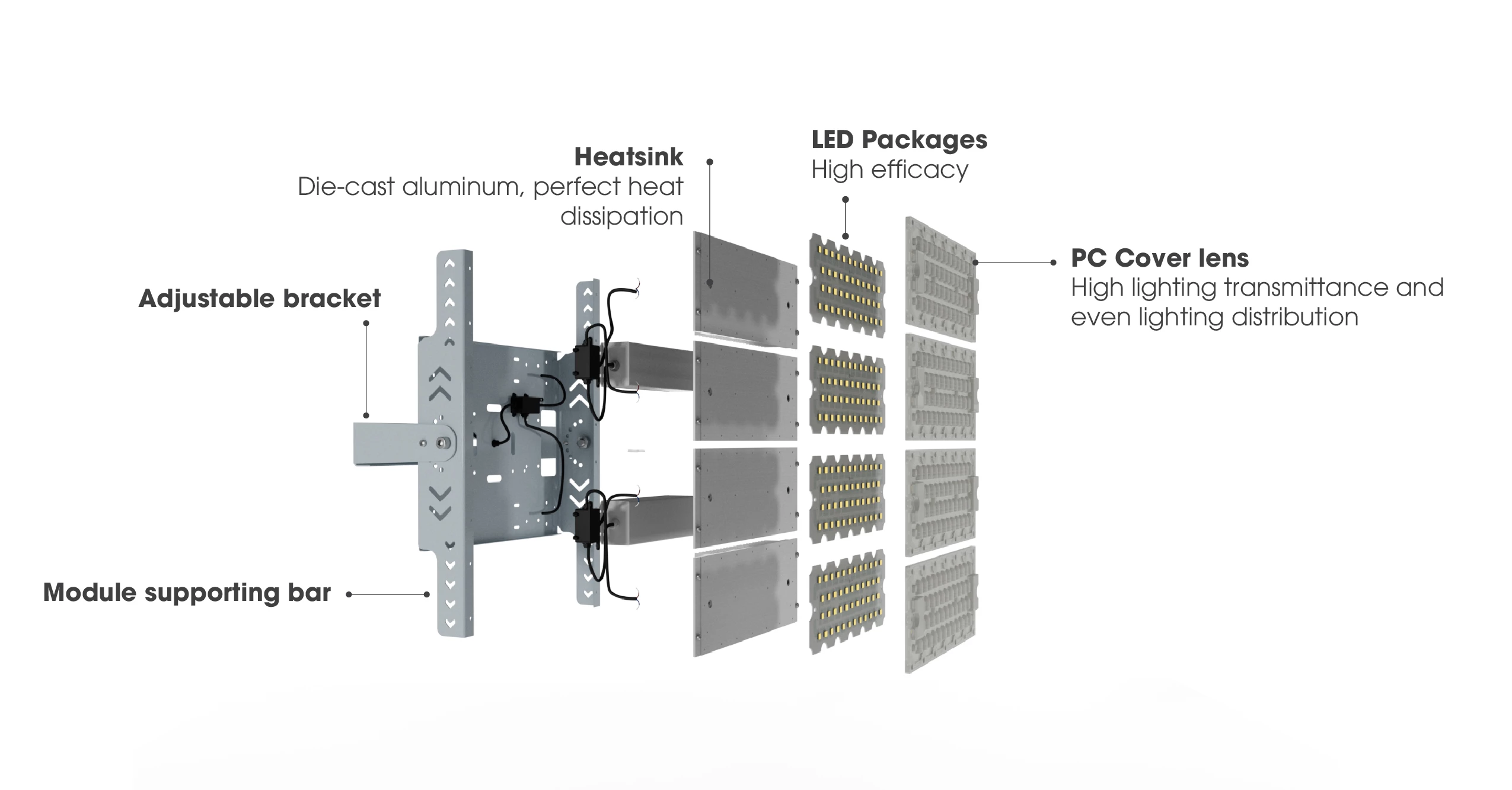

PRODUCT DETAILS

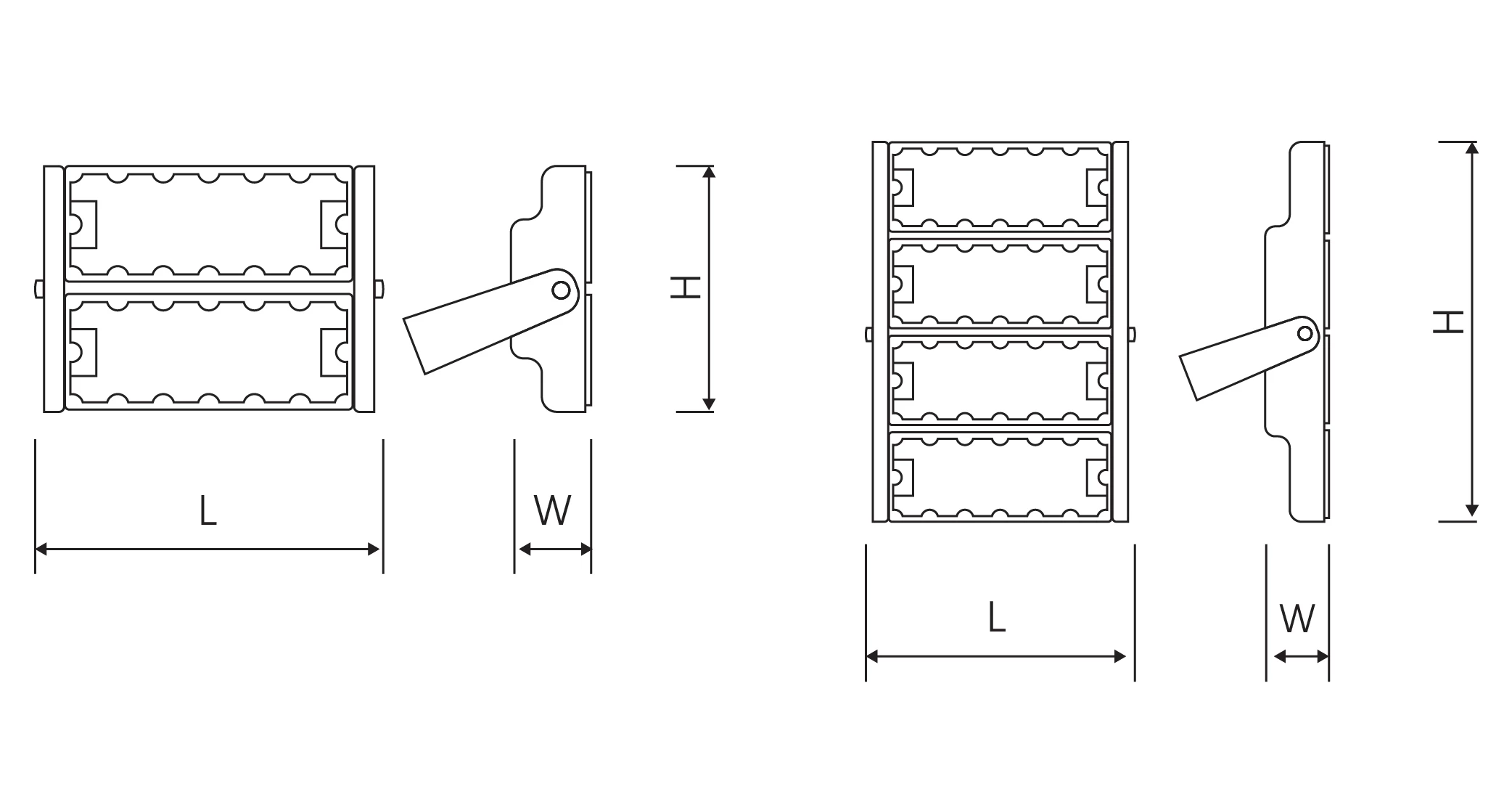

PRODUCT SPECIFICATIONS
Model
Dimension
LxWxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Lifespan
(hrs)
HBM03 200W
350x280x85
200
120/220÷240/100÷277
0.95
30000
135
4000/5000
70
90
50,000
HBM03 400W
495x350x115
400
120/220÷240/100÷277
0.95
60000
150
4000/5000
70
90
50,000
Capacity:
6.2 million pieces per year
Customizable:
Power, Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/5000/6500K), CRI (80/Sunlike), Driver (non isolation/isolation/Dim- Triac), lifespan, etc.

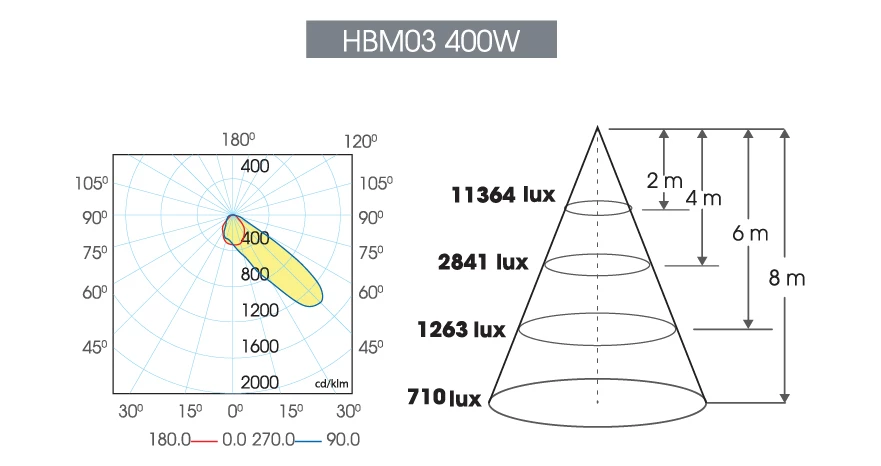

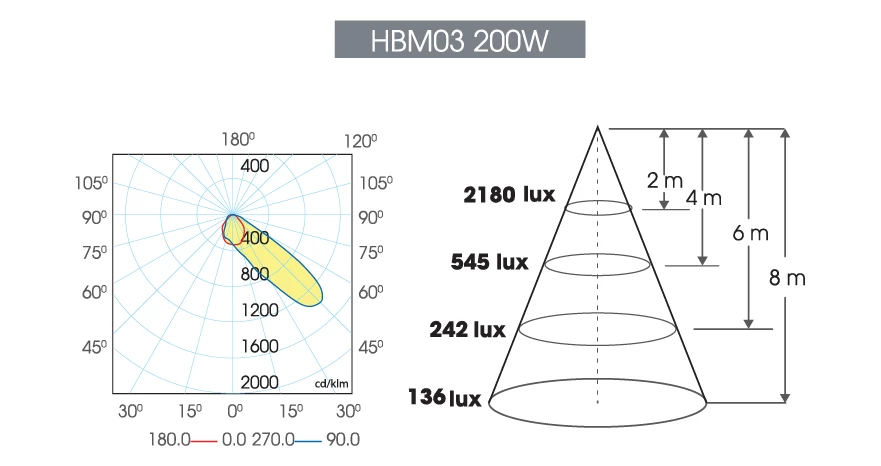

LUMINOUS INTENSITY DISTRIBUTION

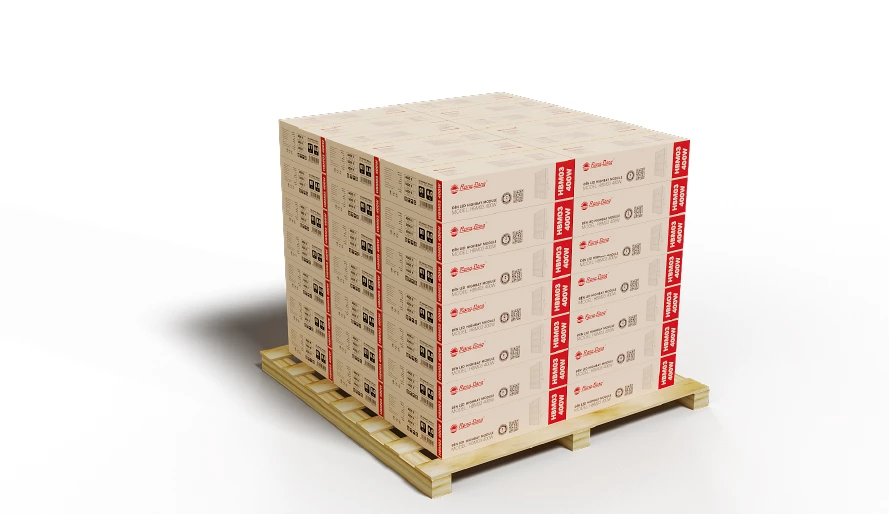

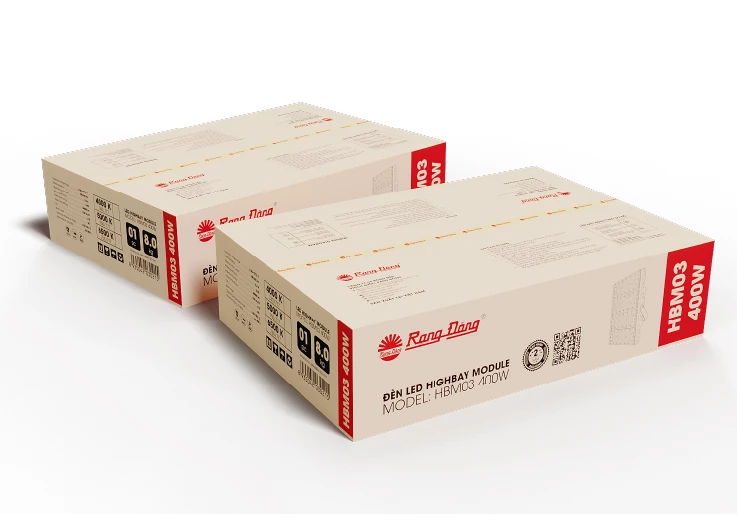

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
HBM03 200W
1
1903
4370
HBM03 400W
1
982
2255
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD

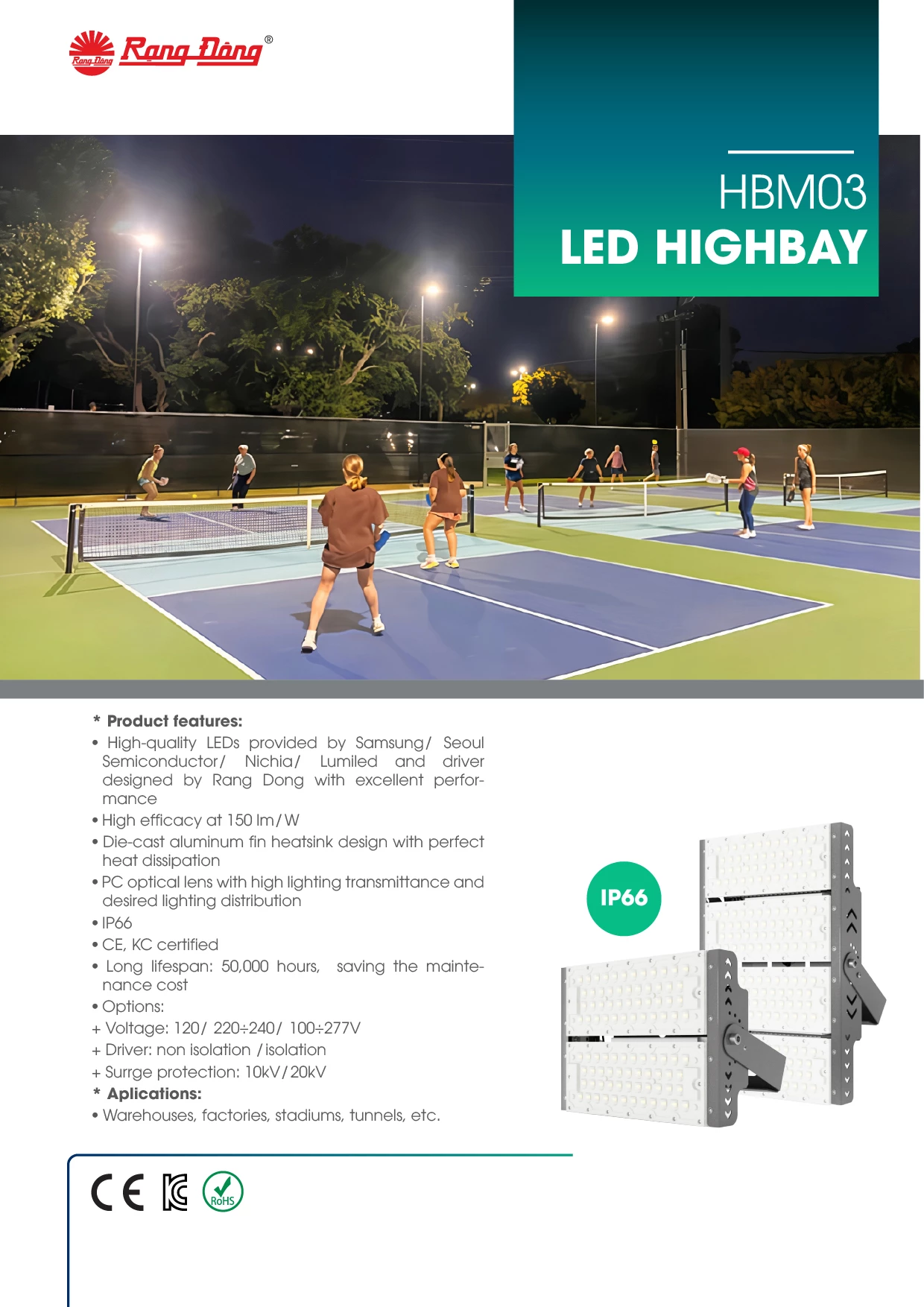

HBM03 LED HIGHBAY
DOWNLOAD
