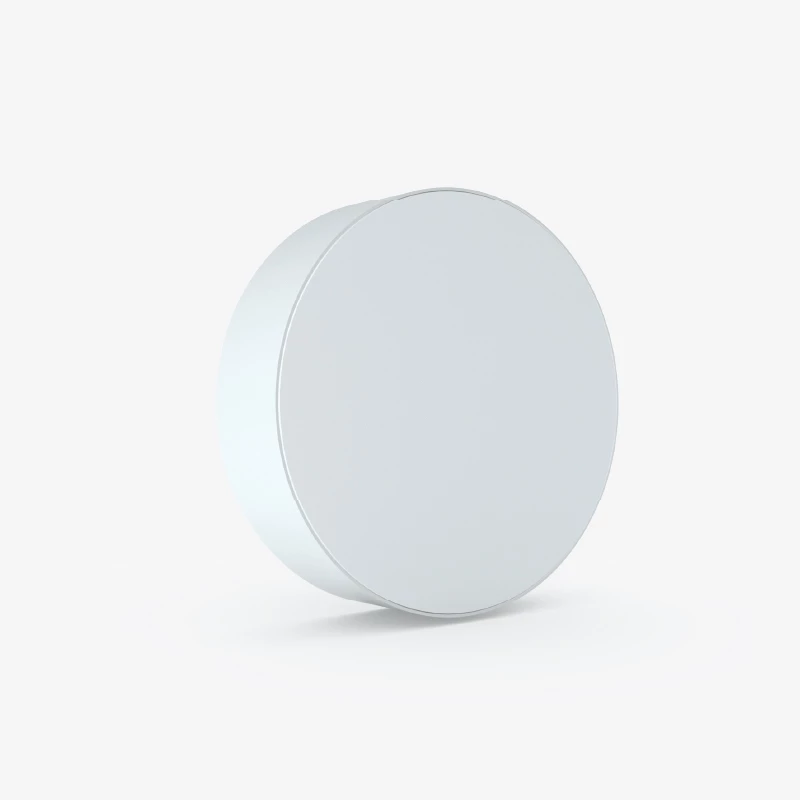

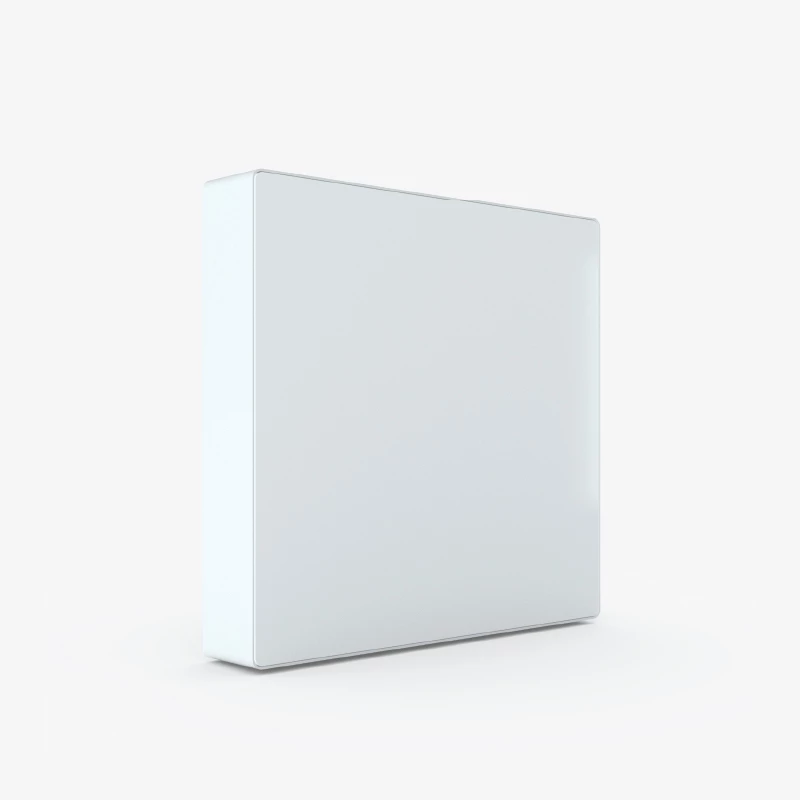

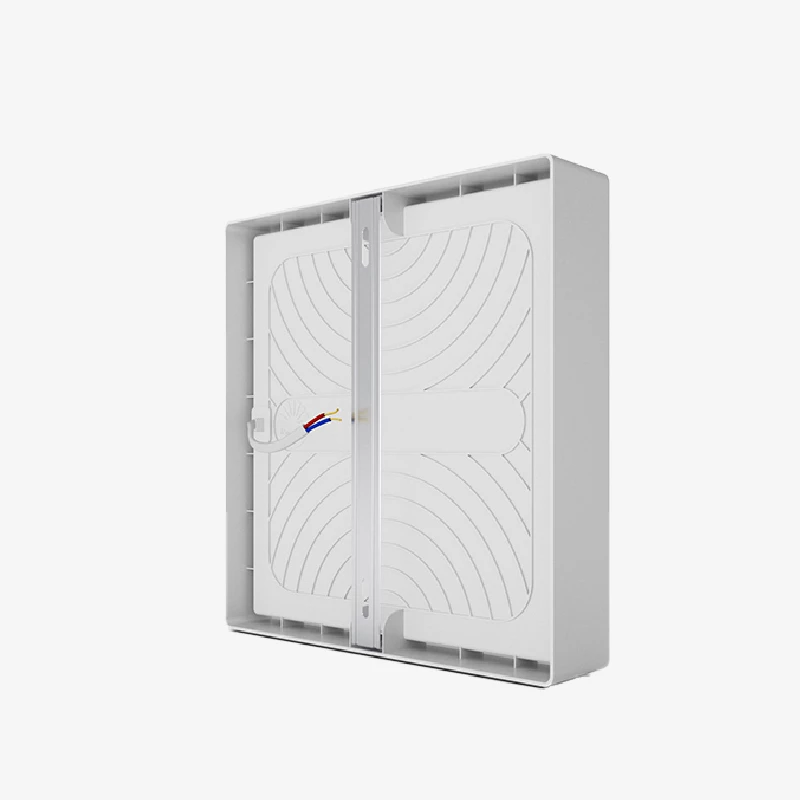

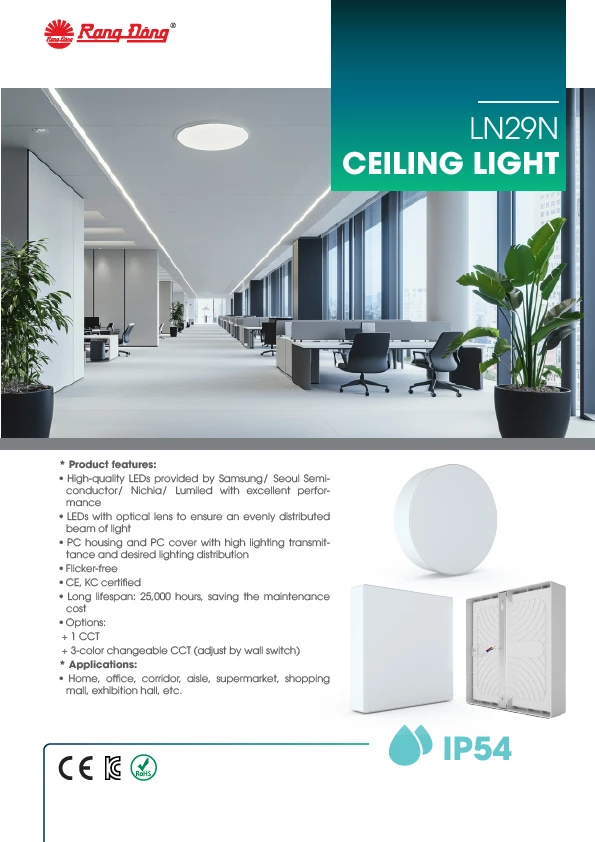

LN29N CEILING LIGHT

Model: LN29N 170/12W; LN29N 170x170/12W; LN29N 220/18W; LN29N 220x220/18W; LN29N 300/24W; LN29N 300x300/24W; LN29N DM 170/12W; LN29N DM 170x170/12W; LN29N DM 220/18W; LN29N DM 220x220/18W; LN29N DM 300/24W; LN29N DM 300x300/24W

Power (W)	12/18/24/50/60
Voltage (V)	100 ÷ 277/120/220÷240
Power factor	0.5/0.9
Luminous efficacy (lm/W)	68/72/75/80/83
CRI (Ra)	80
Life span (hrs)	25,000
Beam angle	120
CCT (K)	3000/4000/5000/6500

SHOW ALL

Certifications

GET THE LATEST PRICE

FEATURES

SPECIFICATIONS

DOWNLOAD

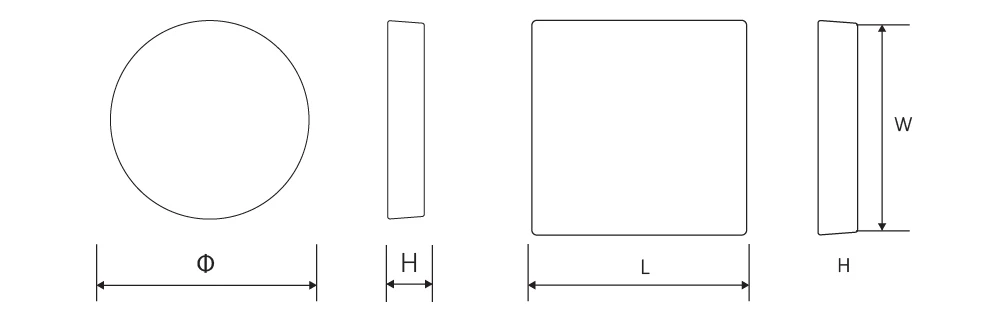

Model	Dimension LxWxH (mm)	Power (W)	Voltage (V)	Power factor	Luminous flux (lm)	Luminous efficacy (lm/W)	CCT (K)	CRI (Ra)	Beam angle (°)	Lifespan (hrs)
LN29N 170/12W	160x43	12	120/220÷240/100÷277	0,5/0,9	810/900	68/75	3000/4000/6500	80	120	25000
LN29N 170x170/12W	160x160x43	12	120/220÷240/100÷277	0,5/0,9	810/900	68/75	3000/4000/6500	80	120	25000
LN29N 220/18W	220x43	18	120/220÷240/100÷277	0,5/0,9	1300/1450	72/80	3000/4000/6500	80	120	25000
LN29N 220x220/18W	220x220x43	18	120/220÷240/100÷277	0,5/0,9	1300/1450	72/80	3000/4000/6500	80	120	25000
LN29N 300/24W	300x43	24	120/220÷240/100÷277	0,5/0,9	1800/2000	75/83	3000/4000/6500	80	120	25000
LN29N 300x300/24W	300x300x43	24	120/220÷240/100÷277	0,5/0,9	1800/2000	75/83	3000/4000/6500	80	120	25000
LN29N DM 170/12W	160x43	12	120/220÷240/100÷277	0,5/0,9	810/900	68/75	3CCT 3000-4000-6500	80	120	25000
LN29N DM 170x170/12W	160x160x43	12	120/220÷240/100÷277	0,5/0,9	810/900	68/75	3CCT 3000-4000-6500	80	120	25000
LN29N DM 220/18W	220x43	18	120/220÷240/100÷277	0,5/0,9	1300/1450	72/80	3CCT 3000-4000-6500	80	120	25000
LN29N DM 220x220/18W	220x220x43	18	120/220÷240/100÷277	0,5/0,9	1300/1450	72/80	3CCT 3000-4000-6500	80	120	25000
LN29N DM 300/24W	300x43	24	120/220÷240/100÷277	0,5/0,9	1800/2000	75/83	3CCT 3000-4000-6500	80	120	25000
LN29N DM 300x300/24W	300x300x43	24	120/220÷240/100÷277	0,5/0,9	1800/2000	75/83	3CCT 3000-4000-6500	80	120	25000

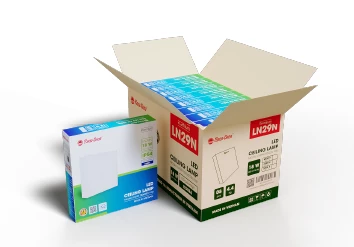

Type of lamps	Quantity in master box (pcs)	Estimated quantity/20'DC (pcs)	Estimated quantity/40'HC (pcs)
LN29N 12W	8	19 032	43 712
LN29N 18W	8	10 952	25 152
LN29N 24W	6	6 546	15 030
Customizable according to customer’s request
