LN30N CEILING LIGHT
Share via
Copied!

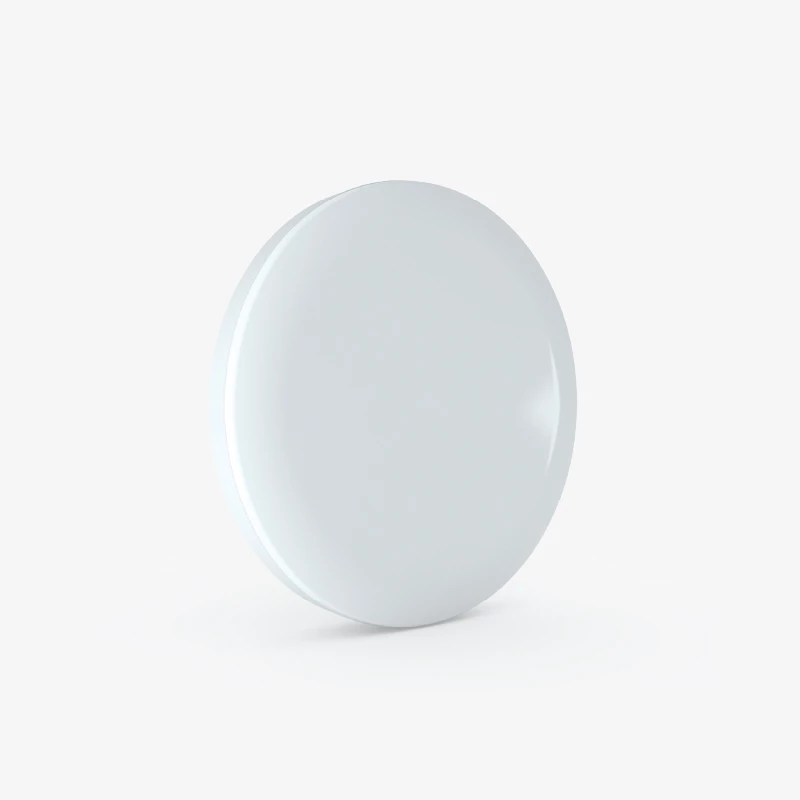

LN30N CEILING LIGHT
Model: LN30N 220/18W; LN30N 220x220/18W; LN30N DM 220/18W; LN30N DM 220x220/18W
Power (W)
18/50/60
Voltage (V)
100 ÷ 277/120/220÷240
Power factor
0.5/0.9
Luminous efficacy (lm/W)
72/80
CRI (Ra)
80
Life span (hrs)
25,000
Beam angle
120
CCT (K)
3000/4000/5000/6500
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
LEDs with optical lens to ensure an evenly distributed beam of light
PC housing and PC cover with high lighting transmittance and desired lighting distribution
Flicker-free
CE, KC certified
Long lifespan: 25,000 hours, saving the maintenance cost
Options:
1 CCT
3-color changeable CCT (adjust by wall switch)

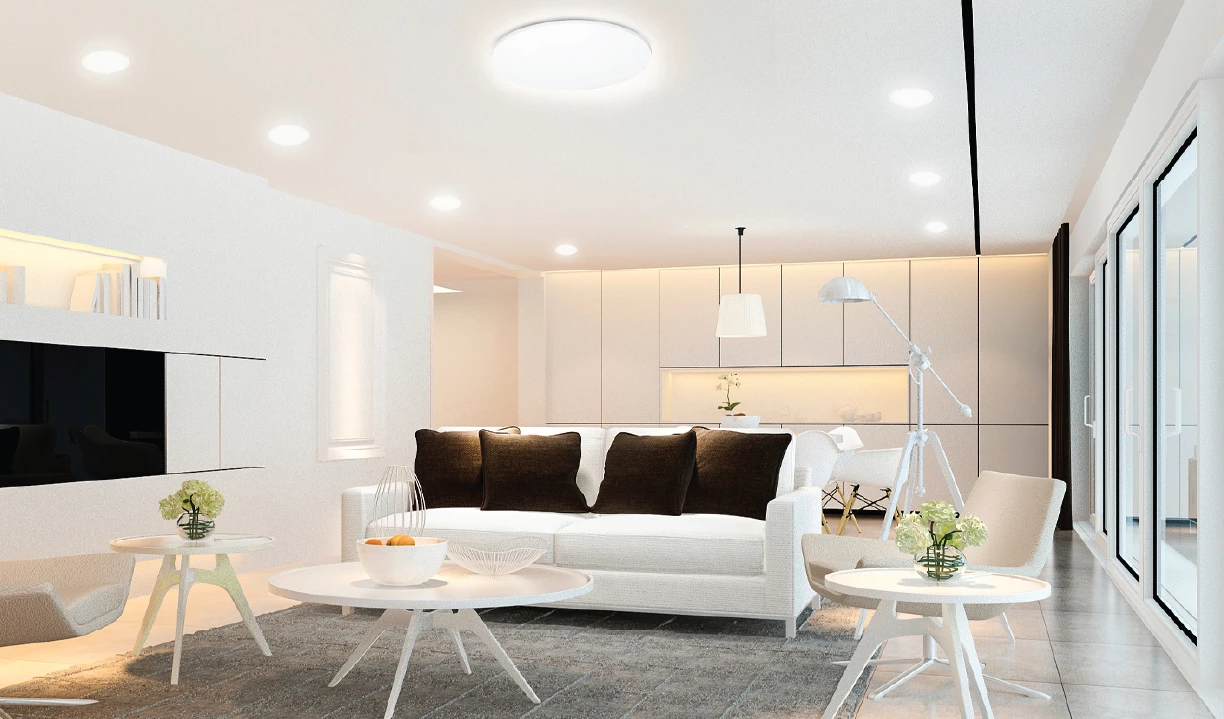

APPLICATIONS
Home, office, corridor, aisle, supermarket, shopping mall, exhibition hall, etc.

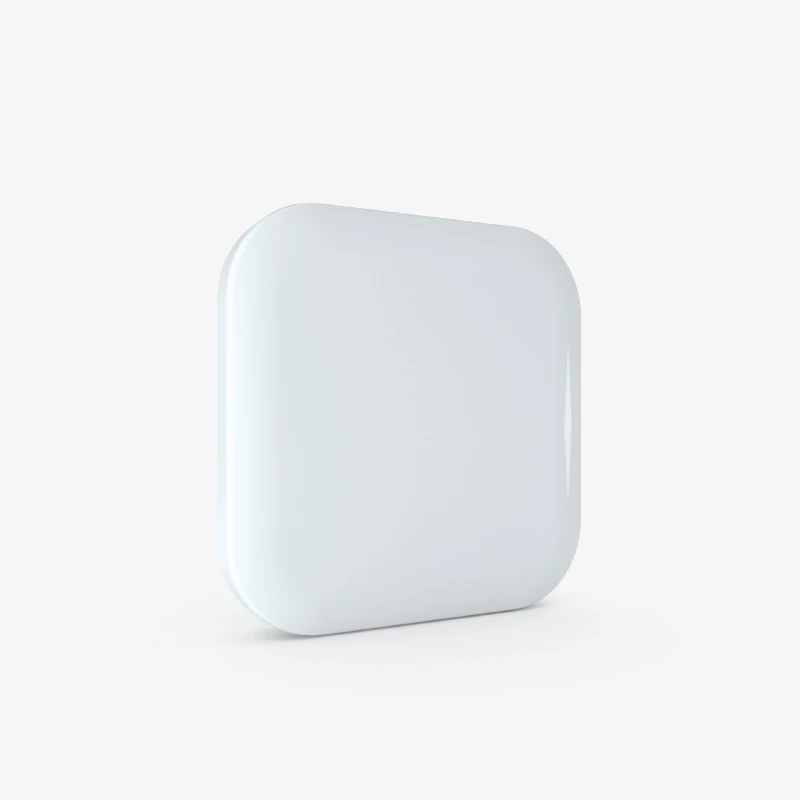

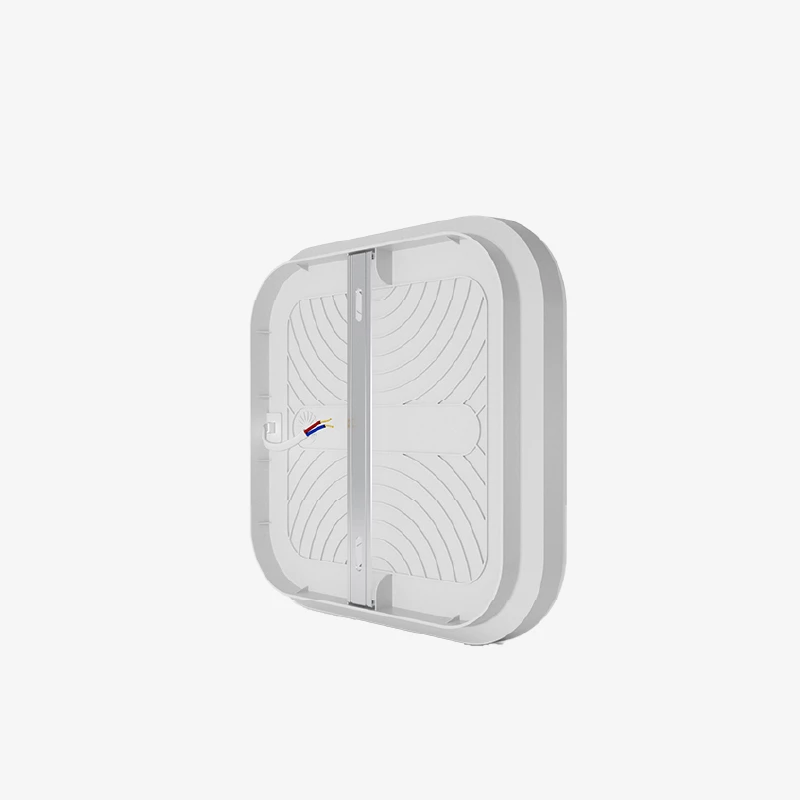

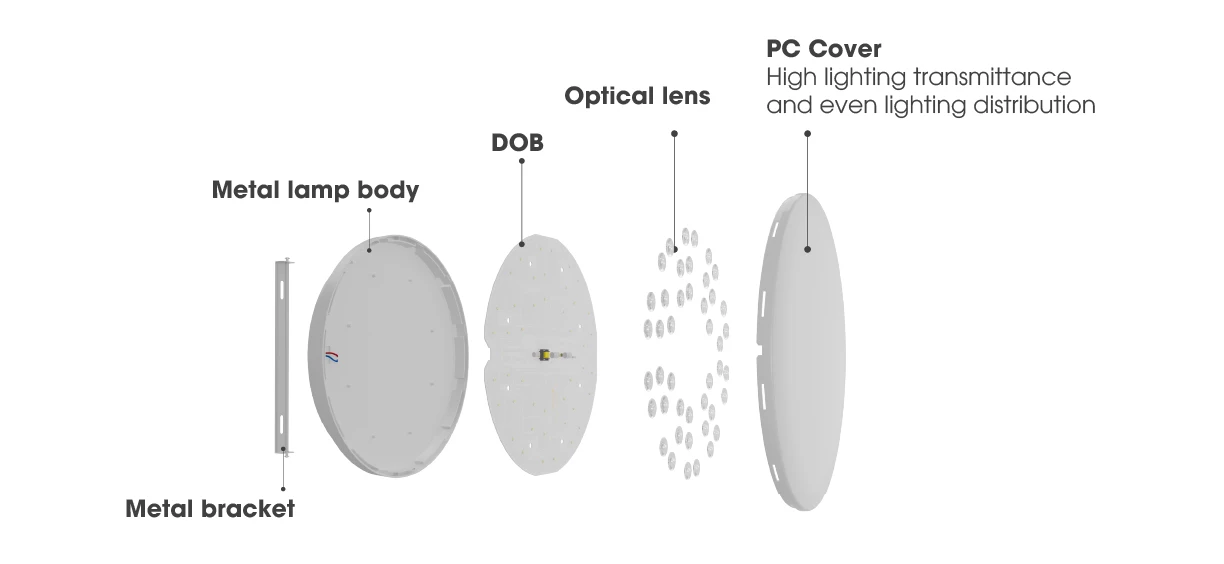

PRODUCT DETAILS
PRODUCT SPECIFICATIONS

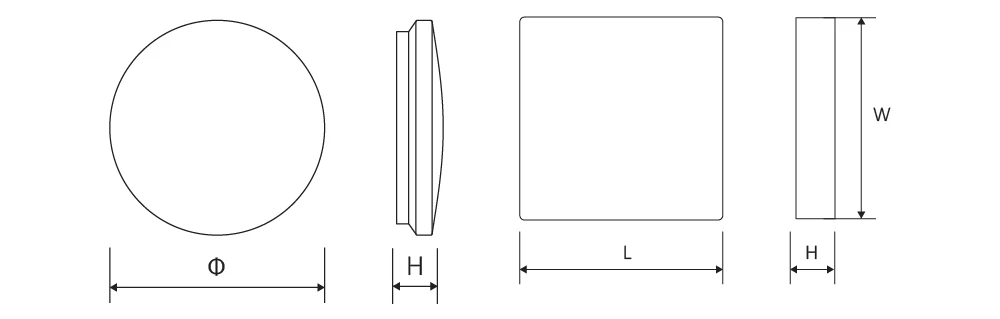

Model
Dimension
LxWxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Lifespan
(hrs)
LN30N 220/18W
220x43
18
120/220÷240/100÷277
0,5/0,9
1300/1450
72/80
3000/4000/6500
80
120
25000
LN30N 220x220/18W
220x220x43
18
120/220÷240/100÷277
0,5/0,9
1300/1450
72/80
3000/4000/6500
80
120
25000
LN30N DM 220/18W
220x43
18
120/220÷240/100÷277
0,5/0,9
1300/1450
72/80
3CCT 3000-4000-6500
80
120
25000
LN30N DM 220x220/18W
220x220x43
18
120/220÷240/100÷277
0,5/0,9
1300/1450
72/80
3CCT 3000-4000-6500
80
120
25000
Capacity:
3.2 million pieces per year
Customizable:
Power (50/60W), Voltage (120/220÷240/100÷277), PF, lm/W, CCT (3000/4000/5000/6500K), lifespan, etc.

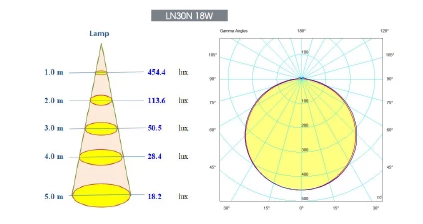

LUMINOUS INTENSITY DISTRIBUTION

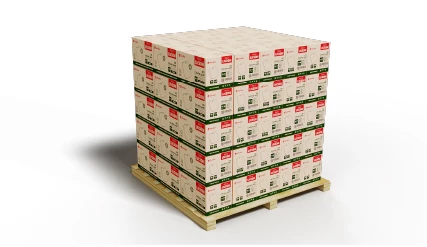

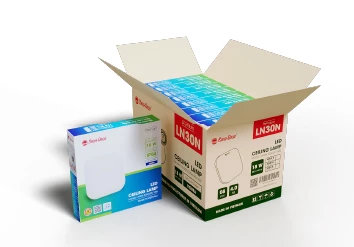

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
LN30N 18W
8
10 992
25 232
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD

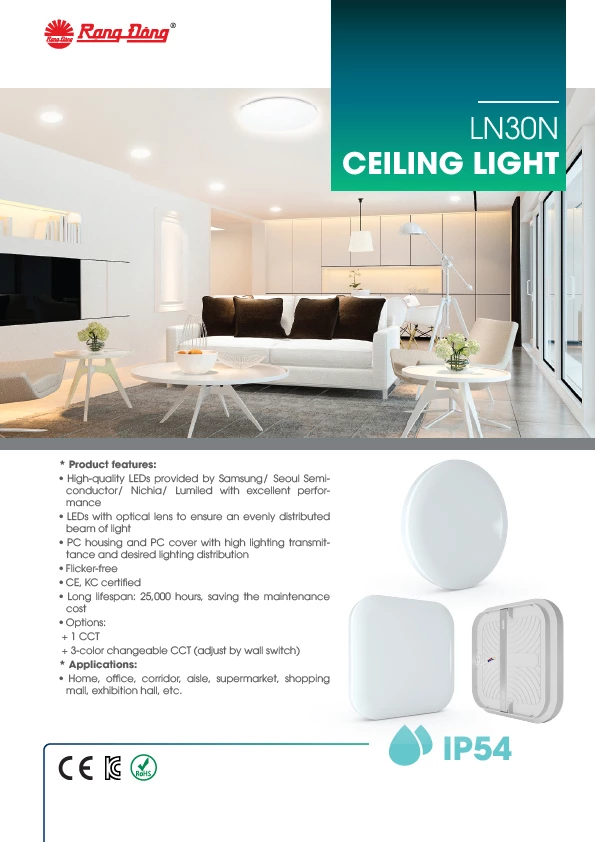

LN30N CEILING LIGHT
