Tips on Choosing an Exhaust Fan for Effective, Quiet Ventilation
Selecting the right exhaust fan plays a crucial role in keeping fresh air, removing odors, and controlling humidity indoors. Many issues, such as weak airflow, excessive noise or poor suitability may emerge only after installation of the fan. Knowing how to correctly choose the fan helps avoid unnecessary replacement costs and ensures optimal performance. The article below provides several tips on the fan selection, common mistake, and also suggests suitable exhaust fans for different applications.
Common mistakes
One of the most frequent mistakes is selecting a ceiling-mounted vertical-duct exhaust fan for systems with bent or curved air ducts. Since this type is not designed to generate high static pressure, airflow becomes weak and noise levels increase significantly.
On the other hand, some users choose a ceiling-mounted horizontal-duct fan for straight and short duct systems. While this does not cause technical failure, it prevents the fan from reaching its full airflow capacity, resulting in inefficient ventilation and wasted performance.
Another common error is installing a wall-mounted exhaust fan on a gypsum or false ceiling. This complicated installation affects the space aesthetics.
The consequences of these mistakes are reduced ventilation efficiency, increased noise, additional installation costs and time-consuming replacement.
Selection tips
Step 1. Identify installation location
Let’s determine if the exhaust fan will be installed on a wall or a ceiling. Consider ceiling materials such as gypsum, wood or aluminum, and identify whether the air duct runs straight or requires bends. This is the most critical factor in choosing the correct fan type.
Step 2. Calculate room size and ceiling height
Room volume directly affects ventilation requirements. Users should estimate the required Air Changes per Hour (ACH). For residential spaces, an ACH of 10 times per hour or higher is recommended to refresh air quickly and effectively.
Step 3. Select the appropriate fan type:
For ceiling installation with straight, short ducts: ceiling-mounted vertical-duct fans are recommended, offering high airflow capacity.
For ceiling installation with bent or long ducts: ceiling-mounted horizontal-duct fans provide higher static pressure for efficient air movement.
For direct wall installation without ducting: one-way wall-mounted exhaust fans are an optimal solution for quick and simple setup.
Step 4. Choose the correct fan size
Fan size should match the room area:
200 mm: Small rooms under 25–30 m²
250 mm: Medium rooms from 30–40 m²
300 mm: Large rooms or spaces requiring strong ventilation
Rang Dong’s exhaust fan solutions
Based on these selection principles, Rang Dong currently offers three main groups of exhaust fans, classified by installation position and airflow direction.

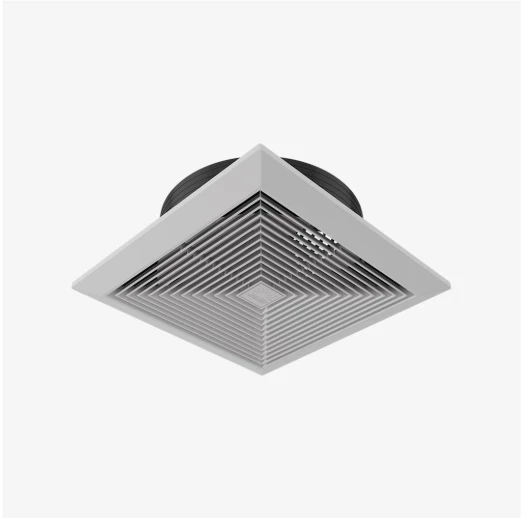

Ceiling-mounted vertical-duct exhaust fans: designed for straight duct systems, delivering high actual airflow from 360 to 1200 cb. m/h, suitable for bathrooms, kitchens, and areas requiring rapid air exchange.

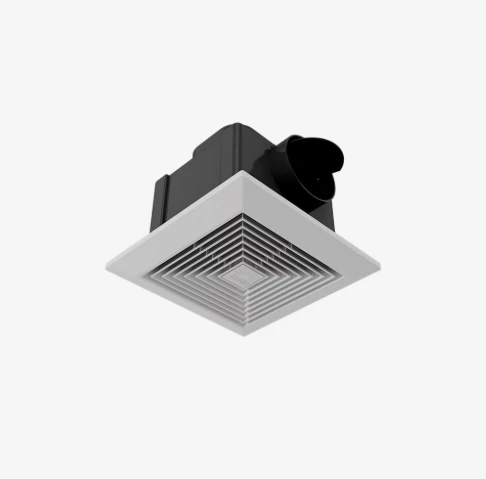

Ceiling-mounted horizontal-duct exhaust fans: generate higher static pressure, making them ideal for bent or long duct systems. These models operate quietly, with noise levels as low as 26–30 dB(A).
One-way wall-mounted exhaust fans: installed directly on walls without complex ducting, offering large airflow capacities from 270 to 1150 cb.m/h, ideal for fast installation in various spaces.
Rang Dong exhaust fans are engineered with thermal safety fuses, V0 fire-resistant materials, dual-bearing motors, and low power consumption ranging from 21–45 watts in order to deliver long-term efficiency and reliability.
By following these guidelines, consumers can achieve effective ventilation, quiet operation and long-lasting performance.
Rang Dong’s exhaust fan solutions provide flexible options that meet both residential and commercial ventilation needs.
