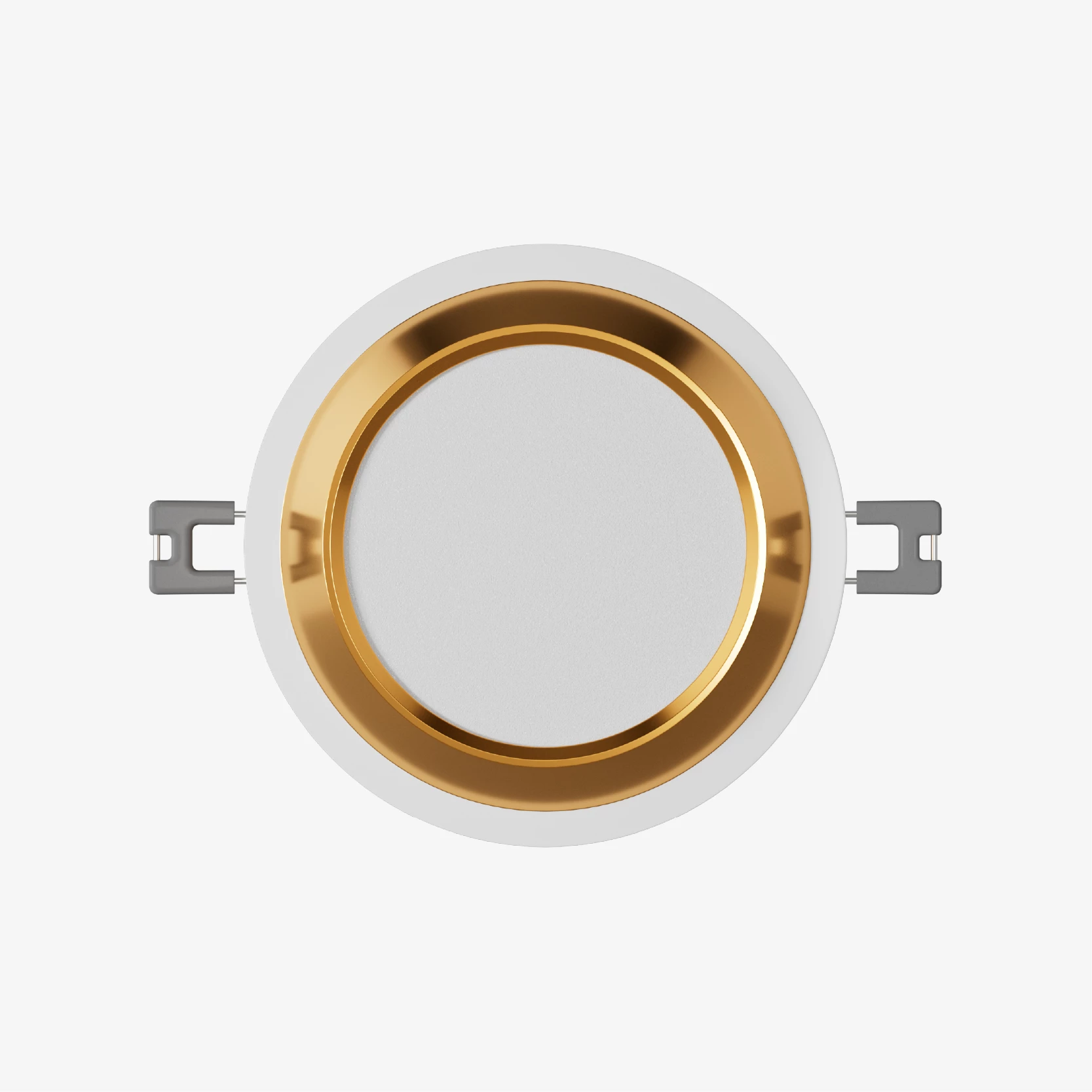

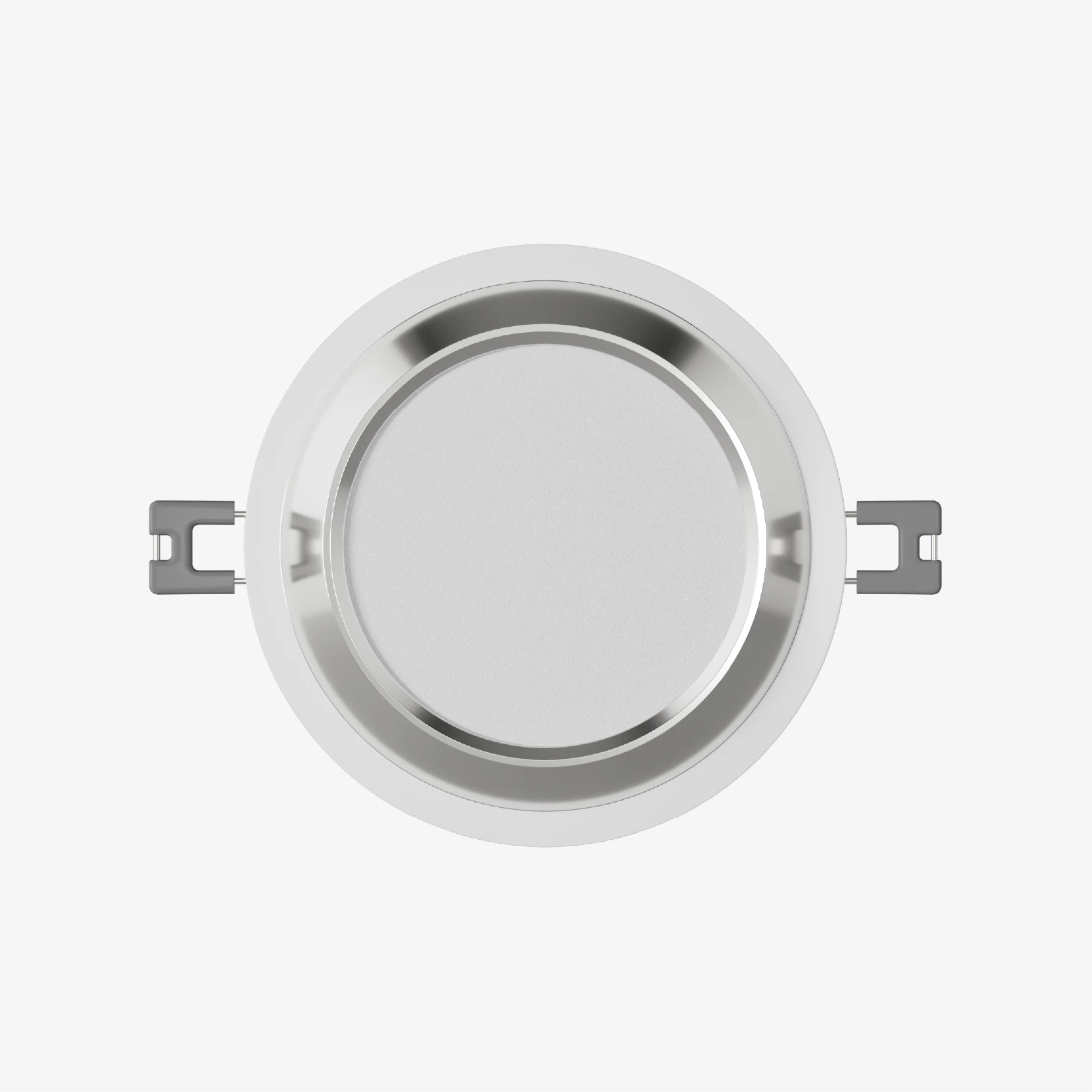

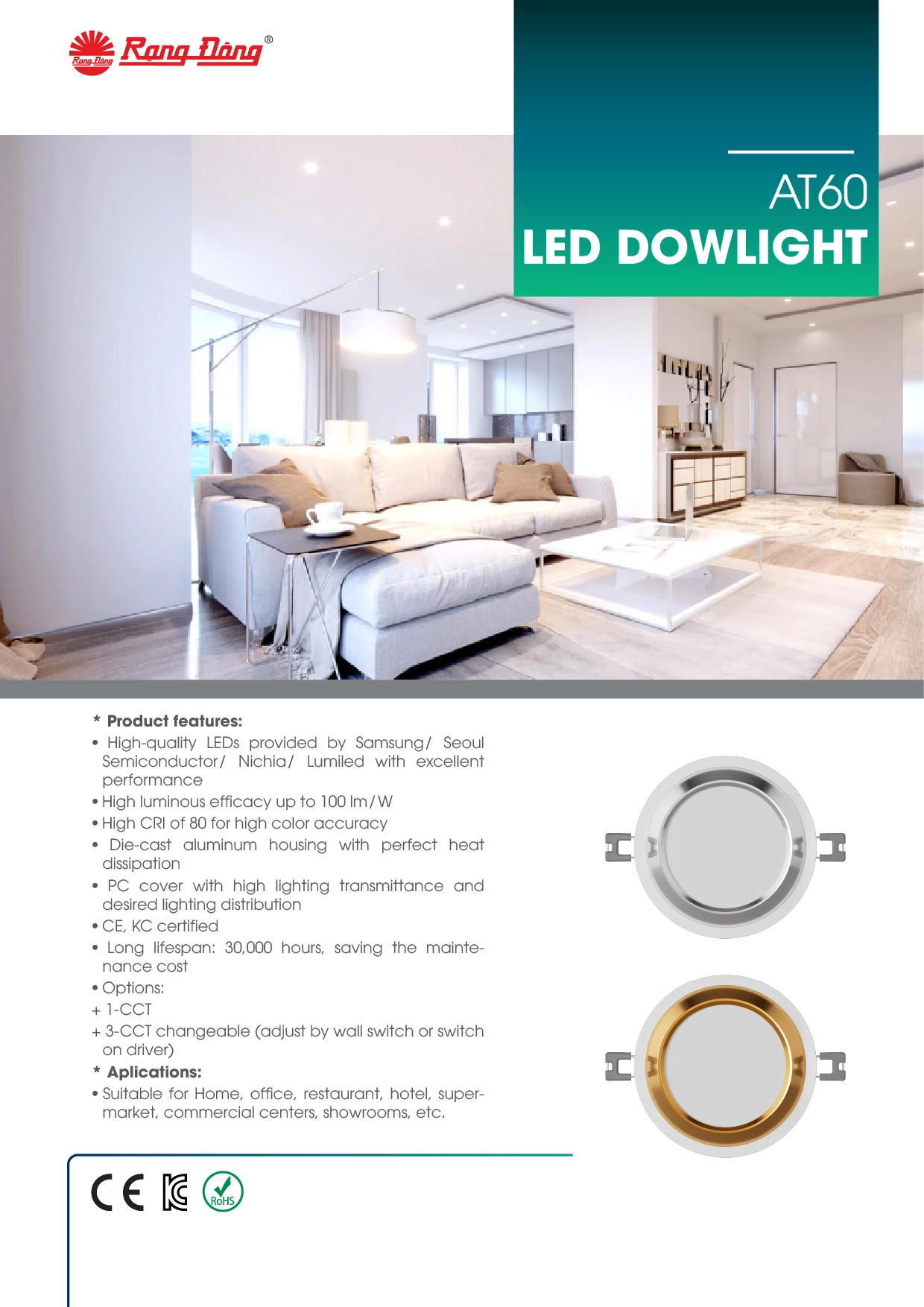

AT60 LED DOWLIGHT
Model: AT60 90/8W; AT60 90/10W; AT60 110/10W; AT60 110/12W
Power (W)
8/10/12
Voltage (V)
100÷277/120/220÷240
Power factor
0.5/0.9
Luminous flux (lm)
800/1200/1000
Luminous efficacy (lm/W)
100
CRI (Ra)
80
Life span (hrs)
30,000
Cut out (mm/Ф)
90/110
Beam angle
105
SHOW ALL
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
High luminous efficacy up to 100 lm/W
High CRI of 80 for high color accuracy
Die-cast aluminum housing with perfect heat dissipation
PC cover with high lighting transmittance and desired lighting distribution
CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
1-CCT
3-CCT changeable (adjust by wall switch or switch on driver)
APPLICATIONS
Suitable for Home, office, restaurant, hotel, supermarket, commercial centers, showrooms, etc.
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
High luminous efficacy up to 100 lm/W
High CRI of 80 for high color accuracy
Die-cast aluminum housing with perfect heat dissipation
PC cover with high lighting transmittance and desired lighting distribution
CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
1-CCT
3-CCT changeable (adjust by wall switch or switch on driver)
APPLICATIONS
Suitable for Home, office, restaurant, hotel, supermarket, commercial centers, showrooms, etc.
PRODUCT DETAILS
PRODUCT SPECIFICATIONS
Model

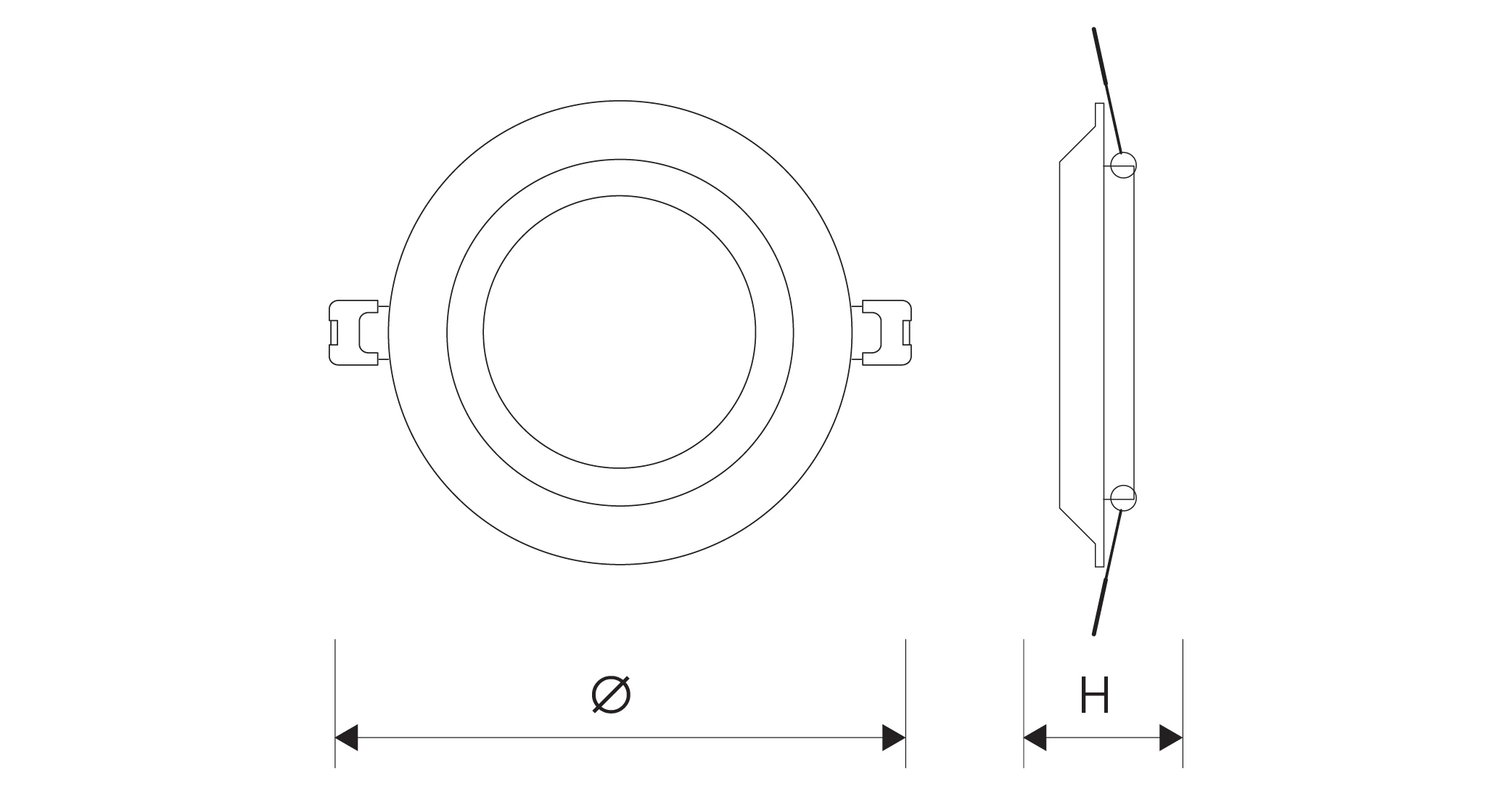

Dimension
ØxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Cut out Øc
(mm)
Lifespan
(hrs)
AT60 90/8W
118x22
8
120/220÷240/100÷277
0.5/0.9
800
100
3000/4000/6500
80
105
90
30,000
AT60 90/10W
118x22
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000/4000/6500
80
105
90
30,000
AT60 110/10W
138x22
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000/4000/6500
80
105
110
30,000
AT60 110/12W
138x22
12
120/220÷240/100÷277
0.5/0.9
1200
100
3000/4000/6500
80
105
110
30,000
Capacity:
11.2 million pieces per year
Customizable:
Power, Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/5000/6500K), CRI (80/Sunlike), Driver (non isolation/isolation/Dim- Triac), lifespan, etc.

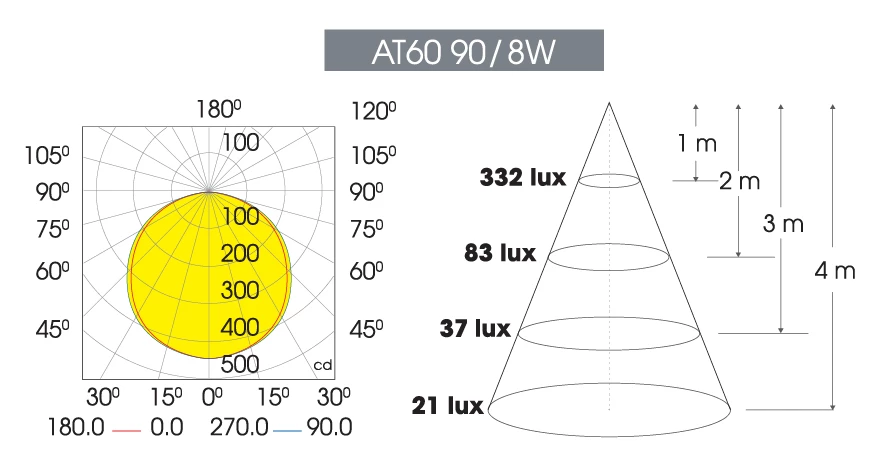

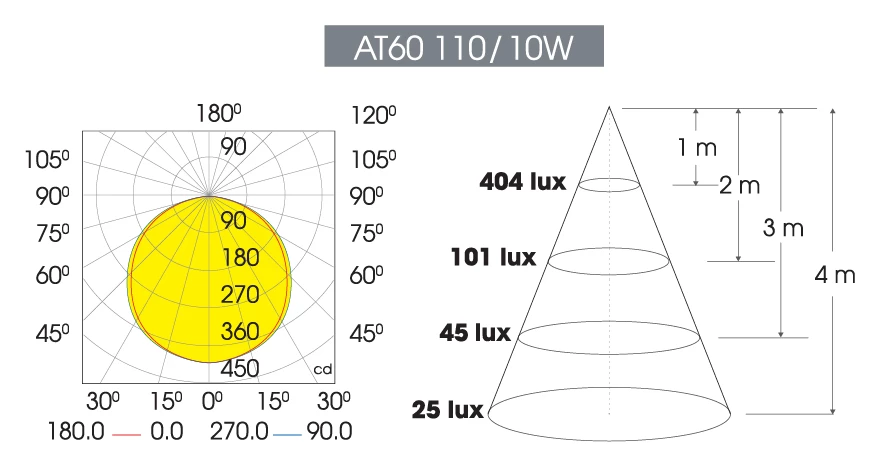

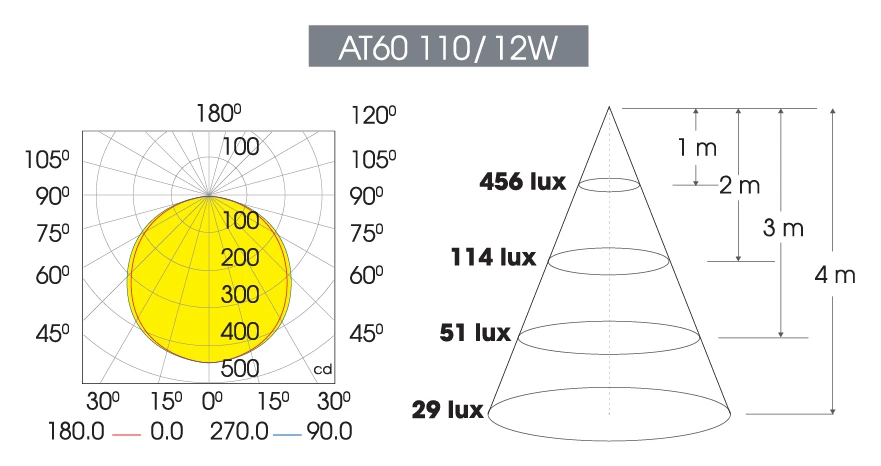

LUMINOUS INTENSITY DISTRIBUTION

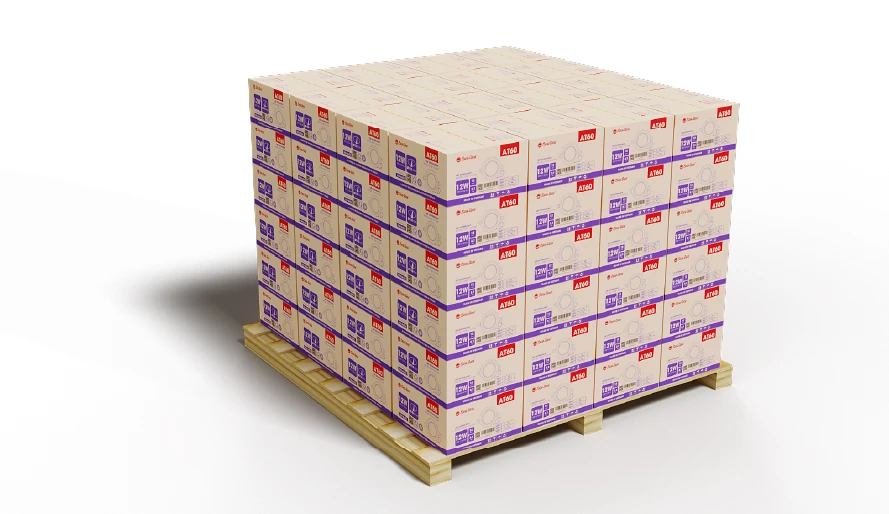

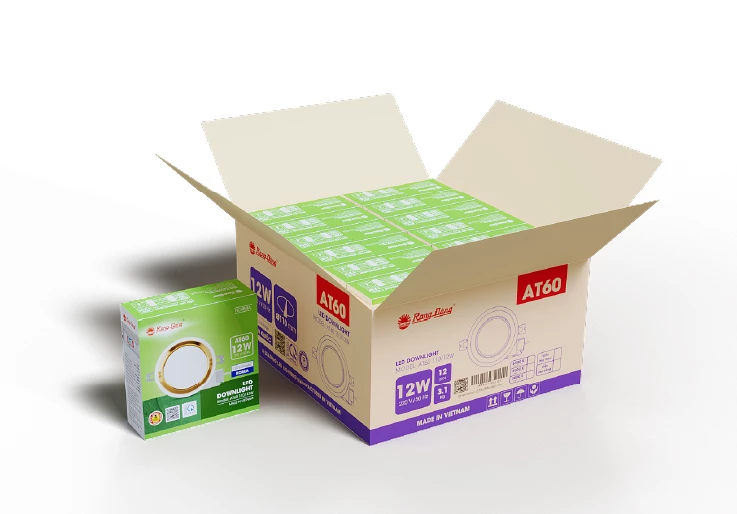

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
AT60 90/8W & 10W
24
34 272
78 696
AT60 110/10W & 12W
12
24 144
55 440
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
