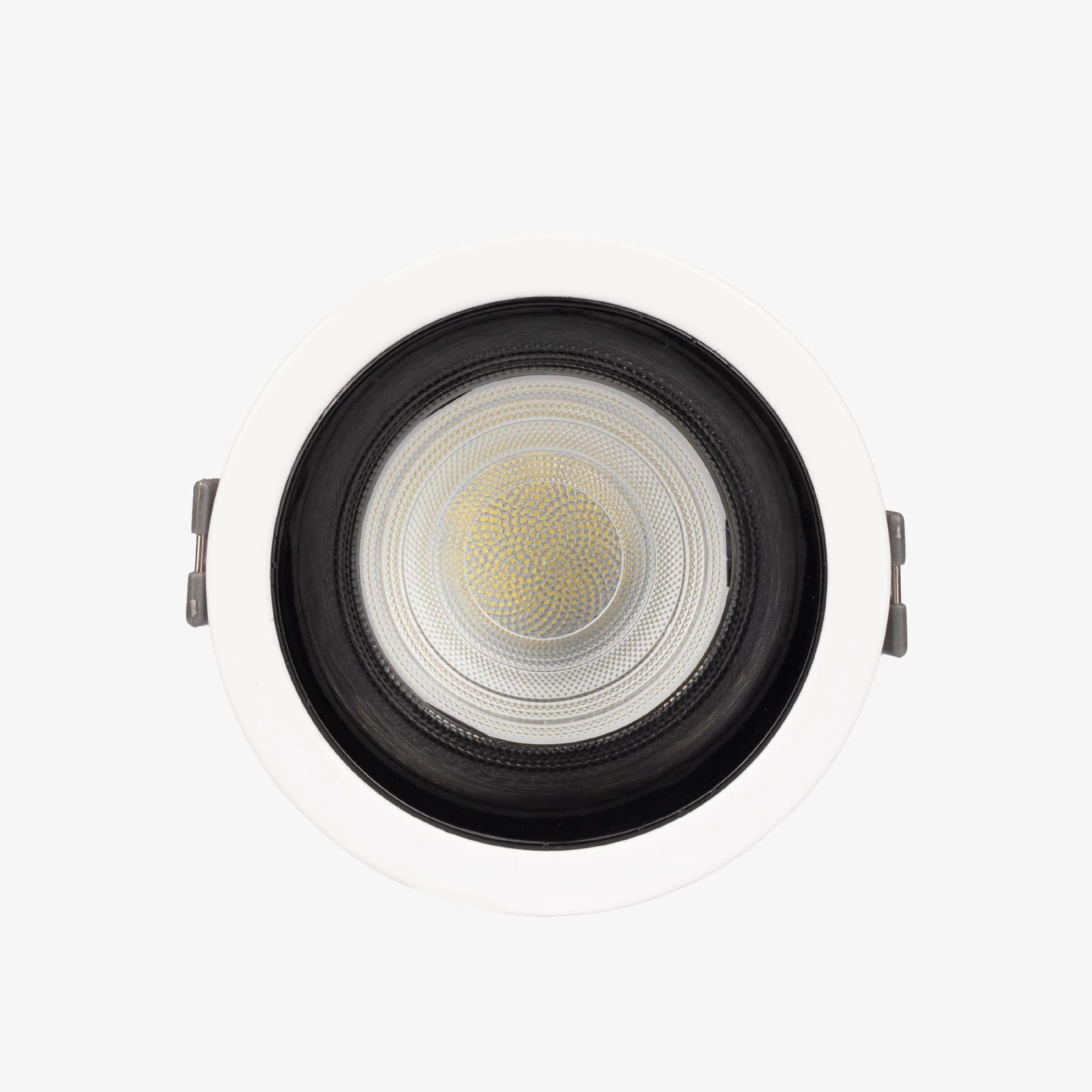

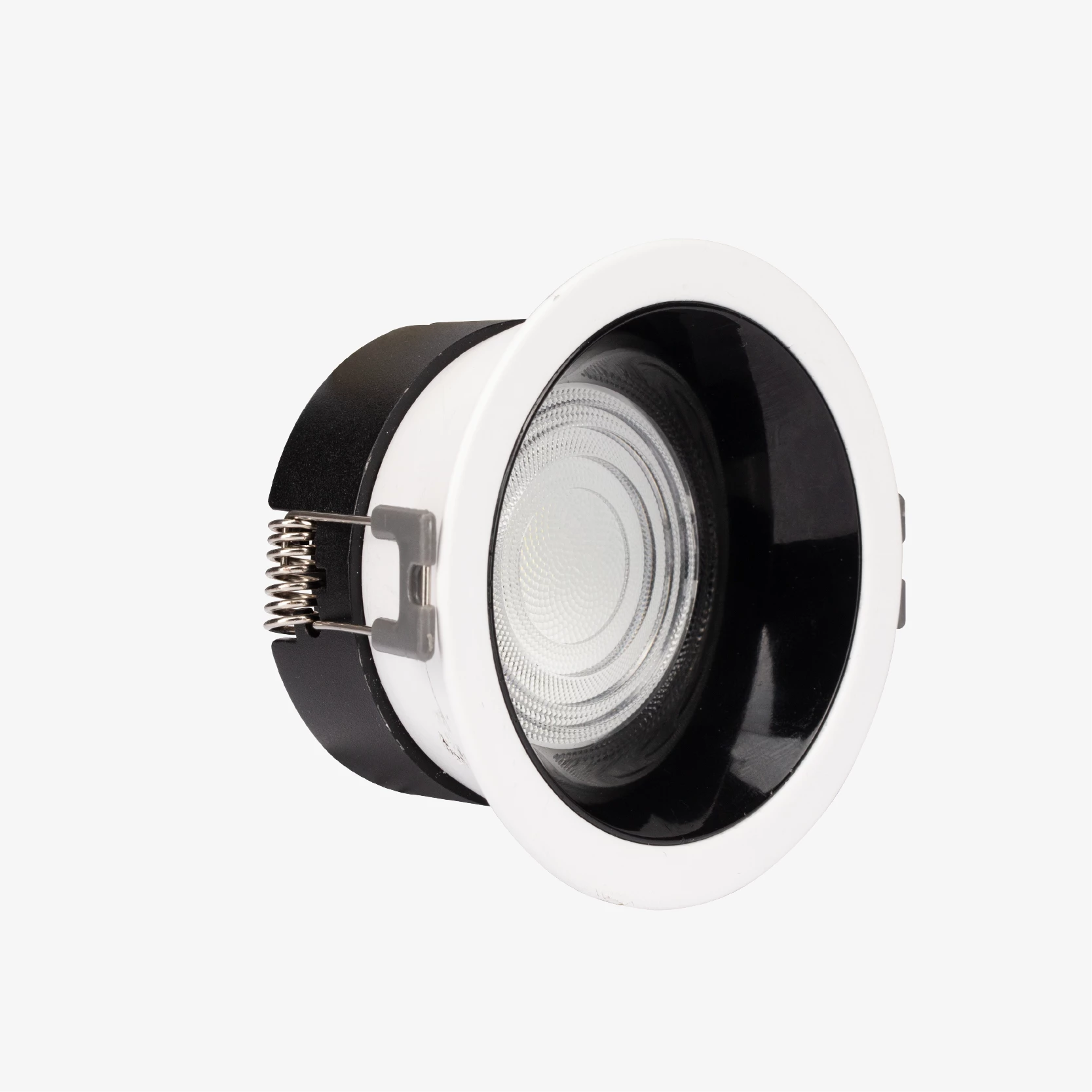

AT62 LED DOWNLIGHT
Model: AT62 76/8W; AT62 76/10W; AT62 90/12W
Power (W)
8/10/12
Voltage (V)
100÷277/120/220÷240
Power factor
0.5/0.9
Luminous flux (lm)
800/1200/1000
Luminous efficacy (lm/W)
100
CRI (Ra)
80
Life span (hrs)
30,000
Cut out (mm/Ф)
76/90
Beam angle
60/75
SHOW ALL
null
Certifications
GET THE LATEST PRICE
GET THE LATEST PRICE
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
SPECIFICATIONS
DOWNLOAD
PRODUCT FEATURES
High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
High luminous efficacy up to 100 lm/W
High CRI of 80/Sunlike for high color accuracy
Die-cast aluminum housing with perfect heat dissipation
PC cover with high lighting transmittance and desired lighting distribution
CE, KC certified
Long lifespan: 30,000 hours, saving the maintenance cost
Options:
1-CCT
3-CCT changeable (adjust by wall switch or switch on driver)

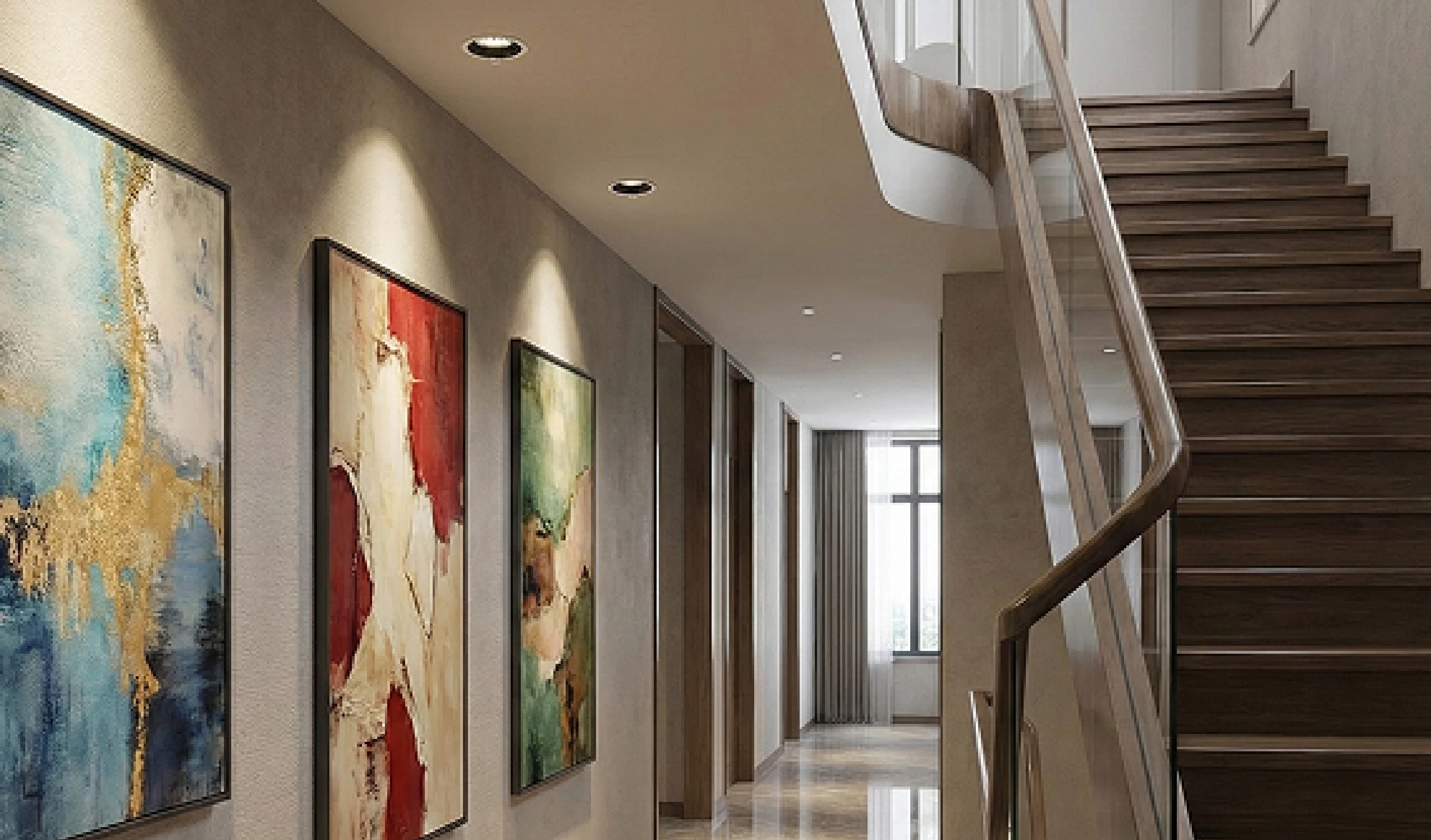

APPLICATIONS
Suitable for various interior spaces, including residential homes, offices, hospitals, schools, and shopping centers., etc.

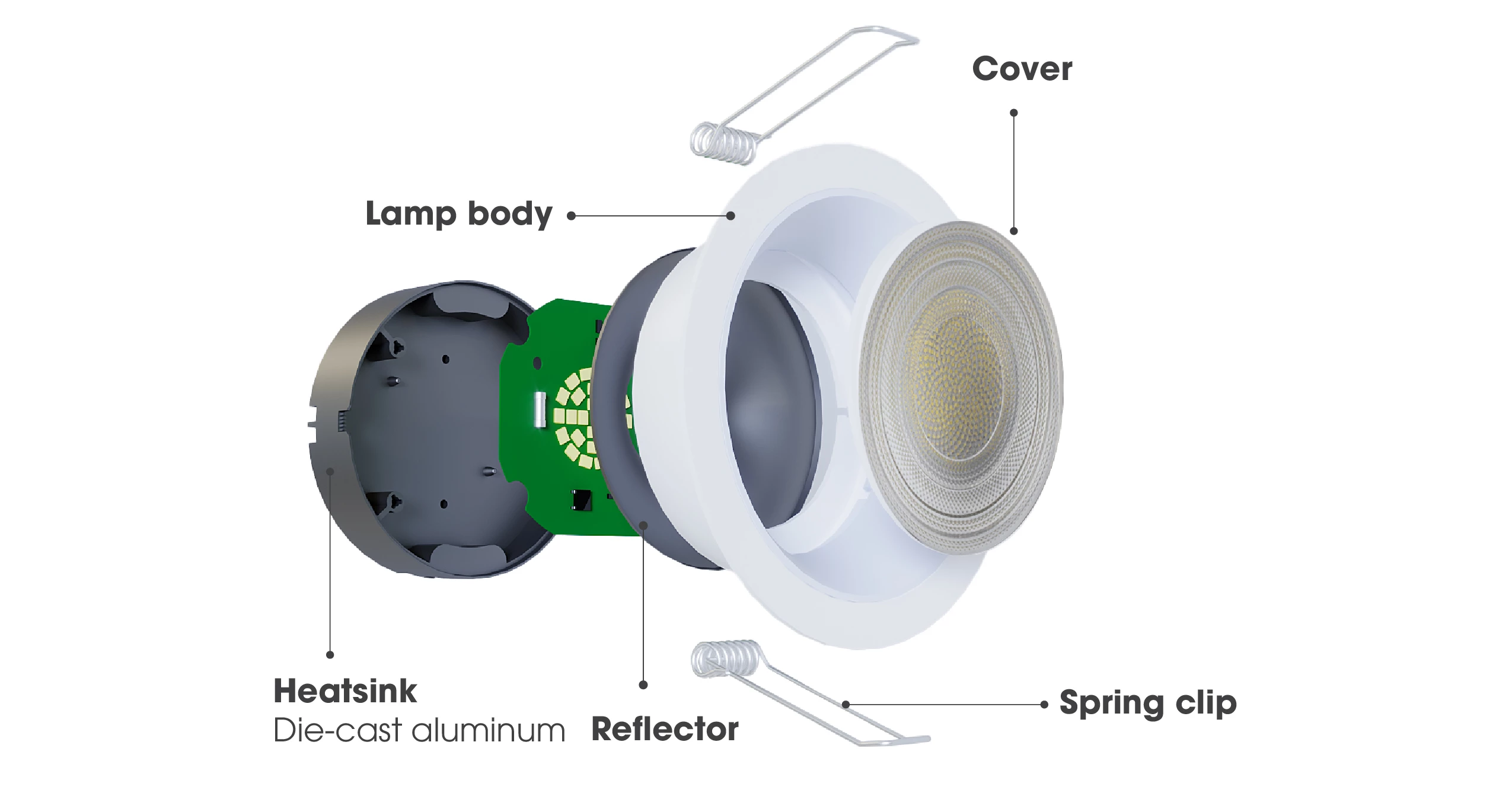

PRODUCT DETAILS
PRODUCT SPECIFICATIONS

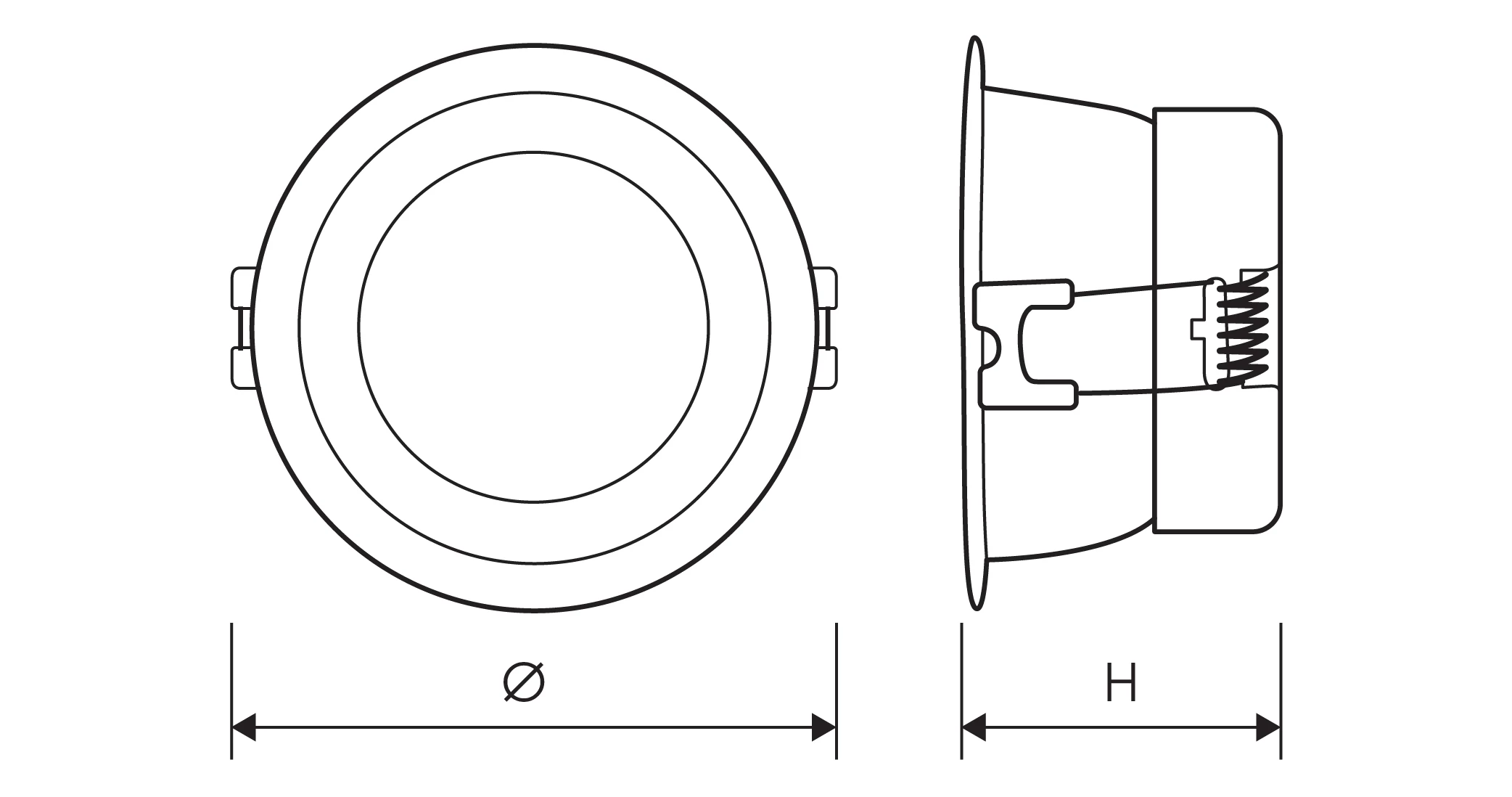

Model
Dimension
ØxH (mm)
Power
(W)
Voltage (V)
Power factor
Luminous flux
(lm)
Luminous efficacy
(lm/W)
CCT (K)
CRI (Ra)
Beam angle (°)
Cut out Øc
(mm)
Lifespan
(hrs)
AT60 90/8W
86x46
8
120/220÷240/100÷277
0.5/0.9
800
100
3000/4000/6500
80
60
76
30,000
AT62 76/10W
86x46
10
120/220÷240/100÷277
0.5/0.9
1000
100
3000/4000/6500
80
60
76
30,000
AT62 90/12W
110x63
12
120/220÷240/100÷277
0.5/0.9
1200
100
3000/4000/6500
80
75
90
30,000
Capacity:
11.2 million pieces per year
Customizable:
Power, Voltage (120/220÷240/100÷277), PF (05/09), lm/W, CCT (3000/4000/5000/6500K), CRI (80/Sunlike), Driver (non isolation/isolation/Dim-Triac), lifespan, etc.

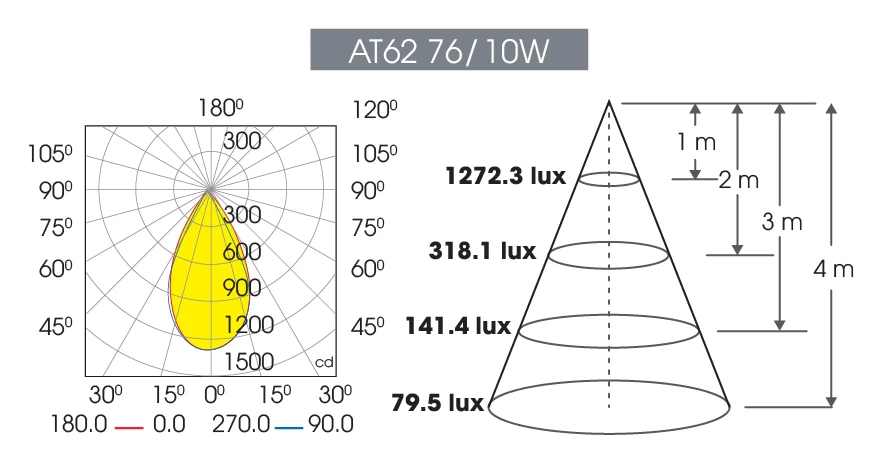

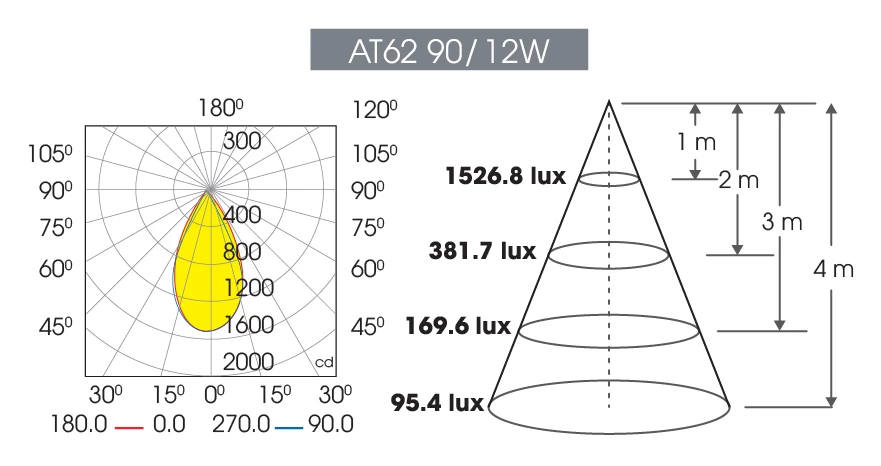

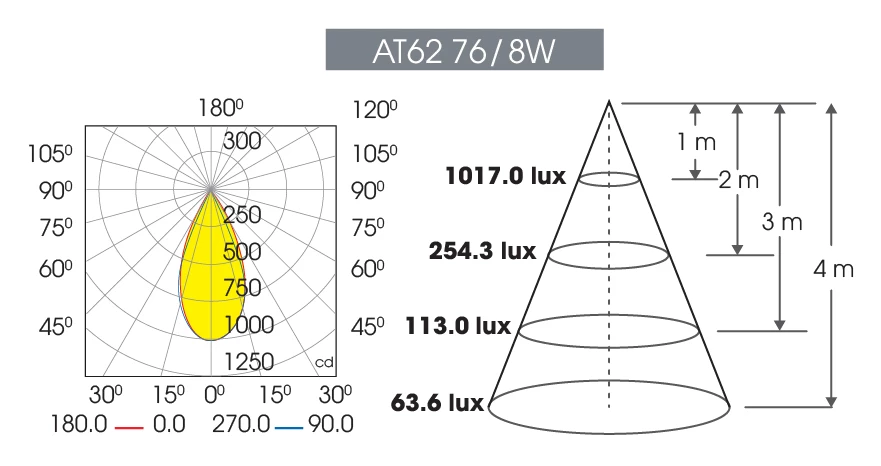

LUMINOUS INTENSITY DISTRIBUTION

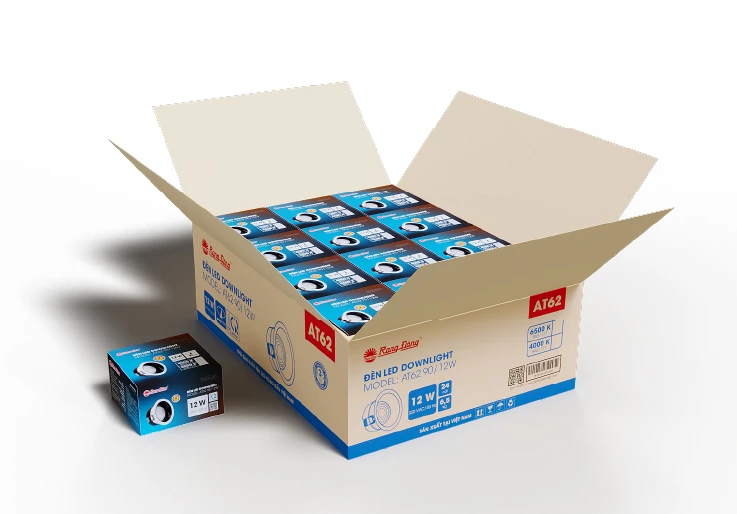

PACKING AND TRANSPORTATION
Type of lamps
Quantity in master box (pcs)
Estimated quantity/20'DC (pcs)
Estimated quantity/40'HC (pcs)
AT62 76/8W & 10W
24
47 736
109 608
AT62 90/12W
24
26 376
60 576
Customizable according to customer’s request
Exported markets: South Korea, EU, etc.
CE
DOWNLOAD
KC
DOWNLOAD
RoHS
DOWNLOAD

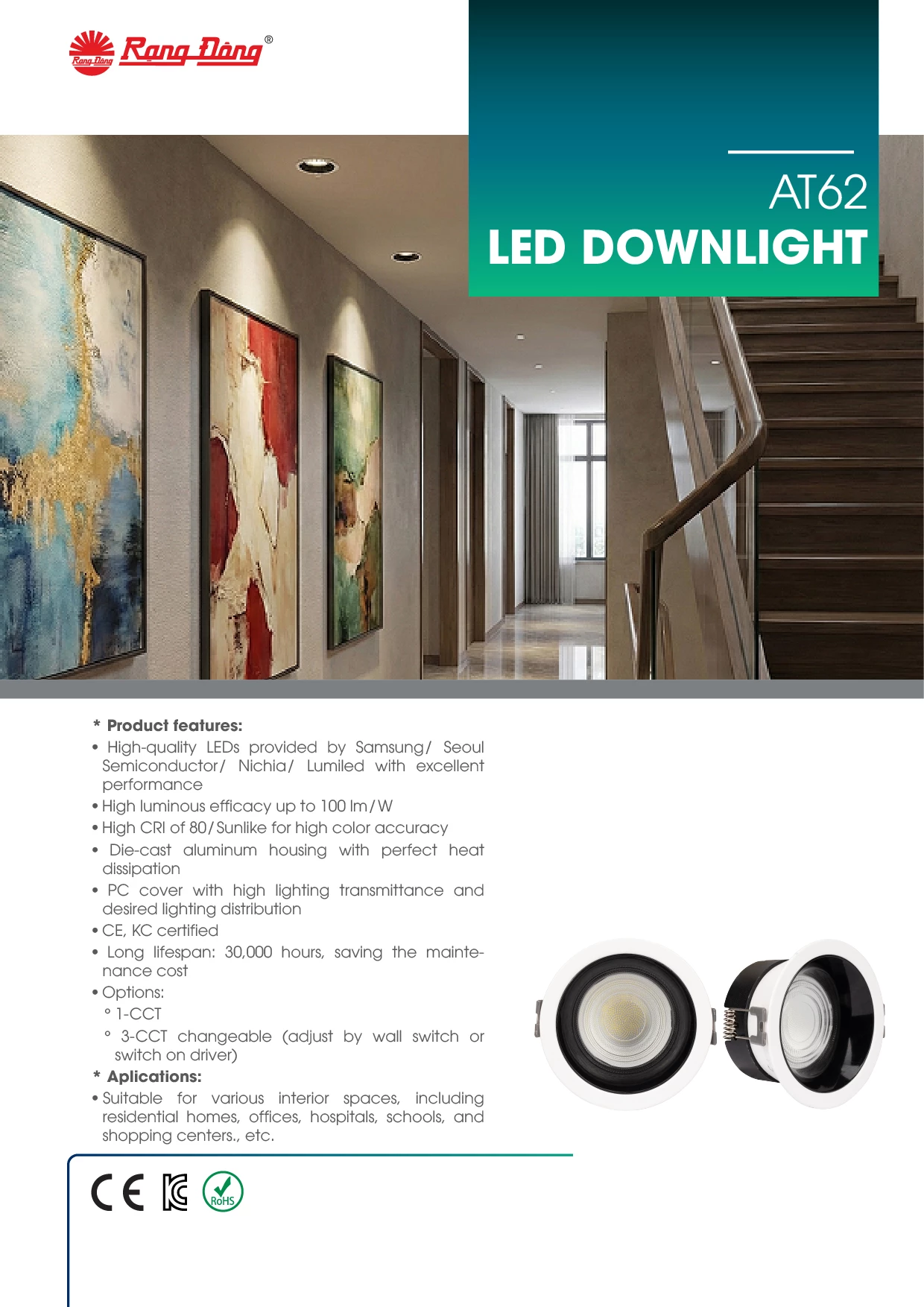

AT62 LED DOWNLIGHT
DOWNLOAD
